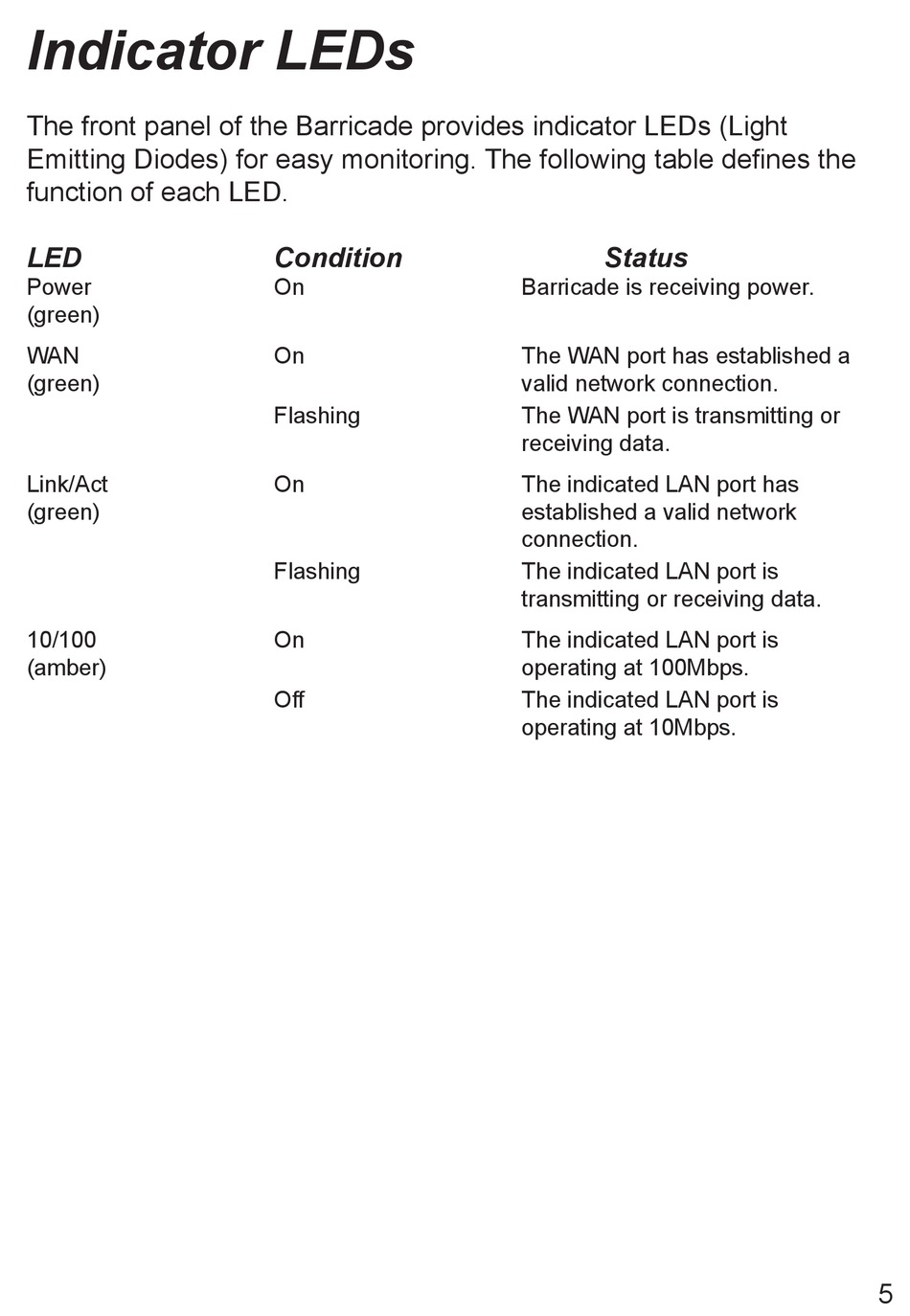

Indicator LEDs
The front panel of the Barricade provides indicator LEDs (Light
Emitting Diodes) for easy monitoring. The following table denes the
function of each LED.
LED
Power
(green)
WAN
(green)
Link/Act
(green)
10/100
(amber)
Condition
On
On
Flashing
On
Flashing
On
Off
Status
Barricade is receiving power.
The WAN port has established a
valid network connection.
The WAN port is transmitting or
receiving data.
The indicated LAN port has
established a valid network
connection.
The indicated LAN port is
transmitting or receiving data.
The indicated LAN port is
operating at 100Mbps.
The indicated LAN port is
operating at 10Mbps.
