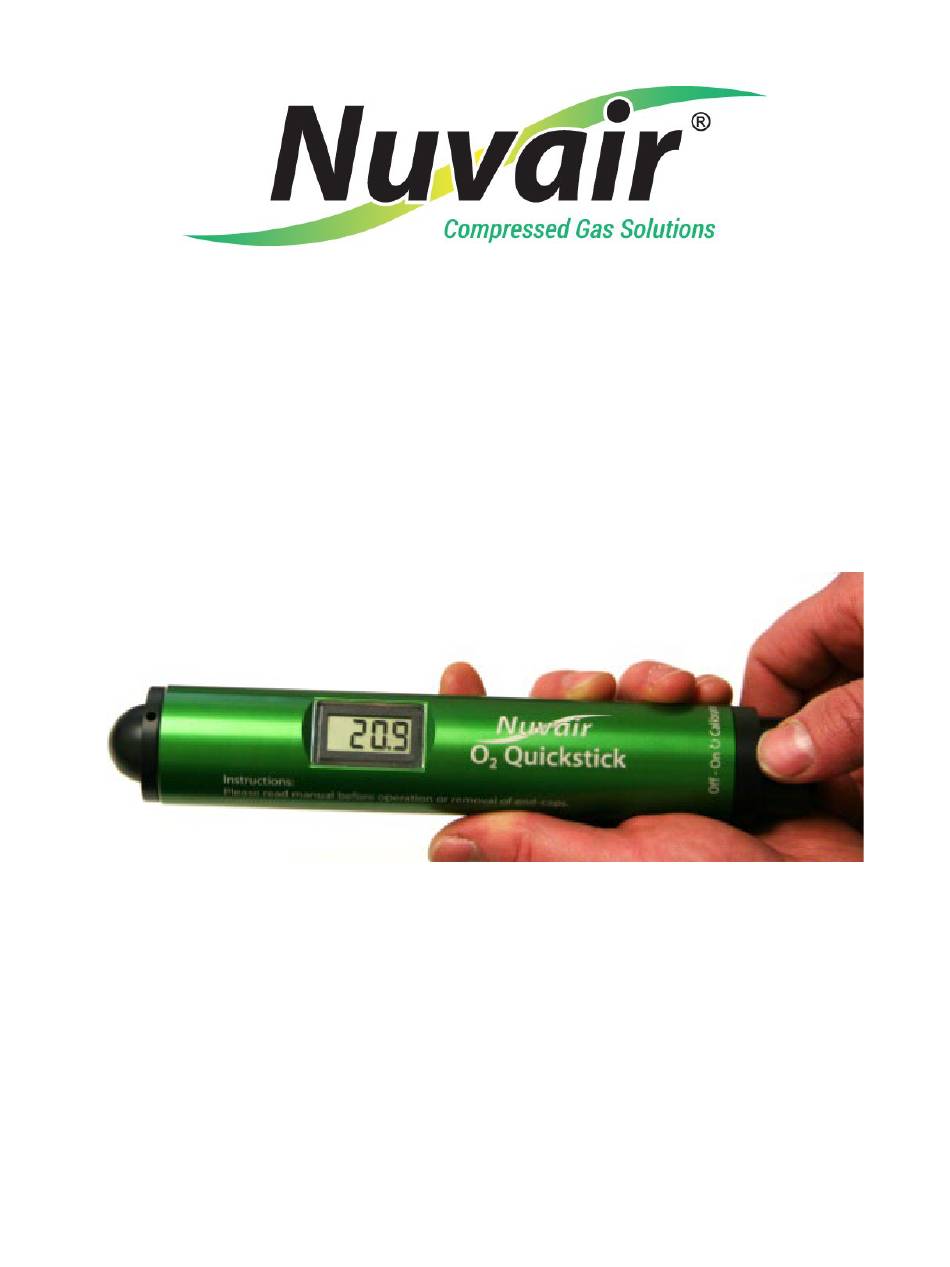

- Page 1 Quickstick Oxygen Analyzer User Manual Quickstick Oxygen Analyzer SKU 9456 Nuvair Page 1 www.Nuvair.com...
- Page 2 Nuvair will make every effort to update manuals as parts and functional aspects change. However, the look or location of components on your product may differ from those in this manual if improvements have been made that do not affect functionality or operational procedures.
- Page 3 Inaccurate gas analysis can lead to serious personal injury or death. The Nuvair O Quickstick oxygen analyzer is designed to measure oxygen levels directly from high- pressure cylinders in the range 0.1-100.0% oxygen. No sampling hoses or accessories are necessary.
- Page 4 Analysis of gases containing greater than 50% oxygen requiring calibration with pure oxygen • or certified calibration gas Nuvair Page 4 www.Nuvair.com...
-
Page 5: Operation
Troubleshooting section or use Quickstick in use. another analyzer. 4.5. Note that after a few seconds of the gas flow being stopped the reading will begin to change towards the level in the surrounding air of 20.9% O Nuvair Page 5 www.Nuvair.com... - Page 6 Quickstick warranty is 12 months. Additional warranties apply. Please see Section 11 for full warranty information. 5.3. Should you have operational issues at any time, please contact Nuvair technical support at +1.805.815.4044 for assistance and trouble shooting. 5.4. To clean the O Quickstick, use a damp soft cloth.
- Page 7 Be careful not to pull too hard, as you can separate the wires from the end cap and damage the Quickstick. Should you separate the wires from the end cap, return the Quickstick to Nuvair for repair. DO NOT ATTEMPT THIS REPAIR ON YOUR OWN!
-
Page 8: Troubleshooting
Return to dealer Will not calibrate Sensor faulty Change sensor Sensor not in air Check flow adapter High altitude Use altitude calibration procedure Reading drifts Rapid temperature change Stabilize temperature & recalibrate *Contact Nuvair for more information. Nuvair Page 8 www.Nuvair.com... - Page 9 Once you have calibrated the analyzer for temperature and humidity using the, your readings • for gas analysis should be correct with no further adjustment. Recalibrate analyzer for any changes in temperature or humidity of the ambient environment • or the gas being analyzed. Nuvair Page 9 www.Nuvair.com...
-
Page 10: Specifications
Quickstick sensor is warranted according to the pro-rated terms as set forth below. This warranty is non-transferable. Nuvair will, at its discretion and according to the terms as set forth within, replace or repair any materials which fail under normal use and service and do not exhibit any signs of improper maintenance, misuse, accident, alteration, weather damage, tampering, or use for any other than the intended purpose. - Page 11 Nuvair has been advised of the possibility thereof. Nuvair makes no other warranty or representation of any kind, except that of title, and all other warranties, express or implied, including warranties of merchantability and fitness for a particular purpose, are hereby expressly disclaimed.
- Page 12 Quickstick Oxygen Analyzer Nuvair Phone: +1.805.815.4044 Fax +1.805.486.0900 1600 Beacon Place Oxnard, California 93033 USA info@nuvair.com www.nuvair.com Rev. 02.2025 Nuvair Page 12 www.Nuvair.com...
