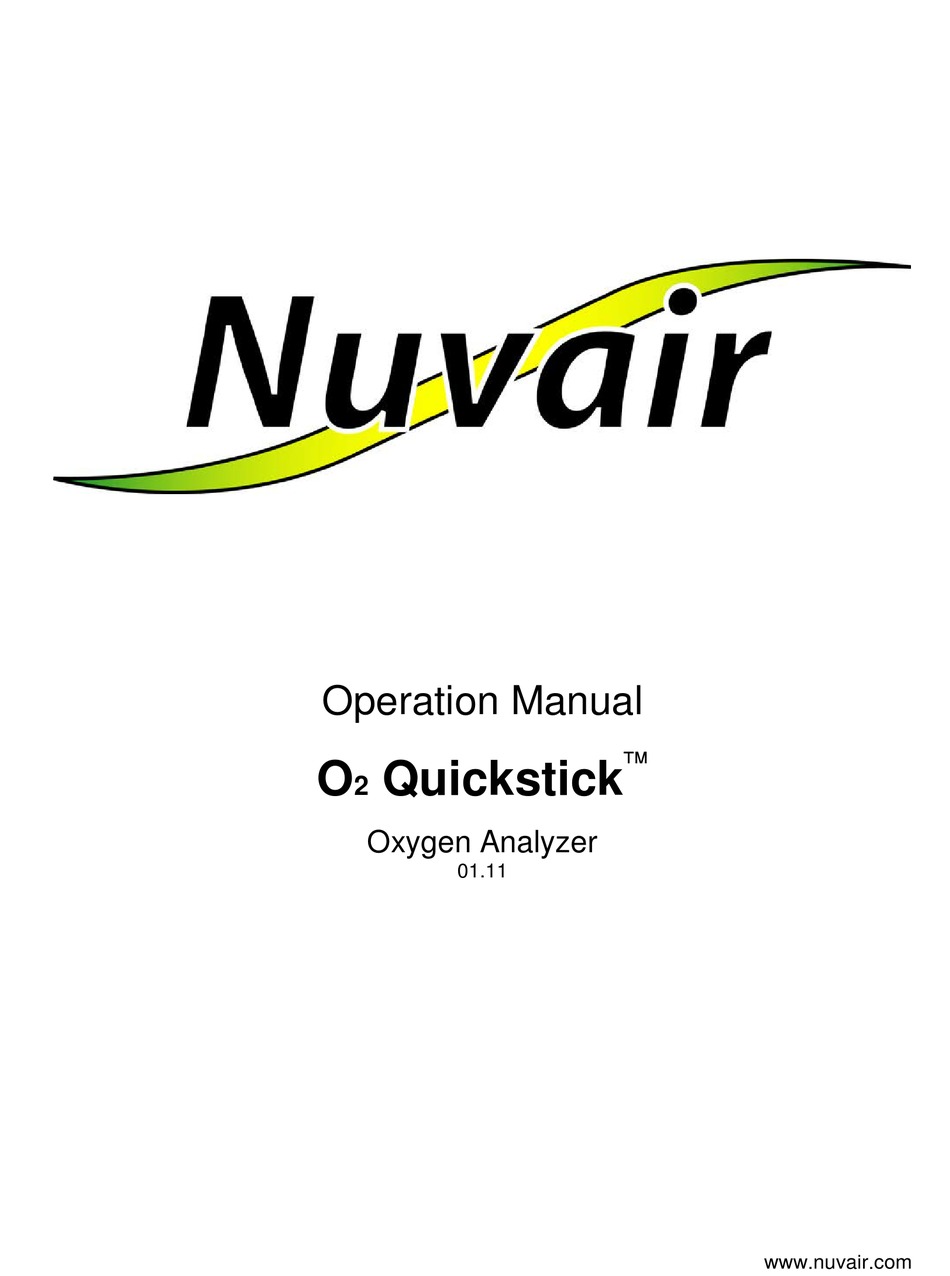

- Page 1 Operation Manual Quickstick Oxygen Analyzer 01.11 www.nuvair.com...
- Page 2 Every effort was made to ensure the accuracy of the information contained within this manual; however, we retain the right to modify its contents without notice. If you have problems or questions after reading the Nuvair at 1-805-815-4044 for information. manual, stop and call...
- Page 3 Never depend on a single Analyzer during both gas production and delivery. If the Analyzer readings do not agree, both units must be recalibrated. Inaccurate gas analysis can lead to serious personal injury or death. NUVAIR Page Quickstick Oxygen Analyzer Operation Manual...
- Page 4 Quickstick Oxygen Analyzer The Nuvair O Quickstick Oxygen Analyzer is designed to measure oxygen levels directly from high-pressure cylinders in the range 0.1-100.0% O . No sampling hoses or accessories are necessary. The O Quickstick is designed as a quick check device to test and verify that previous readings with another analyzer are correct.
- Page 5 3.4. Expose the analyzer to fresh air for two minutes or until the reading on the display has stabilized. Adjust the calibration screw with the calibrator trim tool until the display reads 20.9% (see Section 4). Sensor End Calibrator Trim Tool Battery End Calibrator Trim Tool Placement NUVAIR Page Quickstick Oxygen Analyzer Operation Manual...
- Page 6 Quickstick. Should you separate the wires from the end cap return the Quickstick to Nuvair for repair, DO NOT ATTEMPT THIS REPAIR ON YOUR OWN. Be sure to dispose of spent, leaking, or damaged Batteries properly, according to local regulations.
- Page 7 15 minutes. The stinging or slippery sensation is an indication of a leaking Sensor. The Potassium Hydroxide chemical contained in the Sensor can cause severe injury or death. Seek immediate medical attention if eye contact is made or skin stinging persists. NUVAIR Page Quickstick Oxygen Analyzer Operation Manual...
-
Page 8: Troubleshooting
Will not calibrate Sensor faulty Change sensor Sensor not in air Check flow adapter High altitude Use altitude calibration procedure Reading drifts Rapid temperature change Stabilize temperature & recalibrate *Contact Nuvair for more information. NUVAIR Page Quickstick Oxygen Analyzer Operation Manual... - Page 9 Re-calibrate Analyzer for any changes in temperature or humidity of the ambient environment or the gas being analyzed. Note that the calibration correction value is never used when the temperature and humidity conditions of the gas being measured are the same as the conditions during calibration. NUVAIR Page Quickstick Oxygen Analyzer Operation Manual...
- Page 10 Less Than 6 Seconds to 90% of Final Value Operating Temperature: 32-104°F (0-40°C) Storage Temperature: 32-122°F (0-50°C) Pressure: Sensitive to Partial Pressure Humidity: 0-99% RH (Non-Condensing) Note: All specifications are at ambient / sea level, 25°C NUVAIR Page Quickstick Oxygen Analyzer Operation Manual...
- Page 11 This warranty is not transferable. NUVAIR will, at it’s discretion and according to the terms as set forth within, replace or repair any materials which fail under normal use and service and do not exhibit any signs of improper maintenance, misuse, accident, alteration, weather damage, tampering, or use for any other than the intended purpose.
- Page 12 Quickstick Oxygen Analyzer Nuvair™ 2011 All Rights Reserved Phone: 1-805-815-4044 Fax: 1-805-815-4196 2949 West 5th Street Oxnard, CA 93030 Email : info@nuvair.com Web : www.nuvair.com Revision 0111...
