Barska 30070 Instruction Manual

225 power starwatcher telescope

Advertisement

Quick Links

30070 - 225 Power
Starwatcher Telescope
©2017 BARSKA® | Pomona, CA 91767 USA
BC527
www.barska.com
4/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barska 30070

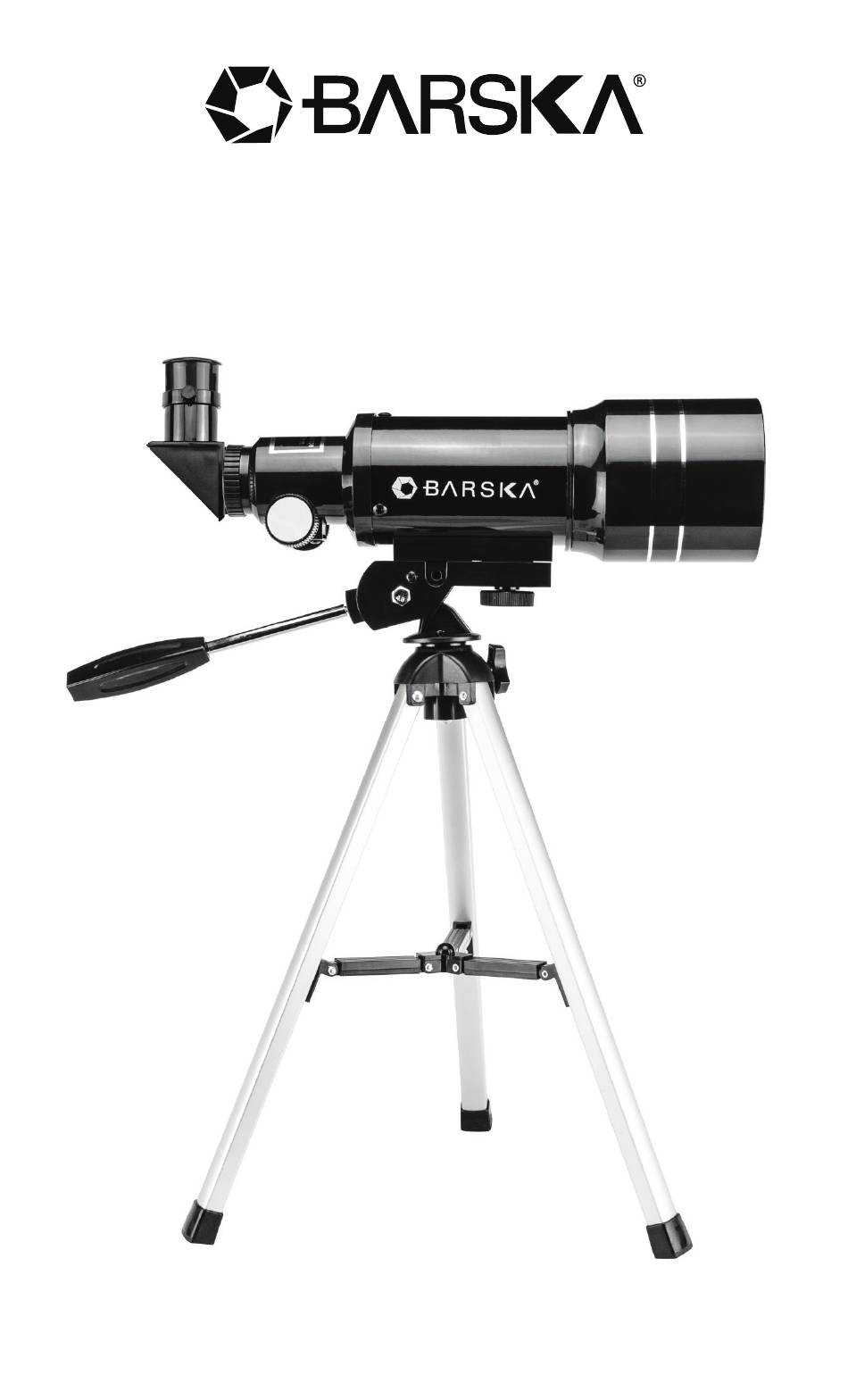

  • Page 1 30070 - 225 Power Starwatcher Telescope ©2017 BARSKA® | Pomona, CA 91767 USA BC527 www.barska.com 4/17...
  • Page 2 NOTES ON VIEWING WARNING CAUTION: DO NOT LOOK DIRECTLY AT THE SUN VIEWING THE SUN OR ANY LIGHT SOURCE WITH THIS OPTICAL DEVICE CAN CAUSE PERMANENT EYE DAMAGE. Looking at or near the sun will cause instant and irreversible damage to your eye(s).
  • Page 3 Parts of the Telescope A. Telescope Optical Tube F. Mounting Plate and Screw B. Objective Lens G. Mounting Adjustment Handle C. Eyepiece - 2 Included H. Tripod Legs D. Diagonal I. Horizontal Motion Lock E. Focus Knob...
  • Page 4 Assembly Unpack and lay out all of the parts in a large, clear area where you will have room to assemble the pieces. Initial Setup 1. Fully extend the legs of the tripod apart. 2. Under the plate of the tripod head is locking screw for the tripod head. See image above.
  • Page 5 Eyepiece Included with the telescope are H4 mm and H20 mm eyepieces. 1. Select an eyepiece, place it into the diagonal. Lock the eyepiece it into place with the thumb screw. See image above. Using The Telescope With the telescope assembled as described above, you are ready to begin observations.
  • Page 6 Image Orientation When observing with a diagonal, the image will be right side up Magnification The magnification (or power) of a telescope varies depending upon the focal length of the eyepiece being used and the focal length of the telescope. The low power (H20) eyepiece is the best eyepiece to use for the initial finding and centering of an object.
  • Page 7: Care And Cleaning

    Barlow Lens The included 3x Barlow lens triples the magnifying power of each eyepiece. The highest magnification power of the Barlow lens should only be used for large and bright objects such as the moon and the brightest planets, as well as for nights with optimal observation conditions.
  • Page 8: Year Limited Warranty

    In the event of a defect within 30 days, the consumer must return the defective unit to the BARSKA dealer (the place of purchase) at his/her own expense. Beyond 30 days, BARSKA products should be sent to the following address for warranty repairs.
