Barska Starwatcher Quick Setup

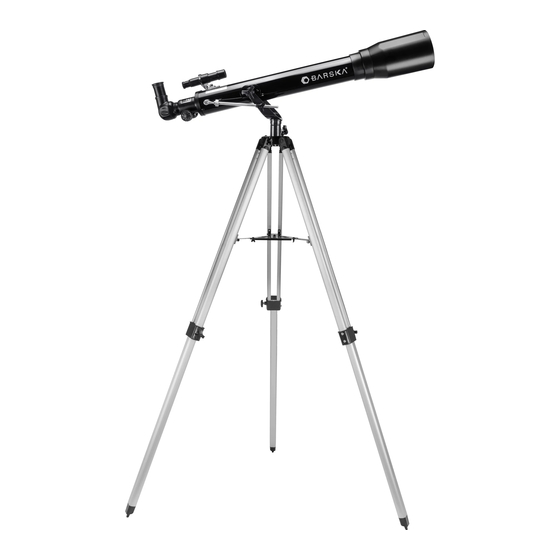

Starwatcher Telescope Quick Set Up - 70070, 525 Power

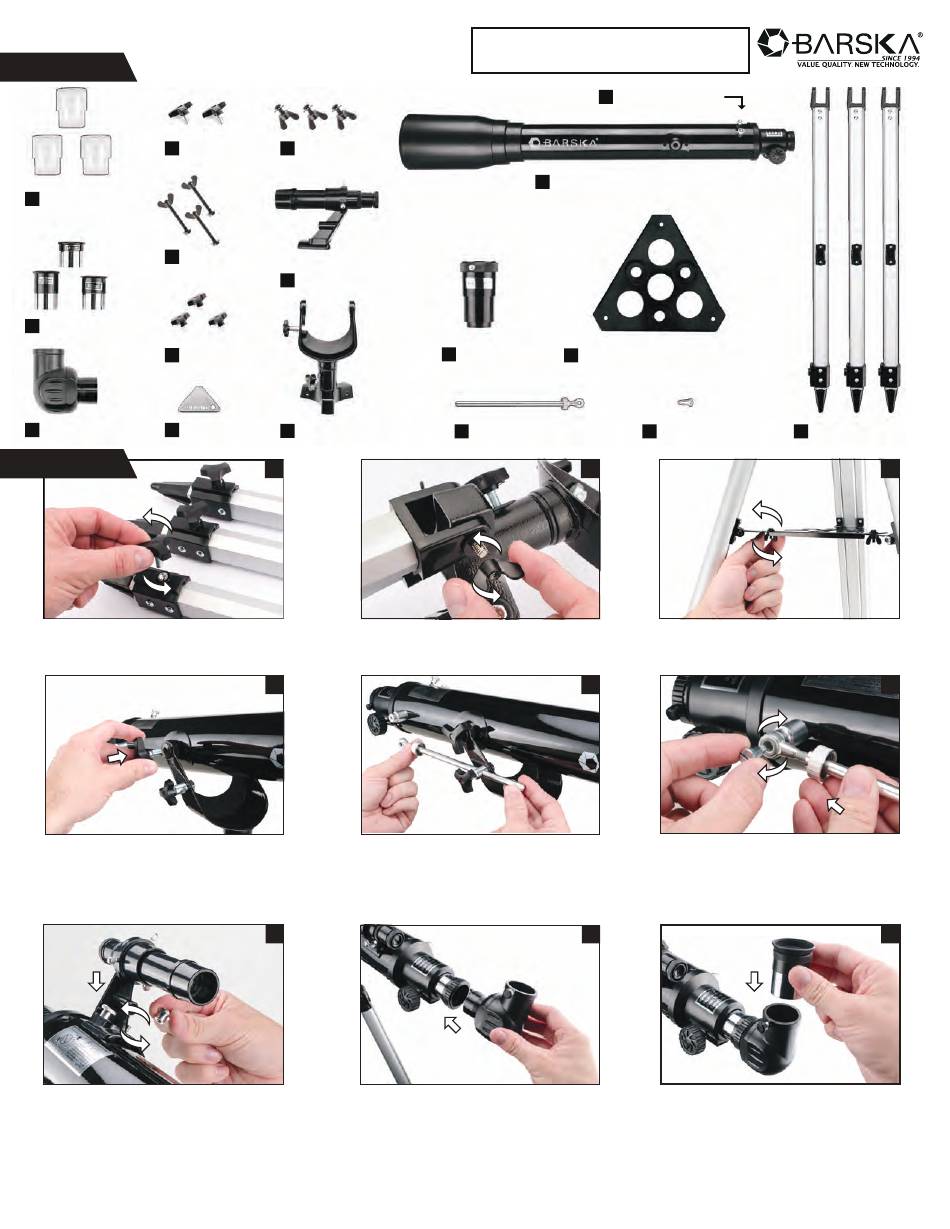

Parts Included
D Two Optical
Tube Screws
A Three Eyepiece
Containers
E Three Leg to
Yolk Screws
B Three Eyepieces
F Three Tripod
Leg Screws
C Diagonal G Screwdriver
Assembly
Attach (F) tripod leg screw to the extension
base on each of the (Q) tripod legs.
Line up the (L) main telescope optical tube
with the side mount holes on the (J) yolk
mount and secure in place using the two (D)
optical tube screws.
Remove the (K) knurled nuts and attach the
(I) finderscope to (L) main telescope optical
tube with the battery compartment and lens
facing the front of the telescope. Secure by
tightening the (K) knurled nuts.
BC528
H Three Tripod
Screws
I Finderscope
M
J Yolk Mount
1
Attach each (Q) tripod leg to the (J) yolk
mount using the (E) leg to yolk screw sets.
4
Insert the (O) slow motion control rod into
the hole on the (J) yolk mount.
7
Insert the barrel of the (C) diagonal into the
focuser tube on the (L) main telescope
optical tube and tighten the
set screw.
© 2017 BARSKA®
Pomona, CA 91767 | (t) 888.666.6769 | (f) 909.445.8169 | www.barska.com
CAUTION: DO NOT LOOK DIRECTLY AT THE SUN.
VIEWING THE SUN OR ANY LIGHT SOURCE WITH THIS
OPTICAL DEVICE CAN CAUSE PERMANENT EYE DAMAGE.
K Two
L Main Telescope Optical Tube
N Accessory Tray / Center Leg Brace
Barlow Lens
O Slow Motion Control Rod
2
5
8
Knurled Nuts
Q Three Tripod Legs
P Control Rod Screw
Use the (H) three tripod screws on the (N)
center leg brace to connect each of the center
leg braces to the three (Q) tripod legs.
Secure the (O) slow motion control rod with
the included (P) control rod screw by
tightening it with the included (G)
screwdriver.
Choose one (B) eyepiece and insert the
chrome barrel of the eyepiece into the (C)
diagonal and tighten the set screw.
See reverse side for additional information.
3
6
9
4/17
