Summary of Contents for senses akustik ZEST

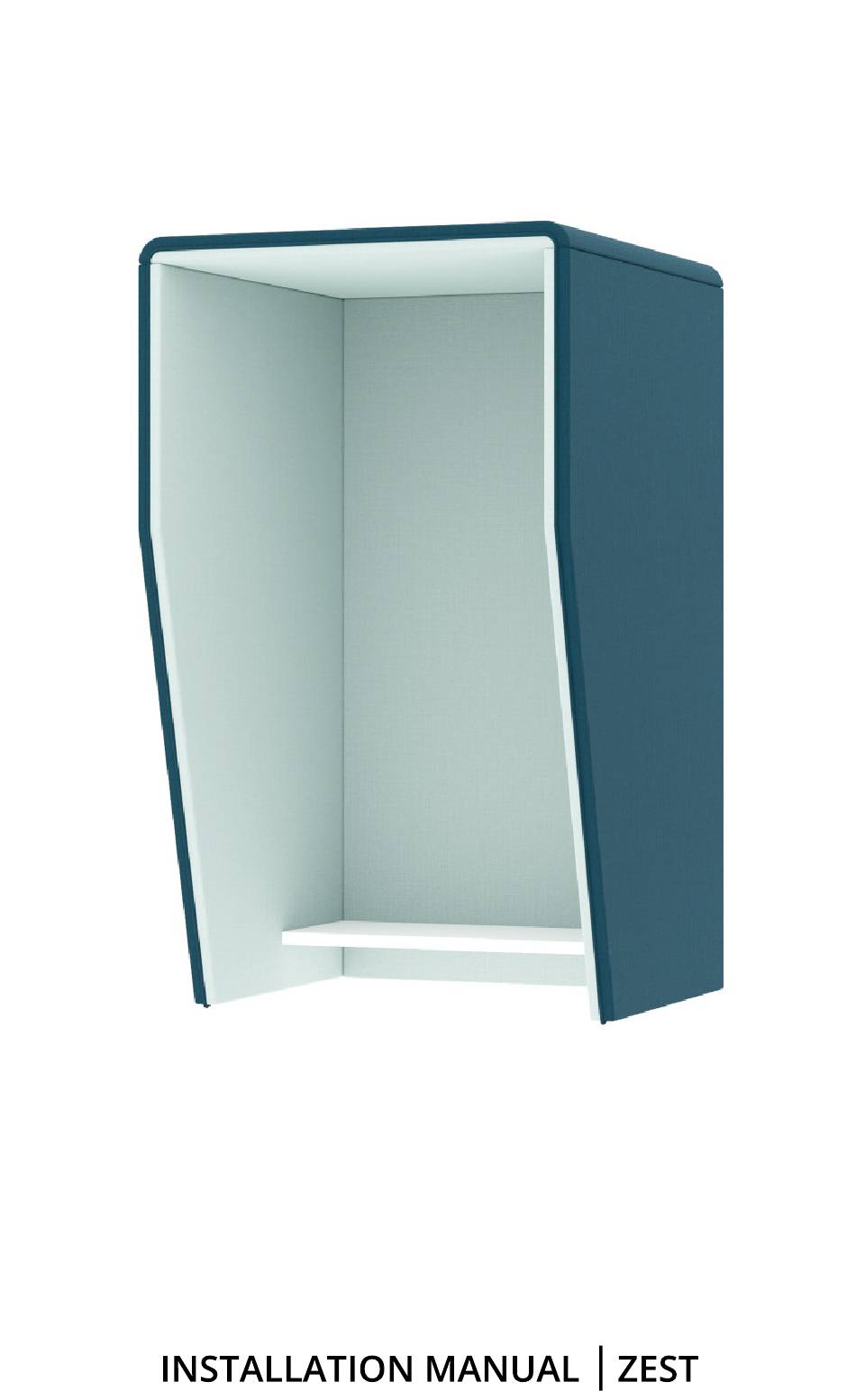

- Page 1 INSTALLATION Man al ZEST...
- Page 2 tight secure. Senses Akus ik | Installation manual ZEST...
- Page 3 Step A: Apply the mini fix kit to the bracket areas on all module elevations. Step B: Attach the desk to the centre wall of the booth module using the mini fix system kit. Senses Akustik | Installation manual ZEST...
- Page 4 S ep C: Attach the side elevation wall to the centre wall with mini fix and dowels. S ep D: Close-up view representing mini fix fixations on respective elevations. Senses Akus ik | Installation manual ZEST...
- Page 5 S ep E: Mount the desk with the side elevations and fix the mini fix systems with a screwdriver. S ep F: Apply the same fixing on the adjacent right wall to the centre wall with mini fix and dowels. Senses Akus ik | Installation manual ZEST...
- Page 6 Con ’d.. S ep G: Close-up view for fixing mini fix. Senses Akus ik | Installation manual ZEST...
- Page 7 S ep H: Apply the top panel with dowels to the side wall and centre panels. S ep I: Attach the railing kit to the back side of the centre wall to mount the booth module on the wall. Senses Akus ik | Installation manual ZEST...
- Page 8 S ep J: Measure and mark the distance on the wall and fix the railing fixture as per the attachment distance of the booth module's railing kit. S ep K: Mount the Express hood on the railing kit already attached to the wall. Senses Akus ik | Installation manual ZEST...
- Page 9 View the final product after successfully executing all the steps. Senses Akus ik | Installation manual ZEST...
- Page 10 These instructions are intended to help you take care of your product and maintain its appearance and function over time. However, individual results may vary depending on a variety of factors, including usage patterns and environmental conditions. Senses Akustik | Installation manual ZEST...
- Page 11 info@sensesakustik.co www.sensesakustik.co...
