Tigo TS4-X Series Quick Start Manual

WARNING – THIS PHOTOVOLTAIC RAPID SHUTDOWN
EQUIPMENT (PVRSE) DOES NOT PERFORM ALL OF THE
FUNCTIONS OF A COMPLETE PHOTOVOLTAIC RAPID
SHUTDOWN SYSTEM (PVRSS). THIS PVRSE MUST BE
INSTALLED WITH OTHER EQUIPMENT TO FORM A COMPLETE
PVRSS THAT MEETS THE REQUIREMENTS OF NEC (NFPA 70)
SECTION 690.12 FOR CONTROLLED CONDUCTORS OUTSIDE
THE ARRAY. OTHER EQUIPMENT INSTALLED IN OR ON THIS
PV SYSTEM MAY ADVERSELY AFFECT THE OPERATION OF
THE PVRSS. IT IS THE RESPONSIBILITY OF THE INSTALLER
TO ENSURE THAT THE COMPLETED PV SYSTEM MEETS THE
RAPID SHUT DOWN FUNCTIONAL REQUIREMENTS. THIS
EQUIPMENT MUST BE INSTALLED ACCORDING TO THE
MANUFACTURER'S INSTALLATION INSTRUCTIONS.
• All TS4 X versions ship in the ON state. Use caution when connecting the units to the modules.
• Disconnect TS4s from the array string before disconnecting from a solar module.
• Each TS4-X has an IP68 protection rating but only after properly installed. Do not leave TS4 connectors
exposed to the rain. Water intrusion may damage the TS4.

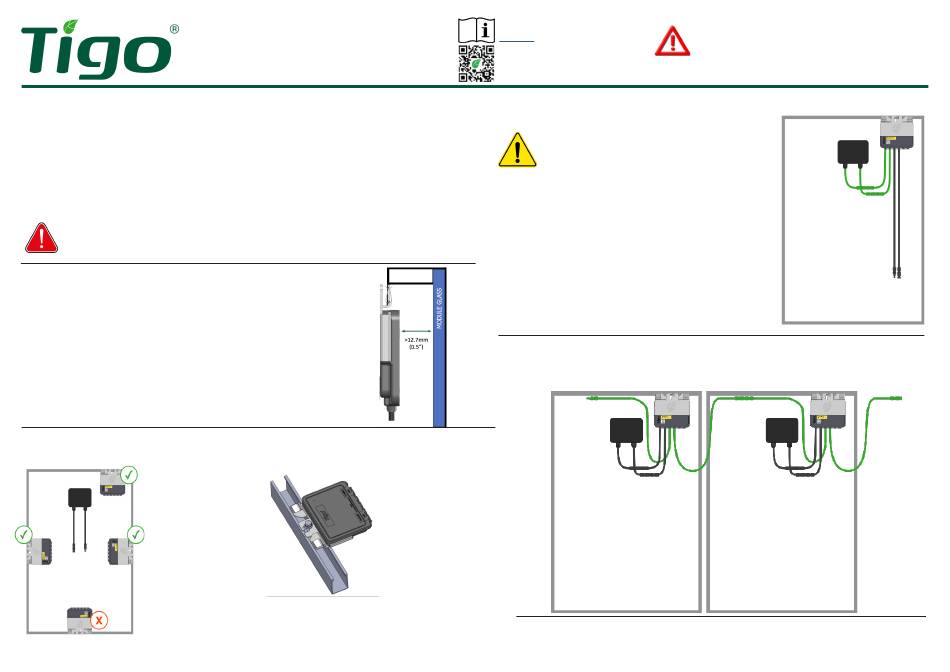

1. Determine Clearance
Ensure a minimum of 12.7 mm (0.5 in) between the TS4 and the module
backsheet or any obstructions such as ballasting materials or electrical
equipment.
Restricted airflow around the TS4 could result in abnormal behavior.
2. Mount
Frame Mounting
• Mount the TS4 to the
module frame using
the metal clips.
• Refer to the
diagram for
applicable mounting
orientations.
• Ensure the TS4 serial
sticker faces towards
you.
• Remove serial sticker
and place on site
layout sheet on the
last page. See Step 7.
TS4-X
Quick Start Guide
• All PVRSE components must be installed and maintained by qualified
personnel in accordance with applicable ANSI/NFPA 70 (North America)
and local electrical codes.
• Improper installation may cause damage not covered by the warranty.
• Do not install TS4s that are physically damaged or have damaged or
substandard wiring or connectors.
• Do not connect or disconnect TS4-Xs under load.
• TS4 PV array (DC) conductors are 12 AWG.
• Operating temperature range is -40 °C – 85 °C (-40 °F – 185 °F).
• Connectors from different manufacturers cannot be mated with each other.
• TS4-Xs must not be installed in readily accessible locations.
• Remove QR sticker from TS4-Xs and place on layout sheet.
• Storage temprature range -20 – 65 ° (-4 – 149 °F).
Rail Mounting
• Remove the serial
• Turn the TS4 so the
• Bolt the TS4-X directly
• DO NOT CONNECT
Download the latest
documentation with
important updates.
3. Connect Input Cables
CAUTION!
TS4-X are shipped in the ON state.
When connected to a module, full open circuit voltage
will flow through by default!
Always connect short input cables
before connecting long output cables
otherwise damage could occur.
4. Connect Output Cables
sticker and place on
layout sheet.
label is facing towards
the module backsheet.
to the PV rail with an
M8 bolt and torque to
10.2Nm.
THE TS4 TOGETHER
UNTIL STEP 4!
IMPORTANT SAFETY INFORMATION
LETHAL VOLTAGE MAY BE PRESENT
IN ANY PV INSTALLATION
SAVE THESE INSTRUCTIONS
Once
the TS4s are connected to a module, connect long output
leads to adjacent TS4s in the string.
*002-00097-00*
©20250115 Tigo Energy, Inc.
002-00097-00 Rev. 1.1
