Tigo TS4-X Installation Manual

Platform of flex mlpe
Hide thumbs Also See for TS4-X:
Table of Contents

Advertisement

Quick Links

Download this manual
TS4-X platform of Flex MLPE
Installation Manual
Visit the Tigo Energy
Help Center
for comprehensive videos, articles,
and other resources for all Tigo products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS4-X and is the answer not in the manual?

Questions and answers

Related Manuals for Tigo TS4-X

Summary of Contents for Tigo TS4-X

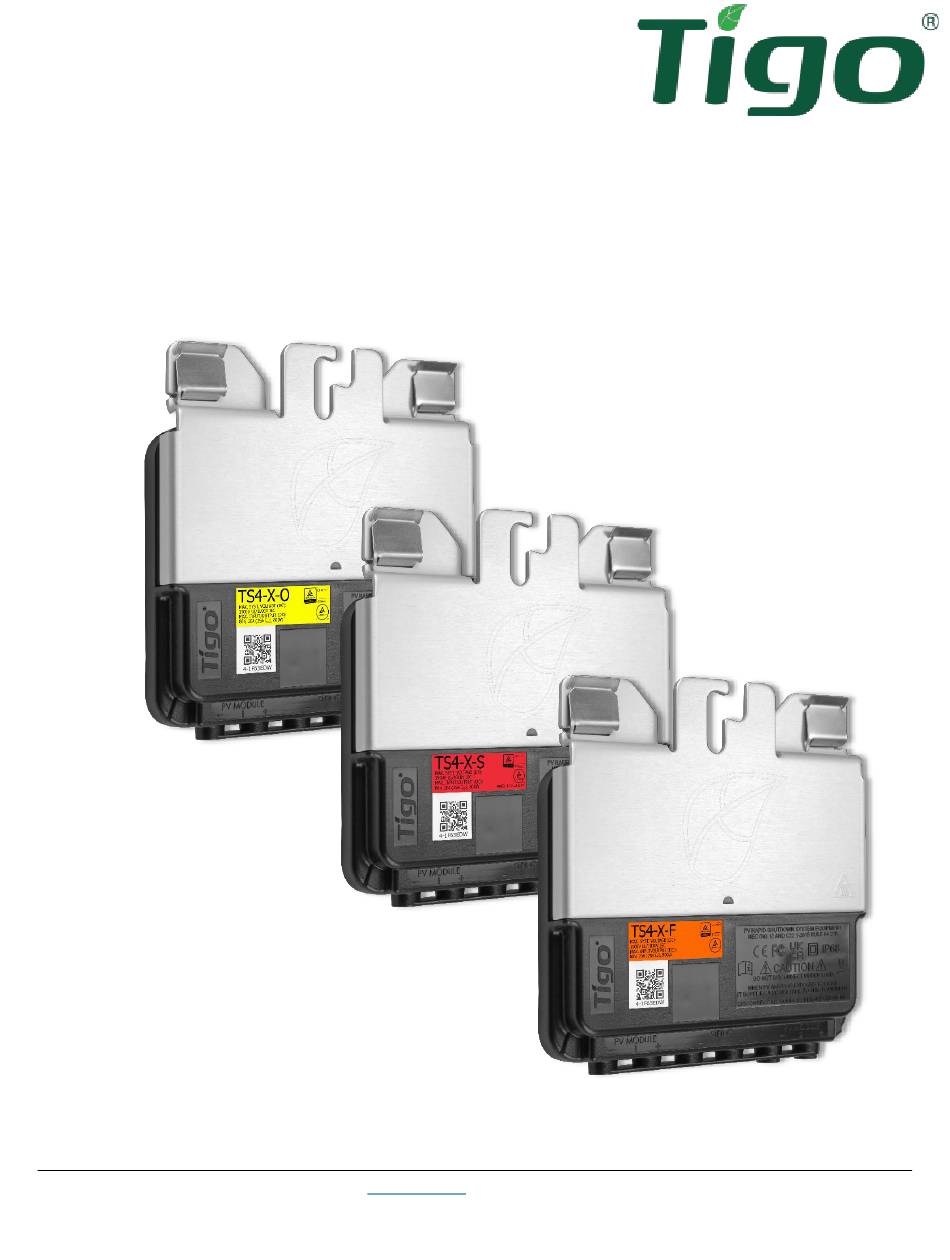

  • Page 1 TS4-X platform of Flex MLPE Installation Manual Visit the Tigo Energy Help Center for comprehensive videos, articles, and other resources for all Tigo products.

  • Page 2: Disclaimer Of Warranties And Limitation Of Liability

    ENTIRE OBLIGATION OF TIGO. THE CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF, OR MODIFY ANY CONTRACT BETWEEN, THE PARTIES. In no event will Tigo be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental, exemplary, reliance...

  • Page 3: Table Of Contents

    To install a TS4-X-O/S ......................15 Install the CCA ..........................17 Install Procedure ........................17 LED Status Indicators ....................... 18 Install the Tigo Access Point (TAP) ....................19 Install Procedure ........................19 Commissioning ..........................20 Create a New System ....................... 21 Enter Site Info .........................
  • Page 4 Contents Amplify a Signal with Two Cores .................... 47 Connect Signal Wiring ......................48 Check Status LEDs ........................49 Post an RSS Label ........................49 Commissioning and Operations ....................49 Commissioning Checklist ......................49 Energize RSS Transmitters ......................50 De-Energize RSS Transmitters ....................50 Testing and Troubleshooting ......................

  • Page 5: Overview

    Overview Overview Tigo TS4-X module level power electronics (MLPE) enable monitoring, rapid shutdown, and optimization of solar modules. TS4-X has 3 models with different feature sets: TS4-X-O (Optimization, Monitoring, Rapid Shutdown), TS4-X-S (Monitoring and Rapid Shutdown), and TS4-X-F (Rapid Shutdown).

  • Page 6: Outline

    Multi-factor Rapid Shutdown This structure should help in clearly presenting the information, making the manual easier to navigate and understand. Document Revision History Version Date Changes 20241107 Initial Release ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 7: Important Safety Information

    Electric Code (NEC) ANSI/NFPA 70 and/or local electrical codes. When the photovoltaic array is exposed to light, it supplies a DC voltage to the Tigo TS4 units and the output voltage may be as high as the PV module open circuit voltage (VOC) when connected to the module.
  • Page 8 Safety Do not connect or disconnect under load. Turning off the inverter and/or the Tigo products may not reduce this risk. Internal capacitors within the inverter can remain charged for several minutes after disconnecting all power sources. Verify capacitors have discharged by measuring voltage across inverter terminals prior to disconnecting wiring if service is required.
  • Page 9 électriques locaux. Lorsque le générateur photovoltaïque est exposé à la lumière, il fournit une tension continue aux unités Tigo TS4 et la tension de sortie peut être aussi élevée que la tension de circuit ouvert (VOC) du module PV lorsqu’il est connecté au module.
  • Page 10 Safety N’utilisez pas les unités Tigo TS4 si elles ont été physiquement endommagées. Vérifiez les câbles et les connecteurs existants, en vous assurant qu’ils sont en bon état et qu’ils sont appropriés. Ne faites pas fonctionner les unités Tigo TS4 avec un câblage ou des connecteurs endommagés ou de qualité...
  • Page 11 Safety Tigo equipment must be installed and maintained by licensed personnel in accordance with the National Electrical Code and ANSI/NFPA 70 wiring methods. In addition: • Components must operate within the technical specifications listed in their datasheets. Failure to follow instructions herein may cause equipment damage not covered by the warranty.

  • Page 12: Ts4-X-O/S Design

    CCA, which requires an internet connection. This setup is necessary for system monitoring, warranty eligibility, and code compliance. A CCA should control all TS4-X-O and TS4-X-S on all strings connected to a specific inverter or MPPT. Install the CCA near this inverter with access to AC power and the internet. Ethernet and Wi-Fi are built in.

  • Page 13: Tap Placement Requirements

    With mesh, the TS4-Xs automatically act as repeaters, relaying messages when required. For the signal to hop to another TS4-X, the TS4-Xs must not be more than 10m (33ft) apart. If there is a gap between arrays of modules, ensure the distance is within the 10-meter limit.

  • Page 14: Ts4-X-O/S Install

    12.7 mm (0.5 in) and TS4-X label faces away from the glass. If using frameless modules, bolt the TS4-X directly to the PV rail with M8 bolts and torque to 10.2Nm. No additional grounding is required.

  • Page 15: To Install A Ts4-X-O/S

    TS4-Xs. Failure to do so can damage the TS4-X units. 2. Attach the TS4-X to the top of the PV module frame using the silver clips with the cable glands facing down, or to the right or left at a 90-degree angle. Never install the TS4-X with the glad seals facing upward.
  • Page 16 TS4-X-O/S Install 3. Connect the shorter TS4-X input leads to the PV modules. 4. Connect the longer set of TS4-X output cables to the neighboring TS4-X to create a string. To disconnect a TS4-X: • Activate rapid shutdown by turning off the CCA and inverter or by using the designated PV rapid shutdown system (PVRSS) initiator.

  • Page 17: Install The Cca

    Install CCA Install the CCA A CCA and TAP enable monitoring and rapid shutdown for the TS4-X-O and -S. Install Procedure To install a CCA: 1. Mount the CCA within a NEMA-rated enclosure that is suitable for the site environment: indoors, minimum NEMA 1;...

  • Page 18: Led Status Indicators

    CCA cannot find all TS4-Xs or cannot connect to the Tigo server. Use the Tigo Energy Intelligence (EI) app (available in the App Store or Google Play) to troubleshoot CCA issues ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 |...

  • Page 19: Install The Tigo Access Point (Tap)

    Install TAP Install the Tigo Access Point (TAP) A TAP communicates wirelessly with TS4-X devices to gather monitoring data and enable rapid shutdown. The TAP communicates with a CCA via a ferruled 4-wire communication cable such as shielded RS-485. Refer to this Help Center article...

  • Page 20: Commissioning

    Scan this QR code to download the app. To run the Tigo EI app and commission the system, carefully complete all the following steps. If you want help, contact Tigo support within the app or via support@tigoenergy.com.

  • Page 21: Create A New System

    Create a New System Create a New System Before creating a new System, install and open the Tigo Energy Intelligence App on your cell or tablet. For full installation instructions, see Install Tigo Energy Intelligence (EI) App. 1. Start a new system build by pressing the + symbol (top right) 2.
  • Page 22 Create a New System 3. Location Access Granted - Press NEXT button (bottom) Note: To service or monitor an existing system, simply press any system (in the list). ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 23: Enter Site Info

    Press Planned Turn on Date to select date Press Advanced Options arrow to set any other parameters Select NEXT 2. Press CONFIRM to confirm System Address or press CANCEL to enter a new address. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 24 3. Press the CREATE -> button (bottom) to confirm 4. If System Info is valid, a green checkmark √ will appear Press System Info to confirm accuracy or make corrections ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 25: Select Equipment

    In this section, you will be adding and assigning the new CCA, Strings, PV Modules, and Inverters to the System. Add Cloud Connect Advanced (CCA): 1. Press Select Equipment ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 26 Enter Site Info 2. Press the green bubble to add equipment 3. Select Add to enter the new CCA information ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 27 Enter Number of TAPs for system Press ADD button (bottom) Note: When using the SCAN function, select Allow to let the Tigo app access the device's camera. Position the device camera, so that the sticker fills the center screen (on red scan line).

  • Page 28: Important Notes

    Number of TAPs: Accuracy is important! If the Number of TAPs is incorrect, the Discovery will • not proceed. Entry of Serial Numbers for the TAPs is not needed, as the TAPs automatically communicate (via wiring) with the CCA. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 29: Add Inverters & Pv Modules

    Add Inverters & PV Modules Add Inverters & PV Modules 1. Select the green bubble and choose Add 2. Choose Inverter and PV Modules ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 30 Add the Number of Strings (associated per MPPT) and how many Panels per String (*check Uneven Strings box if length or number of Panels per parallel strings is not equal) Press SAVE button (bottom) to return to System Equipment ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 31 Enter the Name and press SAVE when complete. • Note: Newly added equipment listings will be private to this system (only), until they have been verified by Tigo Staff. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 32: Configure Layout

    My System. The Select Equipment option will now show a green checkmark √. 1. Select Configure Layout 2. Layout shows an empty grid with a Toolbox (top) and an Equipment Selector (bottom) ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 33 When placing PV modules: the Tigo EI App places items in a linear fashion. After you place Module A1, the A2 Module will automatically be next (when pressing on the grid). Do this until all the A string modules are placed, and then the B String modules will automatically be the next available item(s).
  • Page 34 An accurate site map enables understanding of shading effects on production and energy recovery. This also assists future maintenance activities requiring accurate physical location of Tigo MLPE's. After all the PV modules have been placed, the next steps involve entering (or scanning) the serial numbers for all the Tigo MLPE units on the system.
  • Page 35 Entry Field at the bottom of the page. Select Module Entry Field (bottom) to type the serial number or press the Serial button to open the camera and scan the MLPE's label. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 36 After a QR code is entered (or scanned), the App will automatically proceed to the next PV Module in the string. You may change or delete the QR code by pressing on the desired PV Module and entering a new serial or selecting the red trash icon ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 37 (upper left corner) to return to My System. When complete, Configure Layout will show a Checkmark √. This completes the Create and Edit System step of the commissioning process. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 38: Ts4-X-F Design

    TS4-X-F Design RSS Transmitter Design Considerations Tigo's Fire Safety products work with an RSS Transmitter to enable a code compliant Rapid shutdown system. When this transmitter is powered on, the RSS core will transduce a Power Line Communication (PLC) signal onto the string wiring. This is sometimes referred to as a "keep-alive signal,"...

  • Page 39: Large Commercial And Utility Site Considerations

    ✓ Large Commercial and Utility Site Considerations Tigo Pure Signal technology (PST) enables one group of up to ten RSS transmitters to synchronize their power-line communications (PLC) to up to 200 PV strings, ensuring reliable rapid shutdown using Tigo TS4s.

  • Page 40: Install Rss Transmitters

    Install RSS Transmitters One transmitter can support up to ten strings with one core and up to twenty strings with two cores. To take advantage of Tigo Pure Signal technology (PST), up to ten transmitters may be connected to form a group.

  • Page 41: Install An Enclosure

    Two optional Tigo outdoor kits include enclosure, RSS transmitter, power supply, and DIN rail components. RSS Transmitter Outdoor Kit for One Transmitter The Tigo RSS Transmitter Outdoor Kit for one transmitter for 120/240 V grid feeds includes: • One IP67/NEMA 4X-rated enclosure •...

  • Page 42: Connect Power Supplies

    10 transmitters in the same group. CAUTION! non-Tigo power supplies must reliably output 12 V (±2%) 1 A current for a single transmitter and 12 V (±2%) 10 A current for multiple (up to ten) transmitters.
  • Page 43 4. Use ferruled leads to connect 12 V output to the transmitter PWR terminals and torque to 0.4 Nm. Double-lug the ground and 12 V negative conductor at the power supply. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 44 2. Connect ground, L2, and L1 AC conductors and torque to 0.4 Nm. 3. Use ferruled leads to connect 12 V output to the transmitter PWR terminals and torque to 0.4 Nm. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 45: Connect A Core

    Core 1 1. Insert the core wire with a white ferrule into the transmitter white terminal and torque to 0.4 Nm. Currently not UL-certified for use with multiple transmitters. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...
  • Page 46 1 m (3.3 ft.). These conductors must be at least 20 cm (8 in.) distant from conductors using a different transmitter. 2. Pass up to ten negative string conductors through a transmitter core. To PV array To inverter ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 47: Amplify A Signal With Two Cores

    300 m (1000 ft.) and 500 m (1650 ft.) and in other special cases. Contact Tigo Sales Engineering for more information. To PV array To Inverter ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 48: Connect Signal Wiring

    The total length of signal wire from the first to the last transmitter should not exceed 100 feet. Leader Follower #1 Follower #2 Follower #9 CAUTION! Tx/Rx Check that signal ( ) wires never connect to terminals. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 49: Check Status Leds

    • PV conductor home run length is ≤300 m (985 ft.) with one core or between 300 m (985 ft.) and 500 m (1650 ft.) using two cores. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 50: Energize Rss Transmitters

    ±1% the total expected string safety voltage. If any string has greater or less than expected safety voltage, de-energize the system and correct the issue before continuing. • The PVRSS label is within 914 mm (3 ft.) of the Tigo E-Stop switch or other rapid shutdown initiation device. •...

  • Page 51: Testing And Troubleshooting

    Unpowered String Measurements – Safety Voltage • Powered String Measurements • Crosstalk Measurements • RSS Signal Detection Measurements Table Preparation Prepare a table for recording all test measurements like the following: ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 52: Unpowered String Measurements - Safety Voltage

    Testing and Troubleshooting Unpowered String Measurements – Safety Voltage A TS4-X-F is connected to one or two solar modules produces 0.6 V safety voltage when there are no keep-alive signals. The expected safety voltage of a string of TS4s is: <number of TS4-X-F in the string>...

  • Page 53: Powered String Measurements

    4. If the inverter begins power production, restart the inverter’s AC side until all V measurements are complete. The open circuit string voltage (V ) can be measured only before the inverter starts producing power. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 54: Resolve Voc Errors

    • Physically count the solar modules in the string and verify they match the As Built plan. Update the plan if needed. is lower than expected: ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 55: Test Current Direction

    • Check for proper TS4-to-module connections. • Test and replace each TS4 as needed. • Improperly connected TS4s that have been powered on may be damaged. Refer to the Help Center Testing Methods for Tigo Flex MLPE Systems article for details. Test Current Direction...

  • Page 56: Resolve Current Direction Errors

    Crosstalk Measurements Crosstalk can interfere with the keep-alive signals received by a TS4-X-F. Crosstalk should always be addressed to minimize the risk of substantial power loss, especially if one or more transmitters on an installation are not synchronized with the others. For more information about this kind of interference, refer to Appendix A –...
  • Page 57 Note that time must be given for inverters to scan their MPPTs. It is preferable to do this test when the solar modules can produce enough current for the inverter to produce power. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 | www.tigoenergy.com...

  • Page 58: Resolve Crosstalk Problems

    TS4 associated with inverter A to make sure there are no issues with signal strength. Resolve Transmitter Errors RSS transmitters use Tigo Pure Signal™ technology to mitigate crosstalk by synchronizing RSS signals in a fashion that enhances signal strength. Carefully check that all transmitters are connected correctly according to the...

  • Page 59: Rss Signal Detection

    RSS Signal Detection RSS Signal Detection You can check the strength of RSS keep-alive signals with the Tigo RSS Signal Detector (Tigo Part #400-00900-00) that senses an RSS signal on a home run, at a transmitter core, or at a TS4.

  • Page 60: Multi-Factor Rapid Shutdown

    Wireless: This method uses a wireless heartbeat signal from the CCA, via Tigo Access Points to each rapid shutdown device. In both instances, when the heartbeat signal is lost, the TS4-X devices go into shutdown mode and reduce voltage at the module-level, ensuring that the conductors in the array are at a code compliant level.

  • Page 61: Non-Hybrid Inverter Systems

    12 V (±2%) 10 A current for multiple (up to ten) transmitters CCA power supply: For systems with 2 TAPs or fewer, the DC power supply may be a Tigo power supply, or a 3rd-party power supply with 12-24V DC, 1A output. For systems with 3 TAPs or more, the DC power supply must be a 24V DC, 1A output.

  • Page 62: Hybrid Inverter Systems (Dc-Coupled Energy Storage Systems)

    7. Cloud Connect Advanced (CCA) and power supply 8. Tigo Access Point (TAP) Consult the Tigo documentation for wiring diagrams or contact Tigo Customer Success if you have any questions. ©20241107 Tigo Energy Inc. | PN: 002-00099-00 | Rev. 1.0 |...

  • Page 63: Specifications

    Download comprehensive warranty information from the Tigoenergy.com Downloads (www.tigoenergy.com/downloads) page. Support If you have any questions about installing or maintaining Tigo equipment, visit the Tigo Help Center, email support@tigoenergy.com, or call: • North America (7 a.m. to 6 p.m. Pacific Time): +1 408 402-0802 •...

This manual is also suitable for:

Ts4-x-oTs4-x-sTs4-x-f
