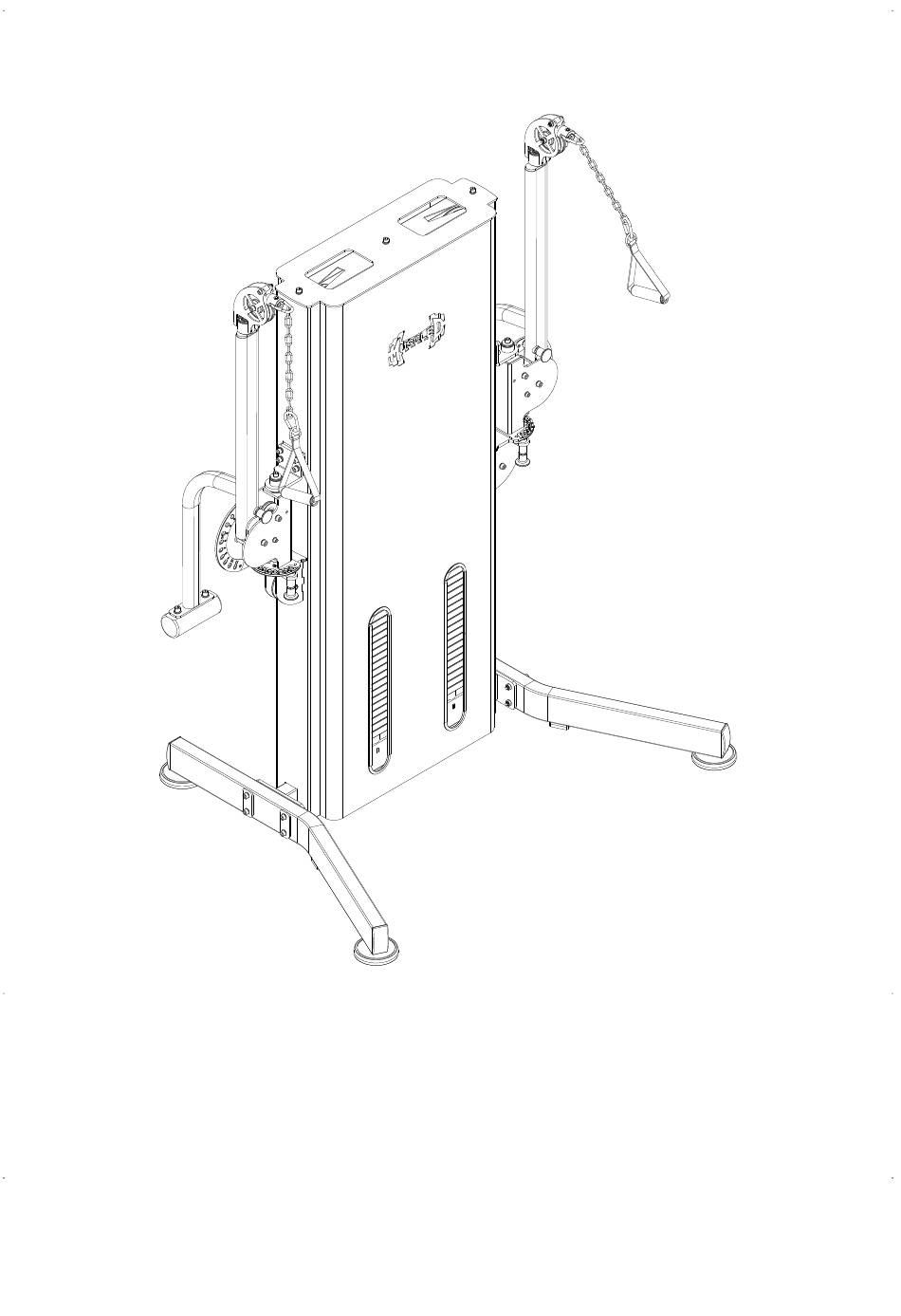

- Page 1 MEGATRON MULTI-FUNCTIONAL TRAINER Installation Manual www.muscledfit.com...
- Page 2 Table of Contents 01/ Safety Instructions for Use 02/ Installation Steps Diagram and Checklist 03/ Product Description 04/ Product Specifications 05/ Maintenance Guide...
- Page 3 01/ Safety Instructions for Use: Thank you for choosing our product. Proper use of the equipment is essential for your safety and convenience. Please carefully read the following information before using the equipment: 1. Carefully read all user manuals before using this product, and strictly follow the instructions outlined in the manual.
- Page 4 02/ Installation Steps 1. Installation Step one Checklist Finished Diagram Top Cover Gantry Frame Support Tube 1 Support Tube 2 Cushion Plate 95*40*T3 M10X25 Hex Cylindrical Bolt Spring Washer Ø10 Flat Washer Ø10 Guide Rod Fixing Sleeve Ø30*33 Guide Rod Spacer Sleeve Ø24*25 Guide Rod Weight Stack...
- Page 5 2. Installation Step Two Checklist Finished Diagram Rear Gantry Guard Plate 1916.5*832.14*T2 Front Gantry Guard Plate 1916.5*832.14*T2...
- Page 6 3. Installation Step Three Checklist Finished Diagram Left Adjustment Tube M12X25 Hex Cylindrical Bolt Spring Washer Ø12 Flat Washer Ø12 Weight Plate Ø77*190 M10X95 Hex Cylindrical Bolt Flat Washer Ø10 Sleeve Ø20*19.5 90 Pulley Ø90* Ø10.5*25 Hex Lock Nut Right Rotating Component M10X25 Hex Cylindrical Bolt Spring Washer Ø10...
- Page 8 4. Installation Step Four Checklist Pulley Installation Diagram: Single Pull Handle Pulley Hook 50*82*Ø8 39*21*Ø6*12 节(L375) Chain Wire Rope Locking Clamp Steel Wire Rope 90 Pulley Ø70 Pulley Ø115 Pulley Ø150 Pulley M10X20 Hex Cylindrical Bolt Flat Washer Ø10 Hex Lock Nut...
- Page 9 Designed to follow human motion trajectories, this machine ensures safety and durability. ·The machine is constructed using large-diameter steel tubing and treated with electrostatic powder coating, ensuring safety, reliability, and durability. 04/ Product Specifications Name Megatron Multi-Functional Train MT-MFT Dimensions 97" L x 141" W x 98" H Weight...
