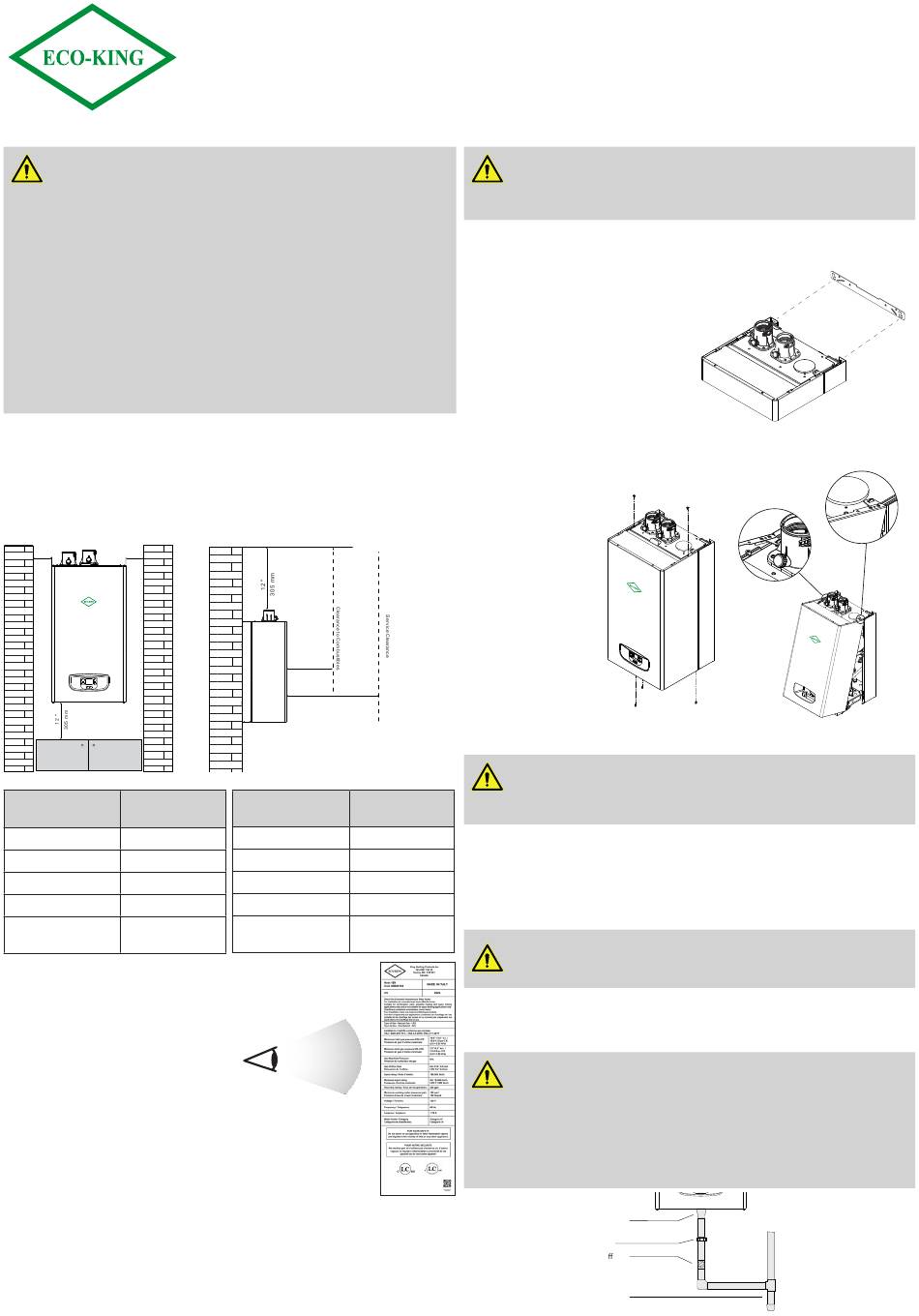

Eco-King Heet 199 Quick Installation Manual

1. Getting Started
WARNING: Read the Heet 199 Instananeous gas fired
condensing water heater installation and operation manual in
it's entirety before beginning the installation. If any portion of the
manual is unclear please contact Eco King's Technical Support
for further clarification before proceeding.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
The installer(s) must be knowledgeable and adhere to the local
codes and regulations, in the absence of local codes the National
Fuel Gas Code, ANSI Z223.1/NFPA 54 and/or CSA B149.1,
Natural Gas and Propane Installation Code.
The installer(s) must be qualified and trained to install gas piping,
venting, electrical and plumbing piping.
Failure to comply with the above statements may result in
personal injury, significant property damage or death.
Location
The appliance should be located in an area where leakage of the
appliance or connections will not result in damage to the area adjacent
to the appliance or to lower floors of the structure. When such locations
cannot be avoided, it is recommended that a suitable drain pan,
adequately drained, be installed under the appliance. The pan must not
restrict combustion air flow.
2" 2"
50 mm 50 mm
HEET
Location Clearance to
Combustibles
Top 9" (227mm)
Bottom 12"(305mm)
Back 0" (0 mm)
Front 2" (50mm)
Sides (Left & 2" (50 mm)
Right)
Site Conditions
Check the units rating plate to ensure
the units gas type, gas pressure
rating, electrical rating and water
pressure ratings are adequate for
the location. Ensure the units location
has access to water, and gas and
can be vented within the installation
manuals parameters as well as have
a means of removing condensate
water.
Box Contents
Verify the following contents came included in the box contents:
- Heet 199 water heater
- Contents of the envelope: Installation and operation manual,
documentation package, condensate drain spring clamp, LPG nozzle
and gas conversion label.
- Wall mounting bracket
- Water connection shutoff valves and pressure relief valve.
Heet 199 Quick Installation Guide
2"
50 mm
24"
610 mm
Location Service
Clearances
Top 9" (227mm)
Bottom 12"(305mm)
Back 0" (0 mm)
Front 24" (610 mm)
Sides (Left & 2" (50 mm)
Right)
2. Mounting the Water Heater
WARNING: The water heater is heavy, lift with assistance.
CAUTION: Reinforce the wall if it is incapable of supporting
the weight of the water heater and water within it.
Instructions to mount the water heater to the wall:
1. Tape the wall template to the
desired location of the water
heater.
2. Hold the wall-mount bracket in
place and use a torpedo level to
ensure the bracket is level.
3. Affix the level bracket to the wall.
4. Lift the water heater up and align
the openings (A) on the back of
the water heater with the tongues
(B) on the wall-mount bracket.
3. Removing the Front Panel
1. Loosen the case
screws (top and
b o t t o m ) a n d
remove them.
2. Pull the front cover
from the bottom
and remove it.
The front cover
is clamped to the
water heater at
H E
E T
the top by two
hooks.
4. Connecting the Gas Supply
NOTE: Use two wrenches when tightening gas connections
to the water heater to avoid damage to the water heaters
gas connection.
1. Purge the gas line of any debris before connecting to the water heater.
2. Determine the proper gas line size.
3. Ensure the supplied appliance adapter (25 mm BSP to 1/2" NPT
reducer), already attached to the water heater, is tight before
connecting any piping to it.
CAUTION: Do not remove the supplied adapter and attach
3/4" NPT gas piping directly to the gas valve the gas valve
uses BSP threading not commonly used in North America.
4. Install all other shut-off valves, unions and components per your local
codes and the authorities having jurisdiction.
5. Perform a pressure test and check for leaks using a soap and bubble test.
NOTE: Rigid and flexible 1/2" gas piping can be used on the
water heater. Ensure the internal diameter of the flexible gas
pipe and it's connectors are large enough to handle the required
input btu's of the water heater.
Do not use corrugated appliance connectors with the water
heater as they may have large pressure drops across them
that may affect the performance of the water heater and result
in nuisance noises.
Appliance
Adapter
Union
Shut-o
Valve
Drip Leg
B
A
A
Akua
B
