Sielox AC-1700 Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AC-1700 Controllers Series Installation
Manual
Copyright © 2006-2009 by Sielox, LLC.
PN: 6300132 Rev: 0611409
www.sielox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-1700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sielox AC-1700 Series

Summary of Contents for Sielox AC-1700 Series

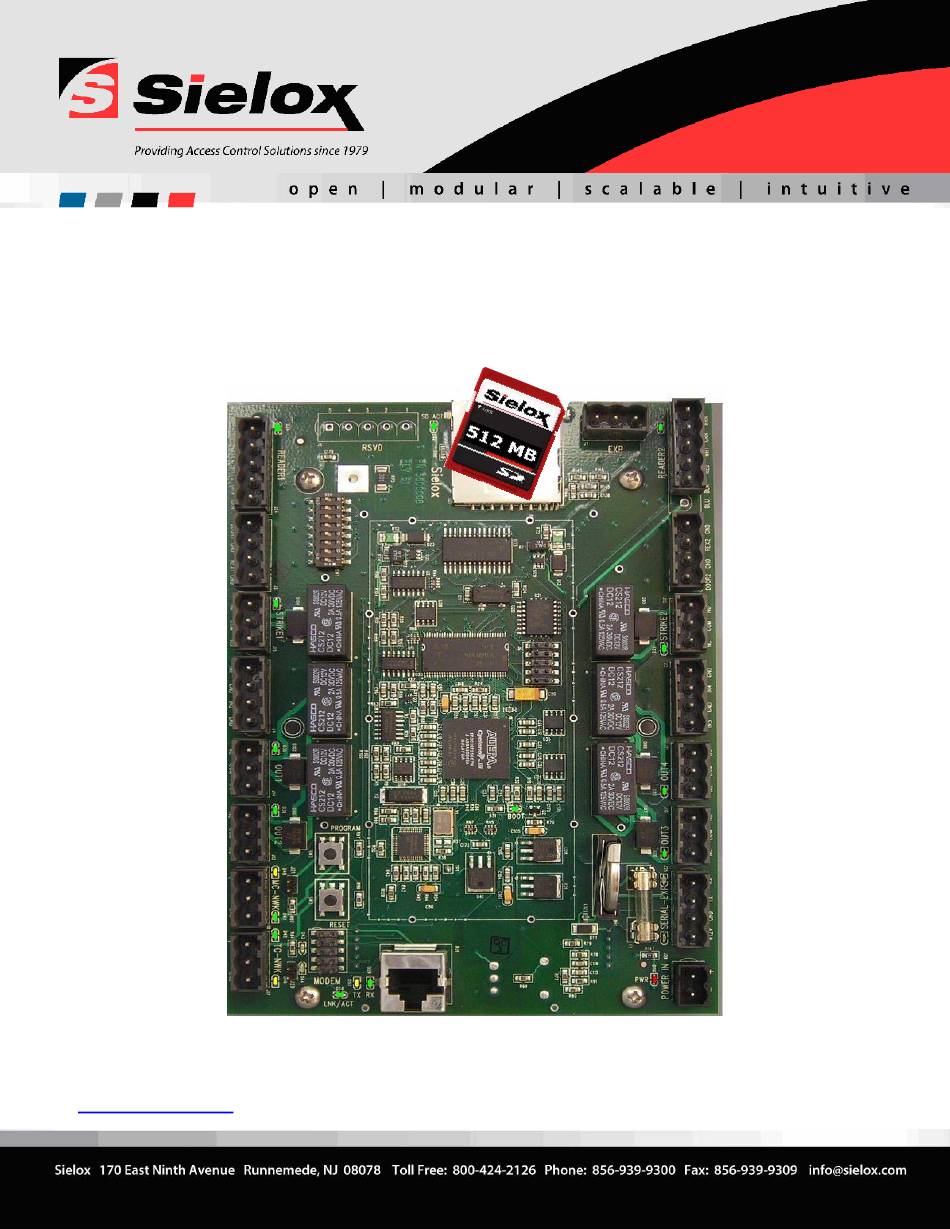

  • Page 1 AC-1700 Controllers Series Installation Manual Copyright © 2006-2009 by Sielox, LLC. PN: 6300132 Rev: 0611409 www.sielox.com...

  • Page 2: Table Of Contents

    Technical Support & RMA’s.......................9 Operation & Maintenance Procedures..................10 Replacement Parts ........................10 Installing Sielox Enclosures ....................11 AC-1700 Mounting Plates .....................13 Installing a Tamper Switch ....................14 Installing Cables into the Sielox Enclosure ................15 Signal Cables ..........................15 Communications........................16 Ethernet / RS-485 ........................16 Ethernet ..........................16 Ethernet ..........................17 Ethernet / RS-485 with AC-1500 or AC-1200 ...............18...
  • Page 3 AC-1700 Installation Manual AC Power Surge Suppressor ....................34 AC-1700 Push Buttons ......................35 RESET ............................35 PROGRAM ..........................35 RESET and PROGRAM ......................35 Web Maintenance Port ......................36 Changing the AC-1700 default Network Settings ...............36 Diagnostics..........................42 Set Time ..........................44 Relay Test – This is strictly a continuity test. (Ohm Meter Required) ......44 A/D Test ..........................45 Read Switches........................46 Test 485 Serial ........................46...

  • Page 4: Introduction

    AC-1700 Installation Manual Introduction The AC-1700, the next generation access control panel from Sielox, is the most advanced controller in the industry. A two door controller with capacity for 50,000 cards, 10,000 events storage, 4 general purpose I/Os and expansion up to 56 I/Os.

  • Page 5: Controller Features

     4 Supervised Inputs, 4 states and 4 Outputs programmable for latch, momentary or reflect.  Reader Types – FIPs 201, Standard 26 bit Wiegand, Sielox format, HID Corporate 1000, ANSI Wiegand.  I/O Expansion Board Option – Expand with an additional combination of 56 Inputs / Outputs.
  • Page 6 AC-1700 Installation Manual  Optional POE module.(Coming Soon!)  Programmable Flash ROM – Upgrade firmware without chip replacement.  WEB Based Maintenance Port – Perform infield diagnostics and updates using the Web browser.  Certifications – FCC and ETL Certified to UL294 and UL 1076. Rev061109 Page 6 of 51...

  • Page 7: Safety Precautions & Compliance

    AC-1700 Installation Manual Safety Precautions & Compliance This section describes specific requirements in addition to the installation requirements that are contained in this document to be followed when installing the AC-1700 products. No Receptacle Switch Labeling Clause 83.1(k) in UL 1076 and clause 60.1(j) in UL 294 require that this product be labeled with the following wording Do Not Connect To A Receptacle Controlled By A Switch.

  • Page 8: Ac-1700 Grounding Procedure

    Failure to properly terminate the shielding can result in faulty operation of the equipment. Sielox, LLC. shall not be liable for improper operation of the AC-1700 due to improper shielding and or unrecognized cable types.

  • Page 9: Fcc

    TV reception requiring the operator to take whatever steps are necessary to correct the interference. WARNING: Changes or modifications to Sielox EAC (Electronic Access Control) equipment not expressly approved by the party responsible for assuring compliance could void the user’s authority to operate the equipment in a safe or otherwise regulatory compliant manner.

  • Page 10: Operation & Maintenance Procedures

    AC-1700 terminal controllers. Replacement Parts 1. The AC-1700 PCB Sielox part number 6201700 uses a 3V replaceable coin cell battery type BR2032 available from Panasonic and many others. 2. The Sielox AC-1700 part number 6801705 uses one 1A, 250V size 5x20MM fuse, Littlefuse part# 0217001.HXP...

  • Page 11: Installing Sielox Enclosures

     Small Enclosure (p/n 6800111) 2 doors (One AC-1700) o Dimensions:12" x 12" x 3.5" (30.48 cm x 30.48 cm x 8.89 cm) To install the Sielox enclosures, perform the following procedure: 1. Position the enclosure or template at the desired installation location and mark the four keyhole slot locations for mounting.
  • Page 12 AC-1700 Installation Manual 5. Install a grounding lug to the Enclosure; ensure that the lug is terminated to an earth ground. 6. Clean any debris from the enclosure. Large Enclosure (p/n 6800110) Dimensions: 16" x 20”” x 3.5" (40.64 cm x 50.80 cm x 8.89 cm) Small Enclosure (p/n 6800111) Dimensions: 12"...

  • Page 13: Ac-1700 Mounting Plates

    AC-1700 Installation Manual AC-1700 Mounting Plates Sielox offers 3 mounting plates.AC-1700-MP, AC-1700-RMP and AC-1700-IOMP. These mounting plates are an alternative if you are installing the AC-1700 in a different type of enclosures. AC-1700-MP – 6800125 Mounting plate for a single AC-1700 controller board.

  • Page 14: Installing A Tamper Switch

    (p/n 6800110) or in the lower right hand corner of the small enclosure (p/n 6800111). The switch provided by Sielox is to be installed in this mounting channel. The Tamper Switch must be connected to an Input of an installed controller. This input shall be configured as normally closed with supervision.

  • Page 15: Installing Cables Into The Sielox Enclosure

    Connect signal cables to any reader, door strike, output, input, request-to-exit and door switch. Follow these procedures: 1. Pull signal cables through the Sielox Enclosure. (See table below) 2. When connecting these cables to the AC-1700 reader, input or output modules, form a cable bundle using plastic cable ties (Tie wraps).

  • Page 16: Communications

    AC-1700 Installation Manual Communications The AC-1700 controller, when configured as a Main Controller (MC), communicates directly to a Pinnacle Hardware Server via Ethernet. The AC-1700 when configured as a Terminal Controller (TC), communicates to an AC- 1700 Main Controller via RS-485. To configure the AC-1700 to be a Main Controller or Terminal Controller see DIP switch settings...

  • Page 17: Ethernet

    AC-1700 Installation Manual Ethernet Main Controllers are connected to the Pinnacle Hardware Server via an Ethernet connection. They all have an on board Terminal Controller, TC-1. With this setup you can access each individual MC web maintenance port. See Web Maintenance on page 36 Pinnacle Hardware Server Ethernet...

  • Page 18: Ethernet / Rs-485 With Ac-1500 Or Ac-1200

    AC-1200, AC-1500 and AC-1700 may be connected as TC’s to the AC-1700 Main Controller via the RS-485 Net interface. Other Sielox controllers, such as the AC-300 or AC-600 are not supported. If an unsupported TC is connected, Pinnacle will report a "Legacy TC detected"...

  • Page 19: Ac-1700 Board With Optional Poe Module - Coming Soon

    AC-1700 Installation Manual AC-1700 Board with optional POE Module – Coming soon AC-1700 Board Rev061109 Page 19 of 51...

  • Page 20: Connecting The Ethernet Cable

    AC-1700 Installation Manual AC-POE Module Connecting the Ethernet Cable 1. Pull the communication cable through the Sielox Enclosure. (See table below) 2. Terminate the CAT5 cable with an RJ-45 connector. 3. Connect the RJ-45 connector to the AC-1700.See the Ethernet Connector...
  • Page 21 AC-1700 Installation Manual The RS-485 termination jumper is located next to the TC-NWK J17. Jumpers should be added to the first controller, normally the Main Controller and to the last controller on the RS 485 BUS. (see note 2 above) The jumpers are provided in the AC-1700 connector kit bag.

  • Page 22: Installing The Ac-1700

    Connect signal cables to any reader, door strike, output, input, request-to-exit and door switch. Follow these procedures: 1. Pull signal cables through the Sielox Enclosure. (See table below) 2. When connecting these cables to the AC-1700 reader, input or output modules, form a cable bundle using plastic cable ties (Tie wraps).

  • Page 23: Transient Suppressor (Door Locks And Outputs)

    AC-1700 Installation Manual Transient Suppressor (Door Locks and Outputs) The installation of suppression diodes is required for all electric door locks or other inductive loads connected to TC outputs. See diagram below. Color band denotes Connect to J14 (Strike 1) Cathode or J12 (Strike 2), NO or NC pins.

  • Page 24: Ac-1700 Connectors

    AC-1700 Installation Manual AC-1700 Connectors SD Card I/O Expansion - Future Reader 2 Reader 1 Door contact 1 & Door contact 2 & Request to Exit 1 Request to Exit 2 Door Strike 1 Door Strike 2 Inputs 1 & 2 Inputs 3 &...

  • Page 25: Ac-1700 Switches, Relays, Coin Battery And Input Fuse

    AC-1700 Installation Manual AC-1700 Switches, Relays, Coin Battery and Input Fuse DIP Switch 1 Strike 1 Relay Strike 2 Relay Output 1 Relay Output 3 Relay Output 2 Relay Output 4 Relay Real Time Clock Program Switch Coin Battery RESET Switch DC Input Fuse 1.25A Rev061109...
  • Page 26 AC-1700 Installation Manual AC-1700 POE Module Installation AC-POE Module Installed Connectors for AC-POE Module located on the back of the AC-1700 board Rev061109 Page 26 of 51...

  • Page 27: Ac-1700 Connectors

    AC-1700 Installation Manual AC-1700 Connectors Readers 1 & 2 – J24 & J23 Name Wire Color Ground Black Power 12 VDC Data 1 White Data 0 Green Brown Door Contact 1, 2, Request to Exit (REX) 1 & 2 Connectors J3, J1 Name Wire Color DOOR1...
  • Page 28 AC-1700 Installation Manual I/O Expansion (I2C) – J7 Name Wire Color Clock Black Green Data Rev061109 Page 28 of 51...

  • Page 29: Setting The Main Controller Ip Address

    AC-1700 Installation Manual Setting the Main Controller IP Address In order to have Pinnacle communicate to the AC-1700 Main Controller or have access to the Web Maintenance Port you have to configure its IP Address, Subnet Mask and Gateway. Please see the Web Maintenance Port on page 36.

  • Page 30: Controller Type

    AC-1700 Installation Manual Switch in ON Position Switch in OFF Position Controller Type Switch 8 sets the controller type: = Main Controller = Terminal Controller Controller Address Use the following table to setup Main Controllers or Terminal Controller addresses. Switches 1-7 Controller Addresses Address Rev061109 Page 30 of 51...
  • Page 31 AC-1700 Installation Manual Switches 1-7 Controller Addresses Address Rev061109 Page 31 of 51...
  • Page 32 AC-1700 Installation Manual Switches 1-7 Controller Addresses Address Rev061109 Page 32 of 51...

  • Page 33: Ac-1700 Status Led

    AC-1700 Installation Manual AC-1700 Status LED Description Power Indicator ON = 12 Volts present. OFF=No Power CPU Status BOOT ON =CPU Running. OFF=CPU Boot Failed SD Card SD ACT ON = Reading or Writing data to the SD Card Ethernet LNK/ACT ON = Connected BLINKING = Receiving/Transmitting Data ON= AC-1700 Receiving Data...

  • Page 34: Power Cables

    Color Code Max. Dist. Belden 1307A Power / Battery Red/Black 50 ft. AC Power Surge Suppressor Sielox highly recommends the use of an AC power surge suppressor such as Ditek-1F. For more information go to http://www.ditekcorp.com/product-details.asp?ProdKey=11 Rev061109 Page 34 of 51...

  • Page 35: Ac-1700 Push Buttons

    AC-1700 Installation Manual AC-1700 Push Buttons There are 2 push buttons on the AC-1700 board, PROGRAM and RESET. They are located on the lower left corner of the AC-1700 board, above the Ethernet connector. RESET Press and hold this button for 3 seconds, the Ethernet TX, Ethernet RX, and SD ACT LED’s all come on for about one second and then the AC-1700 reboots itself.

  • Page 36: Web Maintenance Port

    AC-1700 Installation Manual Web Maintenance Port The Web Maintenance Port requires a computer with a browser installed, and an Ethernet port. For best results use the Microsoft Internet Explorer 7 or later. You can connect straight from the computer to the AC-1700 Ethernet connector or through the network.
  • Page 37 AC-1700 Installation Manual 2. Select the Internet Protocol(TCP/IP) item and click on the Properties button. 3. Make a note of the IP Address if your computer uses static IP, you will need it later. 4. Select the “Use the following IP Address:” and type the information shown below. Rev061109 Page 37 of 51...
  • Page 38 AC-1700 Installation Manual 5. Click Ok button and then the close button on the Local Area Connection Properties window. 6. Make sure the AC-1700 is powered and connected to the network or to your computer. 7. Open the Web browser and type in the address bar: http://192.168.1.170 then hit the “Enter”...
  • Page 39 AC-1700 Installation Manual 8. On the password field type “admin” then click on the login button or hit the “Enter” key. The AC-1700 main screen will be displayed. Rev061109 Page 39 of 51...
  • Page 40 AC-1700 Installation Manual 9. Select “Network” under configuration. 10. Type the new IP address and then click the “Save Network Settings” button. The following screen will be displayed. Note: See Network Defaults on page 36. 11. In order for the new IP to take effect you have to reboot the AC-1700. “Click on the Reboot link”...
  • Page 41 AC-1700 Installation Manual 12. Click on ‘Return to the Main Menu”. You will be asked to login again. Note: If you change the IP address of the AC-1700, you may need to change the IP address of your computer into the new IP class, to continue the configuration. Rev061109 Page 41 of 51...

  • Page 42: Diagnostics

    You can perform the following diagnostics:  Set Time – Sets the AC-1700 Real Time Clock date and time  Relay Test – Tests the 6 on board relays (Strike 1 and 2, Out 1, 2, 3 and 4) (Sielox factory only) ...
  • Page 43 AC-1700 Installation Manual Select “Diagnostics” under the “Maintenance” menu to display the following: Rev061109 Page 43 of 51...

  • Page 44: Set Time

    AC-1700 Installation Manual Set Time 1. Select the “Diagnostic” under the “Maintenance option” on the AC-1700 main Web page. 2. Select “Set Time”, the following screen will be displayed 3. Enter the Date and Time then press “Set Date/Time” button. 4.

  • Page 45: A/D Test

    AC-1700 Installation Manual 3. Press Return to Main Menu. A/D Test This test reads 10 inputs and displays the values on the screen. In order to perform this test you need switches connected to the following inputs: IN1, IN2, IN3, IN4, DOOR1, REX1, DOOR2 and REX2.

  • Page 46: Read Switches

    AC-1700 Installation Manual Read Switches This test reads the dip switch SW1. The values range from 300-3FF in hexadecimal. With all the switches in the OFF position the read value is 300, with all the switches in the ON position the read value is 3FF.

  • Page 47: Test Modem And Test Digital I/O Are Not Available At The Time Of This Release

    AC-1700 Installation Manual 2. Select the “Diagnostic” under the “Maintenance option” on the AC-1700 main Web page. 3. Select “Test 485 Serial”, the following screen will be displayed, with the results of the test. 4. Press Return to Main Menu. Test MODEM and Test Digital I/O are not available at the time of this release.

  • Page 48: Upgrading Firmware

    3. Press Return to Main Menu Upgrading Firmware 1. Download the latest firmware from the Sielox Web site to you computer.(You may have to contact Sielox Technical Support to obtain the AC-1700 firmware) 2. Open a Web browser connect to the AC-1700 that you want to upgrade the firmware.
  • Page 49 AC-1700 Installation Manual Note: Wait until the process is finished. Failure to do so may leave the AC-1700 inoperable. 6. Press Return to Main Menu 7. Select the “Diagnostic” under the “Maintenance option” on the AC-1700 main Web page. Rev061109 Page 49 of 51...
  • Page 50 AC-1700 Installation Manual 8. Select “Reboot Controller”. 9. Press Return to Main Menu. The main page should display the new firmware version. Rev061109 Page 50 of 51...

  • Page 51: Ac-1700 Board Serial Number Format

    AC-1700 Installation Manual AC-1700 Board Serial Number Format The serial number consists of eighteen alpha-numeric characters. See section 2.0 for the format to be used when marking the serial number. EXAMPLE: 712345603P02454001 Serial Number Format The serial number shall be created using the following format: Sequence Number Numerical Day Within Year...
