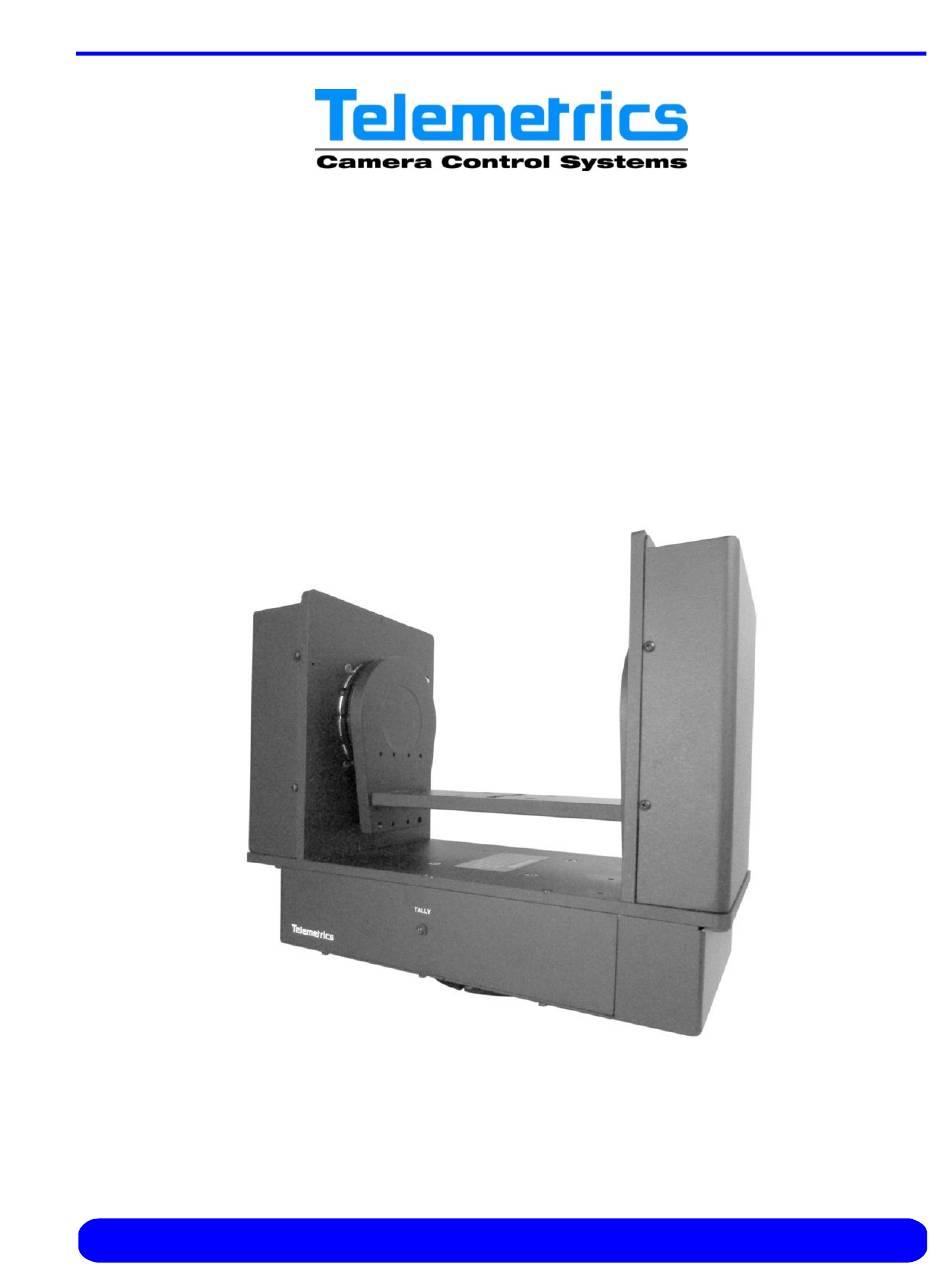

- Page 1 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual rev 05/15 www.telemetricsinc.com...
-
Page 2: Revision History
XXXX XXXX Initial issue. Copyright Copyright© 2015 Telemetrics Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Telemetrics Inc. Technical Support Contact Telemetrics Inc. for technical support: Telemetrics Inc. -
Page 3: About This Manual
About this Manual This manual contains installation and operational information for the Telemetrics HP Servo Pan/Tilt Head Model PT-HP-S4. This unit is primarily designed for use with ENG and smaller types of cameras. Many options of the Telemetrics Compact Pan/Tilt Head PT-HP-S4 are manufactured, due to the different types of cameras and lenses the device can interface with. -
Page 4: Symbols
Symbols Certain symbols are used throughout this manual to provide a ready visual reference. These symbols are as follows: Symbol Used for A note that provides background or incidental information concerning the current topic or procedure. Indicates an important situation which if not avoided can result in damage to the system. -
Page 5: Important Safety Information
Important Safety Information Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and working environment from potential damage. Important! Use the power switch to provide or remove power for the pan/tilt head and its connected devices. - Page 6 This page intentionally left blank. www.telemetricsinc.com rev 05/15...
-
Page 7: Table Of Contents
Measuring and Recording the Position of the Balanced Payload......10 Figure 8 Measuring the Vertical Position of the Cradle ........10 Transferring the Payload to the Model PT-HP-S4 Pan/Tilt Head ......11 Using a Counterweight and/or a Riser Block ............11 Balancing the Payload Horizontally Using a Round Object..........12 Establishing Power and Communication to the Pan/Tilt Head ...........13... - Page 8 Interfacing with Fujinon BMD or Canon KTS Series Teleconferencing Lenses .. 22 Calibrating the Camera Lens ..................... 23 Calibrating a Camera Lens Using the Telemetrics RCCP-1 Control Panel ..23 Calibrating a Camera Lens Using the Serial Port of a Personal Computer ..24 Calibrating a Camera Lens Using Telemetrics Pan/Tilt Configuration Software .
-
Page 9: Introduction
Introduction The Telemetrics Pan/Tilt Head Model PT-CP-S4 (Figure 1) is a precision pan/tilt head with smooth variable operating speed that is designed for use with ENG and smaller type cameras. The pan/tilt head is designed to be mounted in an upright position on a shelf, tripod, wall ®... - Page 10 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual The Model PT-HP-S4 Pan/Tilt Head can be powered from a Rack Mount Power Supply PS-RM-48V and converts the 48 V to appropriate voltage levels for the head, auxiliary robotics devices, camera, lens, and viewfinder.
-
Page 11: Specifications
Introduction Specifications Specifications for the Telemetrics Model PT-HP-S4 Pan/Tilt Head are summarized below: Input Voltage 38 to 53 VDC Input Current 6.8 A max Input Power 50 W (pan/tilt head only) Camera Power 40 W (13.5 VDC, 3 A maximum)) Pan Travel ±170°... - Page 12 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual This page intentionally left blank. www.telemetricsinc.com rev 05/15...
-
Page 13: Installation And Setup
Installation and Setup Mounting the Pan/Tilt Head The Telemetrics Model PT-HP-S4 Pan/Tilt Head is designed to be mounted in an upright ® position on either a tripod, a shelf, a Telemetrics wall mount, or Telemetrics Televator Unless otherwise specified, the PT-HP-S4 will be set up for upright mounting. -
Page 14: Balancing The Payload
Televator adapter plate. If the Model PT-HP-S4 Pan/Tilt Head is to be mounted on a pipe flange, use the four 1/2-inch1/4 - 20 flat head socket cap screws that are provided. If the Model PT-HP-S4 Pan/Tilt Head is to be mounted on a wall mounting bracket, follow the instructions provided with the bracket. -
Page 15: Mounting The Payload Balancing Assembly
Adjustable Camera Cradle Mounting Plate, with Threaded Holes for Mounting Bolts Figure 3 Telemetrics Payload Balancing Assembly (With Camera Cradle Attached) Mounting the Payload on the Adjustable Camera Cradle Use the appropriate hardware to initially secure the unbalanced payload to the camera cradle (Figure 4). -
Page 16: Balancing The Payload Horizontally On The Adjustable Camera Cradle
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Balancing the Payload Horizontally on the Adjustable Camera Cradle After the payload is mounted on the adjustable camera cradle, you will likely notice that the payload is not horizontally balanced (it does not remain level when it is unsupported) because the horizontal center of gravity of the payload is not aligned with the horizontal center of rotation for the camera cradle (Figure 5). -
Page 17: Balancing The Payload Vertically On The Adjustable Camera Cradle
Installation and Setup Balancing the Payload Vertically on the Adjustable Camera Cradle After the payload is horizontally balanced, the vertical center of gravity of the payload must be aligned with the vertical center of rotation for the camera cradle (Figure 6). Rotate the payload clockwise until it is nearly upside-down (approximately 170 degrees from its horizontal operating position) and then determine which direction the payload rotates when it is unsupported:... -
Page 18: Measuring And Recording The Position Of The Balanced Payload
After the payload is balanced, the positioning of the payload must be measured before transferring the payload (and cradle, if the Model PT-HP-S4 Pan/Tilt Head adjustable camera cradle was used for balancing) to the same position on the Model PT-HP-S4 Pan/Tilt Head. Save these measurements for future reference. -
Page 19: Transferring The Payload To The Model Pt-Hp-S4 Pan/Tilt Head
Setup Transferring the Payload to the Model PT-HP-S4 Pan/Tilt Head If the Model PT-HP-S4 Pan/Tilt Head adjustable camera cradle was used for balancing, remove the cradle with the mounted payload from the Payload Balancing Assembly and mount it on the Model PT-HP-S4 Pan/Tilt Head. -
Page 20: Balancing The Payload Horizontally Using A Round Object
On the camera mount (or other convenient location), mark the position of the dowel or pen where horizontal balance is achieved. Mount the camera with its accessories on the Model PT-HP-S4 Pan/Tilt Head, aligning the mark you made in the previous step with the center of the camera mounting plate on the pan/tilt head. -
Page 21: Establishing Power And Communication To The Pan/Tilt Head
Connecting to an External Power Supply Power to the Model PT-HP-S4 is made with interconnect cable CA-PWR-7XLR-XXX (Figure 11) to the 7-pin XLR power connector that is located on the rear of the unit. The other end of interconnect cable connects to the external power supply. -
Page 22: Configuring The Dip Switch Settings On The Serial Data Board
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Configuring the DIP Switch Settings on the Serial Data Board Location of two serial data DIP switches on the Serial Data Board (Part No. 53915) is shown in Figure 13. DIP switch S1 sets the direction of motors for the pan, tilt, track, zoom, focus, iris, and auxiliary axes. -
Page 23: Reversing A Motor Direction On The Serial Data Board
Installation and Setup DIP switch S2 sets the Serial Data Board for use with S-232 or RS-422 standards. Use of each pin on DIP switch S2 is listed below: Description RS-232/RS-422 RS-232 RS-422 RS-232/RS-422 RS-232 RS-422 Reversing a Motor Direction on the Serial Data Board Motor directions can be reversed. -
Page 24: Configuring The Ip Address, Net Mask, And Gateway
Configuring the IP Address, Net Mask, and Gateway The IP address will be already configured if this information was communicated to Telemetrics when the pan/tilt head was ordered. If needed, the IP address can either be changed or a new IP address can be entered. -
Page 25: Providing Power To A Teleprompter
Model PT-HP-S4 Pan/Tilt Head (Figure 16). It is important to remove power from the Model PT-HP-S4 Pan/Tilt Head before connecting or disconnecting the auxiliary cable, as damage may occur otherwise. -
Page 26: Configuring Soft Limits For A Device On The Auxiliary Axis
Can be controlled with soft limits that stop the device smoothly before reaching the mechanical end stop at the limit of its travel. The soft limits are configured using Telemetrics Pan/Tilt Configuration Software installed on a personal computer. - Page 27 Installation and Setup Select the LIMITS tab to display the Limits window (Figure 17). Verify that SET WIN check box for the AUX-X and/or AUX-Y axes is empty (no check mark), indicating that soft limits for these axes are disabled. Carefully position the device at the center (zero) location of its Y-axis travel (elevation) or X-axis travel (track).
-
Page 28: Adjusting The End Stop Actuators On The Pan/Tilt Head
Adjusting the End Stop Actuators on the Pan/Tilt Head Adjusting the Tilt End Stop Actuators Locate the two tilt end stop actuators on the Model PT-HP-S4 Pan/Tilt Head (Figure 19). Tilt the camera up to its intended limit. If the tilt end stop actuates before the... -
Page 29: Adjusting The Pan End Stop Actuators
Adjusting the Pan End Stop Actuators Locate the pan end stop actuators on the bottom of the Model PT-HP-S4 Pan/Tilt Head. Pan the camera towards the left to its intended limit. If the pan end stop... -
Page 30: Establishing Camera Power And Camera Control
Establishing Camera Power A Telemetrics power supply that includes a 15 V module for the camera must be used when camera power is required. In addition, the Telemetrics control panel must be configured to accept the camera ROP to provide camera control. -
Page 31: Calibrating The Camera Lens
Telemetrics representative for assistance. If the camera lens was modified by Telemetrics, it will be delivered already calibrated. If the lens was field-modified or if the lens is being transferred to a Model PT LP S4 Pan/Tilt Head that is currently using a lens from a different manufacturer, lens calibration must be performed. -
Page 32: Calibrating A Camera Lens Using The Serial Port Of A Personal Computer
(If needed) Reconnect the cable to the control panel. Calibrating a Camera Lens Using Telemetrics Pan/Tilt Configuration Software The camera lens can be calibrated (and configured, if needed) using Telemetrics Pan/Tilt Configuration Software installed on a personal computer. If a lens is replaced with the same model of lens, only lens calibration is required. -
Page 33: Troubleshooting Camera Lens Calibration
Lens reverses direction while Perform the lens calibration. moving zoom to tele or wide. If the problem still exists, use the Telemetrics Pan/Tilt Configuration Software to reset the lens parameters and then calibrate. If the problem still exists, using the Telemetrics Pan/Tilt Configuration Software lower the zoom (Manual, Preset –... -
Page 34: Verifying Proper Operation
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Verifying Proper Operation After the camera has been mounted on the Model PT-HP-S4 Pan/Tilt Head, all connections have made, and installation is completed, operation of the system should be tested. (If needed) Power up the Model PT-HP-S4 Pan/Tilt Head and camera. -
Page 35: Appendix
Appendix Serial Data Protocol Telemetrics provides for serial control of many of its camera control products. In this section, which describes the protocol that is used for serial control of these devices, the Telemetrics controlled device is referred to as the "controller" and the device commanding the head is referred to as the "host". - Page 36 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual The remainder of this section describes the general methods for serial camera control. Commands will be introduced as they are needed. Note that while examples are shown enclosed in single quotes, only the characters within the quotes are to be sent; the quotes are simply for clarity.
-
Page 37: Manual Camera Motion
Appendix Manual Camera Motion The procedure for manually moving a camera is to: Reset motion voltages with the 'R' command. Move the camera using 'P', 'T' "Z' and 'F' commands. The commands that are used are detailed in the following two sections. Camera Control Voltages Camera motion is controlled by four voltages corresponding to the velocity of pan, tilt, zoom and focus, which are set using the 'P', 'T', 'Z' and 'F’... -
Page 38: Preset Position Control
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Preset Position Control There are 256 preset positions (numbered 0 to 255) that are available in the non-volatile memory of the controller. The information stored in a preset location does not include the camera to which the preset corresponds, and it is therefore up to the host application to select the proper camera to be used prior to preset operations. -
Page 39: Preset Recalling Commands
Appendix Preset Recalling Commands The ‘C’ command recalls the preset position stored in the preset number given as its parameter. As noted earlier in this document, once the controller begins a recall command, any control commands remaining on the command line are ignored. While the recall is in progress, the only character that will be acted upon is the <CAN>... -
Page 40: Request Commands
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Request Commands Command Parameters Description ± 2147483647 (± 2 Current Pan Position ± 2147483647 (± 2 Current Tilt Position 0 – 1024 (2 Current Zoom Position 0 – 1024 (2 Current Focus Position ±... -
Page 41: Pwm Commands
Appendix PWM Commands Command Parameters Description ± 255 (± 2 Set Pan PWM Drive (-255 = R ; 0 = STOP ; 255 = L) ± 255 (± 2 Set Tilt PWM Drive (-255 = D ; 0 = STOP ; 255 = U) ±... -
Page 42: Preset Commands
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Preset Commands Command Parameters Description 0 – 255 Call Preset Shot 0 – 255 Enter Preset Shot 0 – 255 Show Position Parameters for Shot 0x18 <NONE> Cancel Current Shot (press CTRL+X or send a... -
Page 43: Velocity And Acceleration Settings Commands
Appendix Velocity and Acceleration Settings Commands Command* Parameters Description @VEL= See “Description” Show Axis Velocity Settings column (P=1,T=2,X=3,Z=4,F=5,I=6,Y=7) @LVEL See “Description” Load Axis Default Velocity Settings column (P=1,T=2,X=3,Z=4,F=5,I=6,Y=7) @?JVH 0-2147483647 (2 Set Axis Maximum Velocity for Joystick Controls @?JVL 0-2147483647 (2 Set Axis Minimum Velocity for Joystick Controls @?PVH 0-2147483647 (2... -
Page 44: Additional Velocity And Acceleration Settings Commands
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Additional Velocity and Acceleration Settings Commands Command* Parameters Description @PID= See “Description” Show Axis PID settings (P=1, T=2, X=3, Y=7) column @SET= See “Description” Burn Axis PID settings (P=1, T=2, X=3, y=7) -
Page 45: Soft Limit Commands
Appendix Soft Limit Commands Command Parameters Description see “Description” Show Axis Soft Limit @LIMS column (P=1,T=2,X=3,Z=4,F=5,Y=7) see “Description” Enable Soft End Limit @LIME column (P=1,T=2,X=3,Z=4,F=5,Y=7) see “Description” Disable Soft End Limit @LIMD column (P=1,T=2,X=3,Z=4,F=5,Y=7) see “Description” Automatically Find Physical End Limit @AUTO column (P=1,T=2,X=3,Z=4,F=5,Y=7) - Page 46 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Command Parameters Description @CAMS 1010 Report Camera Initialization Status @WPCT 1010 Report Weather Proof/Peripheral CMD Enable Status @WPCT Use with PT-CP-S2, PT-HP-S2, PT-LP-S2* @WPCT Use with HD-HOU-S2* @WPCT Use with PT-LP-S3, PT-HP-S2 w/ Contact Closure (CC)*...
-
Page 47: Connector Input/Output Signals
Appendix Connector Input/Output Signals Serial Controls (9-Pin D Type) (Mating View) RS-232 Pin Assignments: No Connection No Connection TX Data (From P/T) No Connection RX Data (to P/T) No Connection No Connection No Connection Ground RS-422 Pin Assignments: TX Data + (From P/T) No Connection TX Data - (From P/T) No Connection... -
Page 48: Lens (12-Pin Male Type)
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Lens (12-Pin Male Type) (Mating View) 11 12 Pin Assignments: Focus Mode Lens Ref or Focus Reference (Non-teleconferencing Lens) Zoom Mode Focus Control Ground Zoom Control Iris Local/Camera 10 Iris Mode Iris Control... -
Page 49: Aux/Trolley (10-Pin Female Type)
Appendix Aux/Trolley (10-Pin Female Type) (Mating View) Pin Assignments: Ground +24V Trolley +24V Trolley +24V Trolley RET ADDR OUT 10 +24V Trolley RET Ethernet (RJ-45 Type) (Mating View) Pin Assignments: EPWR+ EPWR- EPWR+ EPWR- rev 05/15 www.telemetricsinc.com... -
Page 50: Tally (12-Pin Female Type)
HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual Tally (12-Pin Female Type) (Mating View) Pin Assignments: No Connection No Connection No Connection No Connection Tally- No Connection No Connection 10 No Connection No Connection 11 No Connection Tally+ 12 No Connection www.telemetricsinc.com... -
Page 51: Index
......30 procedure ........23 position data reporting ....31 troubleshooting ......25 recalling commands ....31 Model PT-HP-S4 Pan/Tilt Head storing commands...... 30 description ........2 camera ROPs ........40 mounting ........5 Canon-KTS lens.......22 specifications ....... 3 commands listing verifying proper operation .. - Page 52 HP Servo Pan/Tilt Head Model PT-HP-S4 User’s Manual ® Televator ........6 serial data board Net Mask ......... 16 connections ........13 pan end stop actuators DIP switch settings.....14 adjusting ........21 reversing the drive phase...15 payload balancing serial data protocol......27 horizontally ........8 specifications ........3...
