Trionic 11-90-033 Manual

LED light
& holder
A
B
Attaching the Light Holder
Instructions for a Walker
A1. On top of the black semi-verti-
cal tube, locate the two screws that
clamp the grip tube, situated in front
of the brake lever.
A2. Loosen both screws with the
5mm allen key included with the LED
light.
A3. Remove the two screws from the
grip clamp.
A4. Place the light holder on top of
the grip clamp, with its circular and
slotted light attachment pointing
forwards and upwards. Enter the two
screws with washers into the holes of
the clamp.
A5. Tighten the two screws with the
5mm allen key. NOTE: It is important
that you tighten the screws properly
as they secure the grip tube with its
rubber grip and brake lever.

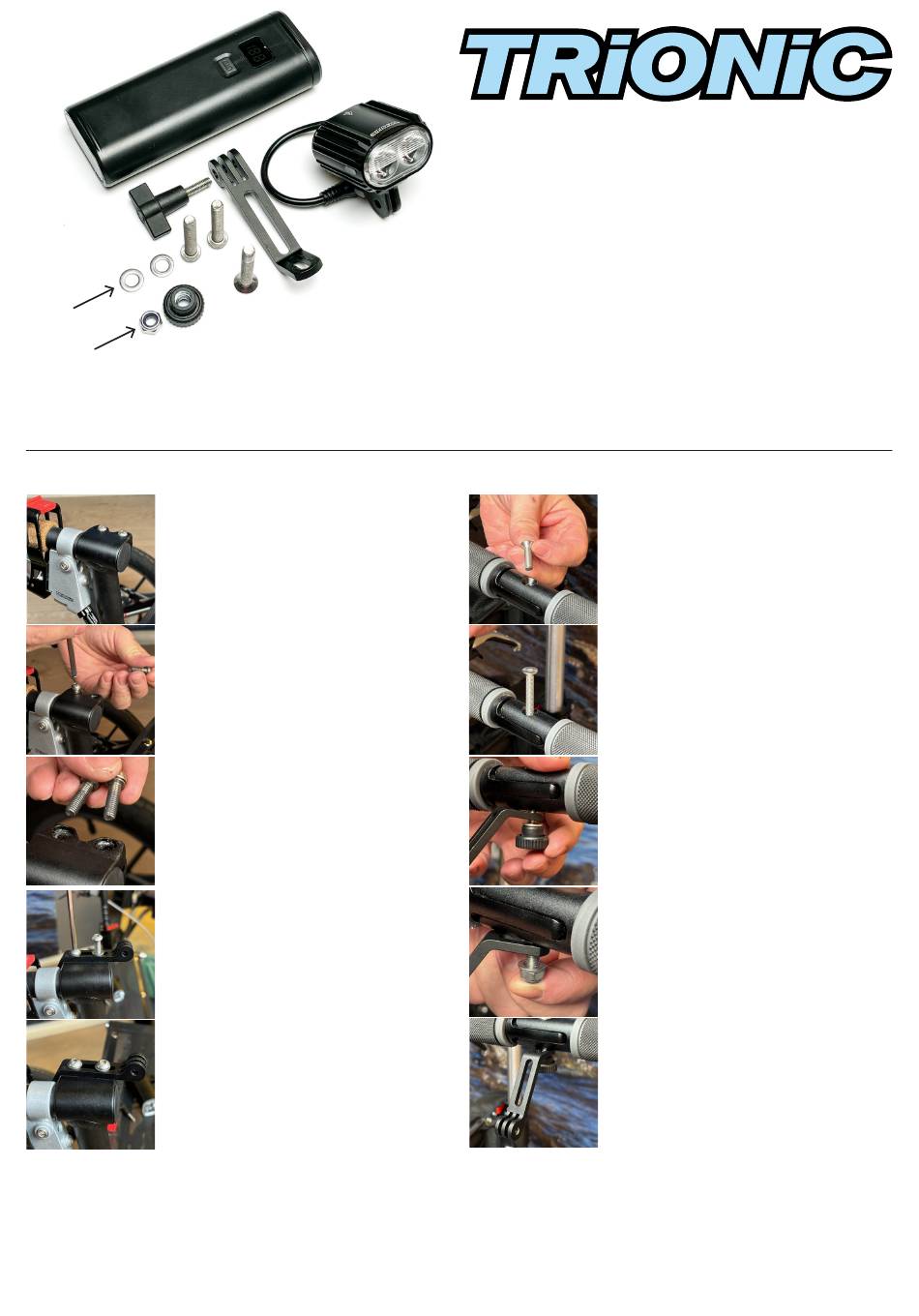

Thank you for choosing the 1600 Lumen
Trionic LED Front Light with Battery Pack.
This manual both shows how you attach the
light holder and the light on a Walker (left co-
lumn below) and also how you attach them
on a Veloped (right column below).
In the left-hand photo, A shows the holder
attachment parts for a Walker (2 screws + 2
washers). B shows the holder attachment
parts for a Veloped (1 screw + 1 knurled nut + 1
nut).
Instructions for a Veloped
B1. Locate the screw at the center fol-
ding hinge of the U-shaped grip bar
of the Veloped. Unscrew the screw
with the included 4mm allen key and
remove it.
B2. Replace the old screw with the
longer screw included with the LED
light. Attach the longer screw to the
hinge and tighten it with the 4mm
allen key.
B3. Attach the short angled end of
the light holder to the lower end of
the screw, on the downside of the
U-shaped grip bar. The holder should
point downwards. Fasten the holder
with one washer and the knurled nut
that you tighten with your fingers.
B4. For a more secure holder attach-
ment, avoiding the holder to unin-
tentionally turn sideways, replace
the knurled nut with the included
stainless steel nut and tighten it with
a 10mm spanner.
B5. This photo shows the light holder
as correctly attached.
