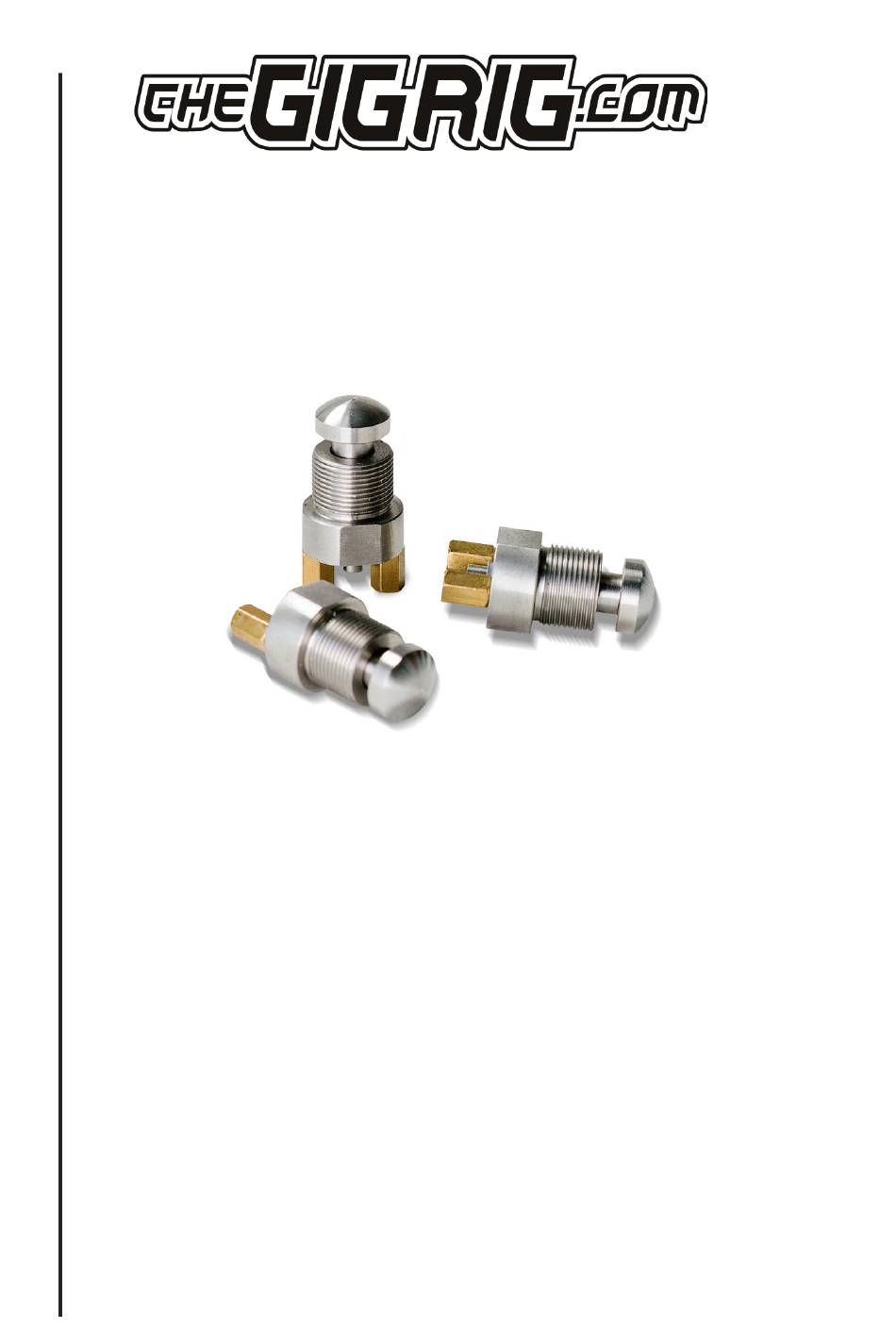

- Page 1 G2 FOOTSWITCH UPGRADE MANUAL The GigRig Ltd G2 Footswitch Upgrade Manual, February 2025...
- Page 2 CONTENTS 1. Installation Guide 2. Reassembling your G2 3. Warranty The GigRig Ltd G2 Footswitch Upgrade Manual, January 2025...
- Page 3 Disassembly & Footswitch Rail Replacement 1. Remove the Hex Bolts: Using a 2.5mm Hex/Allen key or bit, unscrew all of the black hex bolts on G2. This will release the Top Board, Back Board, and Front Edge Plate. 2. Remove the Old Footswitch Rails: To replace the footswitch rails, begin by unscrewing the nuts from each individual footswitch.
- Page 4 Secure the Rail Cables: Clip all rail cables into the provided clip on the metal frame. Note: Older models may not include the clip on the frame, so please check if it’s present The GigRig Ltd G2 Footswitch Upgrade Manual, January 2025...
- Page 5 2. Reassembling your G2 Please Note: These footswitches are compatible with all G2 models. However, depending on your backboard version, there may be minimal space between the backboard circuit and the new OptoKick Rail. To prevent any pins from touching, we recommend using a small pair of snips to trim or clip any long points from the backboard’s ribbon cable socket (as circled below).
- Page 6 Reattach the Backboard: Begin by reattaching the backboard to the base of the G2 using the hex bolts. • Ensure that all ribbon cables, especially the Motherboard to Backboard cable, are kept clear of the back • plate. Trapping the cables can cause damage and affect the operation of the G2.
-
Page 7: Warranty
In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
