The GigRig Ltd
Unit 85 Basepoint Business Centre
Swindon
SN5 7EX

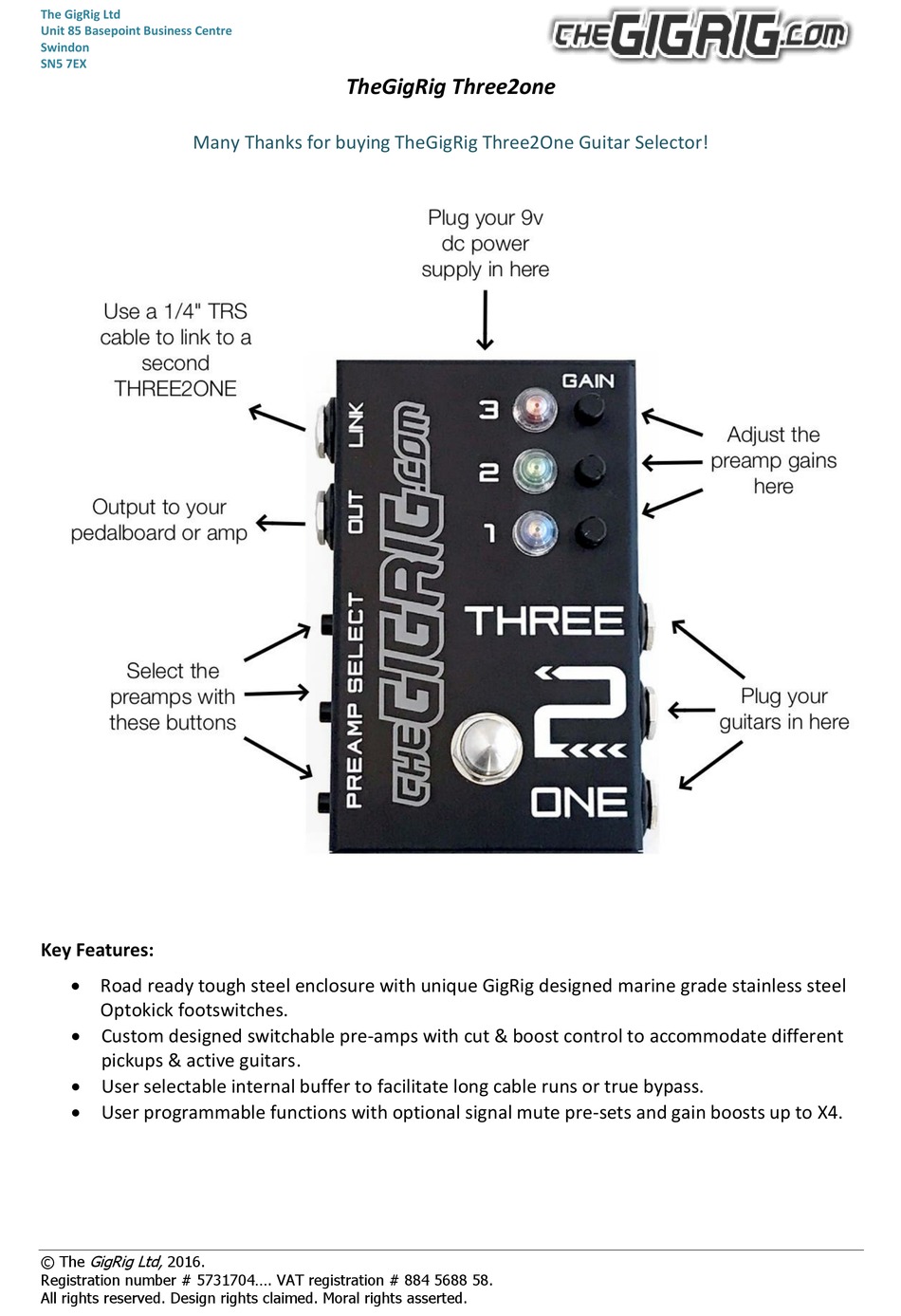

Many Thanks for buying TheGigRig Three2One Guitar Selector!

Key Features:

 Road ready tough steel enclosure with unique GigRig designed marine grade stainless steel
Optokick footswitches.
 Custom designed switchable pre-amps with cut & boost control to accommodate different
pickups & active guitars.
 User selectable internal buffer to facilitate long cable runs or true bypass.
 User programmable functions with optional signal mute pre-sets and gain boosts up to X4.
GigRig Ltd,
© The
2016.
Registration number # 5731704.... VAT registration # 884 5688 58.
All rights reserved. Design rights claimed. Moral rights asserted.

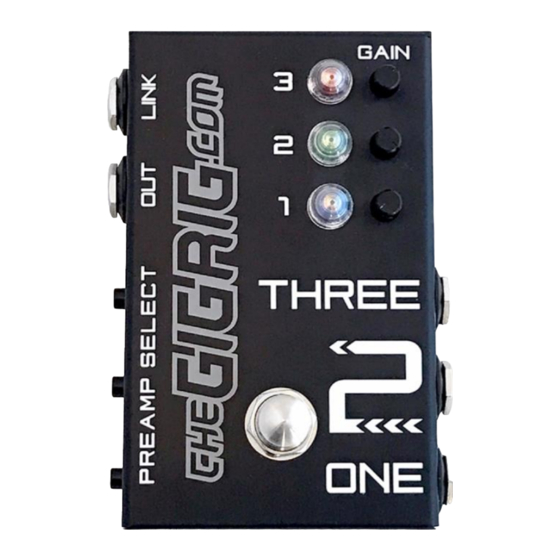

TheGigRig Three2one

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Three2one and is the answer not in the manual?

Questions and answers

Summary of Contents for The GigRig Three2one

  • Page 1 Unit 85 Basepoint Business Centre Swindon SN5 7EX TheGigRig Three2one Many Thanks for buying TheGigRig Three2One Guitar Selector! Key Features:  Road ready tough steel enclosure with unique GigRig designed marine grade stainless steel Optokick footswitches.  Custom designed switchable pre-amps with cut & boost control to accommodate different pickups &...
  • Page 2 To enter the Special Functions menu simply hold down the footswitch when applying power to the Three2one. You will then see some of the lights are on and others are off, this tells you the current configuration. To change the configuration, press the footswitch once.
  • Page 3 ‘on’ in the standard modes, but turning it off allows you to blend between the guitars which have the amplifier/ buffer in the signal path. This allows two or three guitars to be played at the same time though the Three2one, it will blend them together with the volume controls as balance controls.
  • Page 4 With the gain control turned all the way up there will be an increase in signal level of X4 instead of X2. *Note: This would limit the input handling; however, the X4 gain in the Three2one can still handle inputs of 4V signal peak to peak.
