Summary of Contents for Maytag LEGACY

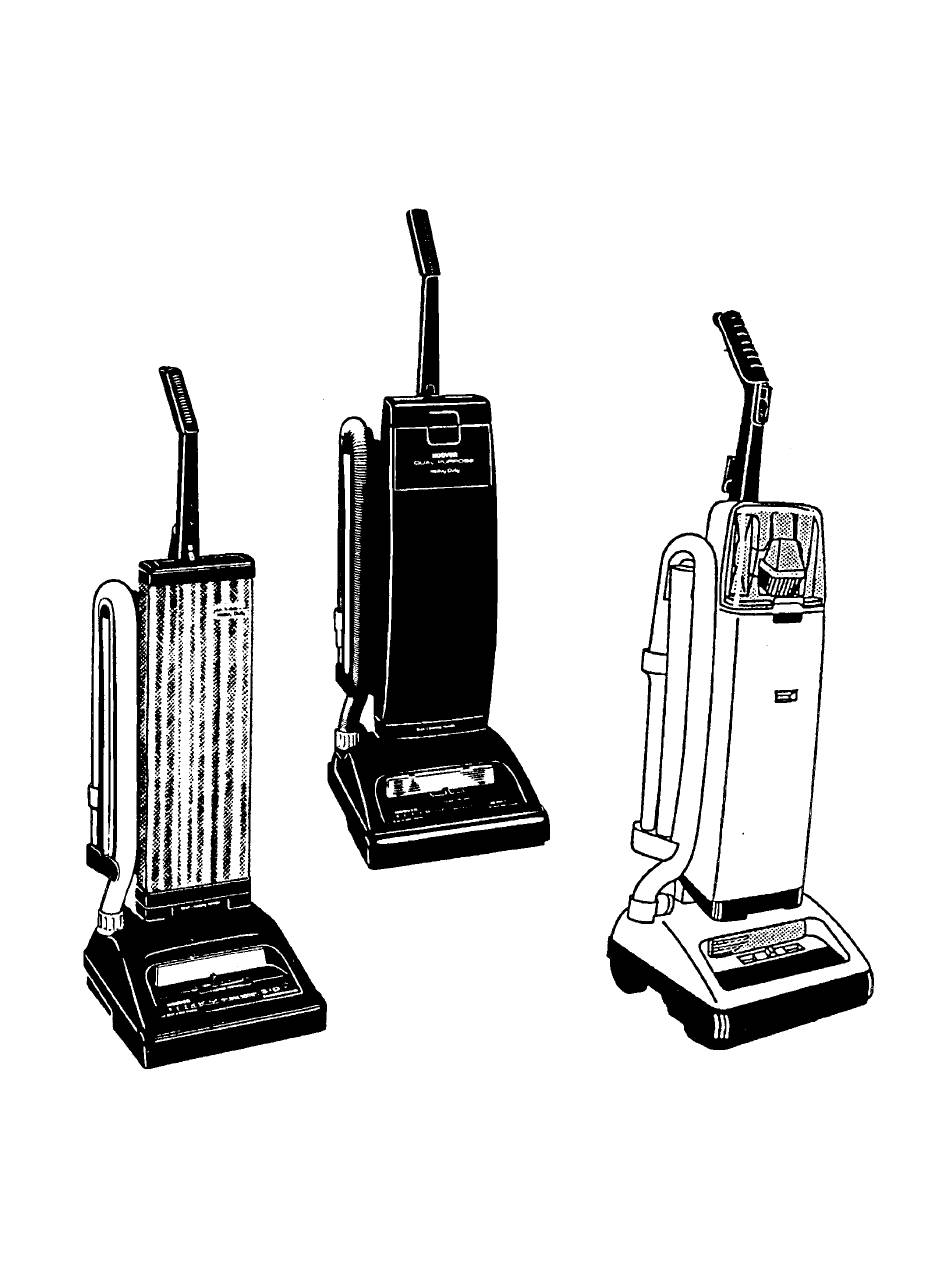

- Page 1 SERVICE INSTRUCTIONS LEGACY, LEGACY II, DIMENSION & DIRT FINDER CLEANERS Maytag Services 16025751...
- Page 2 Legacy/Legacy II...
- Page 3 Legacy - Hard Bag...
-
Page 5: Dirt Finder
Dirt Finder... - Page 6 The Legacy and Legacy II models use Type "A" top-fill disposable bags. The Dimension/Dirt Finder uses Type "Z" top-fill disposable bags.
- Page 7 2. Release outer bag retention clips (Legacy - 2 The embedded Dirt Finder system is powered by a upper, 2 lower; Legacy II - 2 upper, the 2 lower tabs regular 9V alkaline battery. The battery is located are there but are not fastened) ... grasp bag in a holder inside the bag compartment.
- Page 8 1. Unsnap hinges at base of door (where applicable to remove (Fig. 5D). Note: Units without bag door skip to Section D. B. Bag housing (Legacy II and Dimension) Bag housing/Dirt Finder circuitry (Dirt Finder) 2. Remove tool holder mounting screw (located in screw cavity under the dusting brush).
- Page 9 C. Dirt Finder circuitry At this point you can access the dirt finder circuitry. D. Switch This circuitry is housed in the bag housing. Fig. 5G is a cutaway view that illustrates positioning of the 1. Disconnect leads and snap switch out of bag components and switch from the back of the bag housing.
- Page 10 3. Remove cap. I. Jacket support - upper (Legacy, Legacy II models without air freshener dispenser). 1. Release 6 retention tabs on inside of jacket Note: It is important upon reassembly of the support upper and separate outer bag collar from microphone to firmly push the microphone into the jacket support.
- Page 11 (Fig. 13) in order to facilitate removal. 1. Remove attachment cord. a. Slide cord protector and connector out of handle NOTE: Early model Legacy II lower handle upon re-assembly, be sure to align the arrow on the...
- Page 12 assembly includes an integral muffler system. This system consists of a muffler louver, muffler foam and a muffler cover. All of these items are permanently attached to the lower handle so if a problem related to the system occurs the complete lower handle assembly must be replaced.
- Page 13 3. Pivot assembly upward and remove from unit. On Legacy units, you will encounter one of the two wheel arrangements illustrated below. (Fig. 21,22) Early Design Models produced prior to 4/8/91 lever positioned on O. Bottom plate outer edge of the support.
- Page 14 Lever Remove lever by unsnapping it out of the support. The spring on the cam is replaceable. T. Rear wheels R. Valve gate 1. Release the rear wheel shaft from the main body retention slots. (Fig. 25) 1. Remove bottom plate. 2.
- Page 15 4. Remover motor retainer right half and left half. (Fig. 27) Motor brush holder assembly 5. Lift motor off the main body. Check for the seal at the inlet to the fan chamber. This seal is friction (Replaced as an assembly which includes motor fit and slides out of the housing.
- Page 16 6. Remove field winding lead from switch terminal by uncrimping connection. 7. Remove switch by releasing switch pressure tabs and snapping switch out of holder. Note: When installing a new switch, the field winding lead must be securely crimped to the proper switch terminal.
- Page 17 IV. Troubleshooting check list - Legacy/Legacy II/Dimension/Dirt Finder The following is a guide to aid in determining the origin of a problem for which these models could conceivably be brought in for service. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION A. Motor won't 1.
- Page 18 This section addresses problems associated with the Dirt Finder feature in the Dirt Finder unit. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION A. Circuit board 1. 9V battery not installed. 1. Install battery and check operation. won't light 2. Low battery. 2. Change battery. 3.
