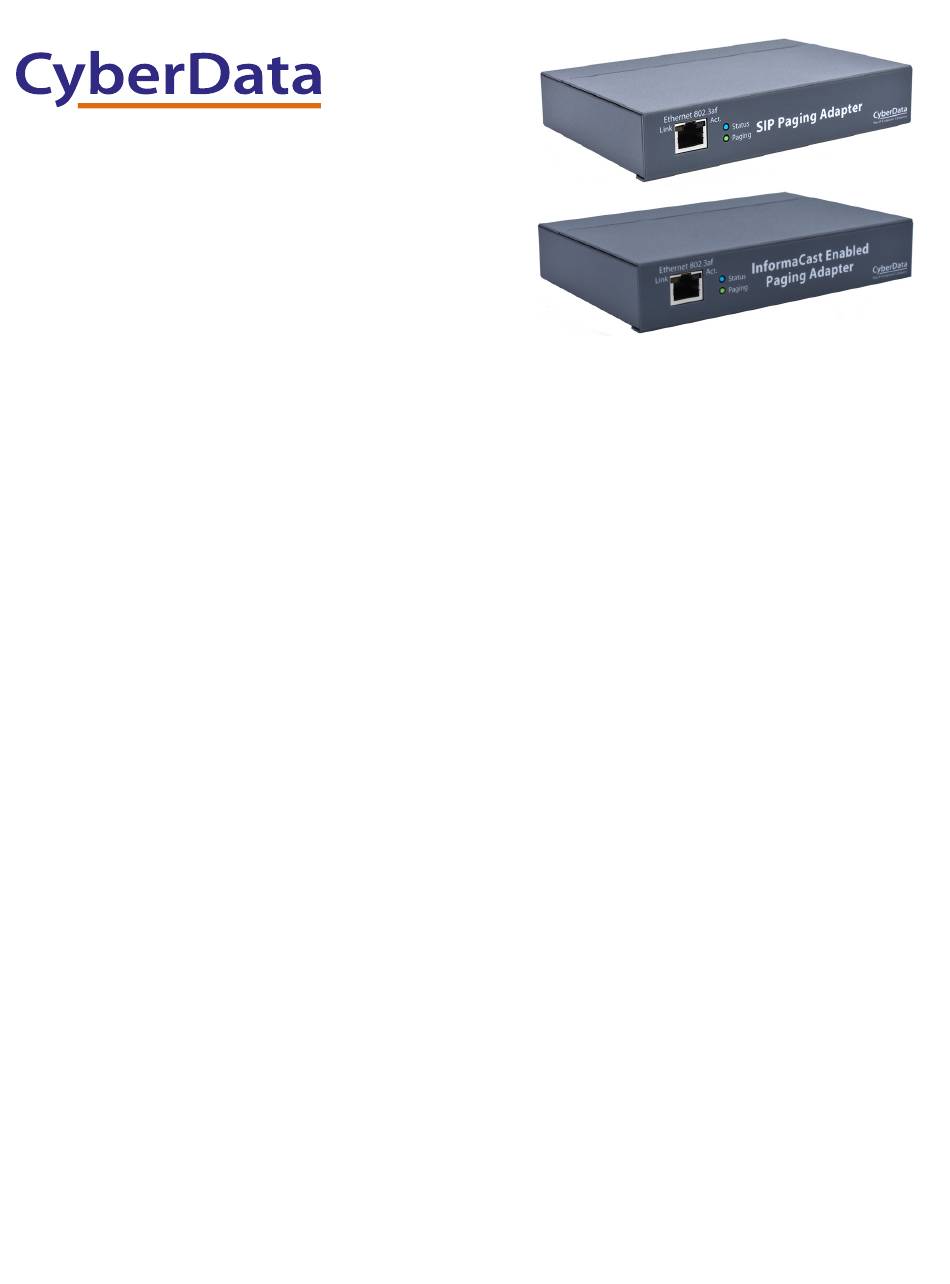

- Page 1 The IP Endpoint Company CyberData Paging Adapters Operations Guide SIP Compliant Part #011233, 011280 Document Part #932061A for Firmware Version 22.0.1 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Revision Information
Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 932061A Operations Guide... -
Page 4: Important Safety Instructions
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT CyberData Corporation 932061A Operations Guide... -
Page 5: Abbreviations And Terms
Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol SRTP Secure Real Time Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol CyberData Corporation 932061A Operations Guide... -
Page 6: Table Of Contents
1.11 Terminus ..........................20 1.12 Autoprovisioning ........................21 1.13 Firmware ..........................22 1.14 Admin ...........................23 1.15 Command Interface ......................24 1.15.1 Command Interface Post Commands ................24 Appendix A Troubleshooting/Technical Support A.1 Contact Information ........................25 A.2 Warranty and RMA Information ....................25 CyberData Corporation 932061A Operations Guide... -
Page 7: Chapter 1 Configure The Device
Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products. CyberData’s VoIP Discovery Utility program is available at the following website address: https://www.cyberdata.net/pages/discovery... -
Page 8: Restoring Defaults And Announcing The Ip Address
Table 1-1. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 192.168.1.23 Web Access Username admin Web Access Password admin Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 a. Default if there is not a DHCP server present. CyberData Corporation 932061A Operations Guide... -
Page 9: Home Page
The Home page provides device specific information such as Serial Number, Mac Address, and Firmware version. This page is designed as an initial landing page to provide general information on the status of the device. Figure 1-3. Home Page CyberData Corporation 932061A Operations Guide... - Page 10 Configure the Device Home Page If you are using an InformaCast enabled device, you will see the following: Figure 1-4. InformaCast enabled Device CyberData Corporation 932061A Operations Guide...
-
Page 11: Device
The Device page allows for adjustment of settings that pertain to the physical device such as relay settings and time zone. Figure 1-5. Device Configuration Page If you are using an InformaCast enabled device, you will see the following: Figure 1-6. InformaCast enabled Device CyberData Corporation 932061A Operations Guide... -
Page 12: Network
Configure the Device Network 1.4 Network The Network tab provides access to network-related settings. Assigning the device a static IP address or VLAN is done on this page. Figure 1-7. Network Page CyberData Corporation 932061A Operations Guide... -
Page 13: Sip (Session Initiation Protocol)
Use this page to configure the options for security, transport, codec, and others. Note For specific server configurations, go to the following website address: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Figure 1-8. SIP Page If you are using an InformaCast enabled device, you will see the following: Figure 1-9. InformaCast enabled Device CyberData Corporation 932061A Operations Guide... -
Page 14: Dial Out Extension Strings And Dtmf Tones (Using Rfc2833)
1 second. 1.5.2 Point-to-Point Configuration Dialing point-to-point allows the device to call and a single endpoint. All CyberData endpoints and many phones can use this option. To do this, enable SIP Operation, do not enable SIP Registration, and use the endpoint's IP address as the Dial Out extension. Delayed DTMF is supported. -
Page 15: Ssl
SIP Client, and Autoprovisioning can be changed here. It is also possible to add additional CA certificates on this page. CA Certificates allow the device to authenticate servers that it contacts. Figure 1-11. SSL Page (1 of 2) CyberData Corporation 932061A Operations Guide... - Page 16 Configure the Device Figure 1-12. SSL Page (2 of 2) CyberData Corporation 932061A Operations Guide...
-
Page 17: Multicast
The Multicast Configuration page allows the device to join up to ten paging zones for receiving RTP audio streams. A paging zone can consist of one or many CyberData multicast group-enabled products. There is no limit to how many speakers can participate in a given paging zone. Each multicast group is defined by a multicast address and port number. -
Page 18: Fault
The Fault page controls configuration of all Fault or sensor-related capabilities of the unit. This can include the fault sensor that is used to have the device take action based on a physical input to the device. Figure 1-14. Fault Page CyberData Corporation 932061A Operations Guide... -
Page 19: Audiofiles
To configure stored messages, an audio file must be uploaded, using Choose File and Save. The number of repeats can be specified or set to infinite (where the message plays until cancelled by the # button during a phone call). Figure 1-15. Audiofiles Page (1 of 3) CyberData Corporation 932061A Operations Guide... - Page 20 Configure the Device Audiofiles Figure 1-16. Audiofiles Page (2 of 3) CyberData Corporation 932061A Operations Guide...
- Page 21 Configure the Device Audiofiles Figure 1-17. Audiofiles Page (3 of 3) CyberData Corporation 932061A Operations Guide...
-
Page 22: Events
The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the device. Figure 1-18. Events Page If you are using an InformaCast enabled device, you will see the following: Figure 1-19. InformaCast enabled Device CyberData Corporation 932061A Operations Guide... -
Page 23: Example Packets For Events
Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"... - Page 24 Configure the Device Events Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
- Page 25 Configure the Device Events Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
-
Page 26: Terminus
Configure the Device Terminus 1.11 Terminus The Terminus page allows for configuration of settings related to Terminus. Figure 1-20. Terminus Page CyberData Corporation 932061A Operations Guide... -
Page 27: Autoprovisioning
Autoprov autoupdate, Autoprov at time, and Autoprov when idle options are available with either DHCP or a named server. The template is an xml file with all options set to default values. Figure 1-21. Autoprovisioning Page CyberData Corporation 932061A Operations Guide... -
Page 28: Firmware
To upgrade the firmware of your device: 1. Download the latest firmware from the following CyberData web site, and locate your device: https://www.cyberdata.net/collections/sip 2. Unzip the firmware version file. This file may contain the following: •... -
Page 29: Admin
Configure the Device Admin 1.14 Admin Figure 1-23. Admin Page The administrator uses the Users List to create new accounts, assigning user names and passwords, and granting access to specific web pages. CyberData Corporation 932061A Operations Guide... -
Page 30: Command Interface
/dev/null --no-check-certificate "https://10.10.1.247/command" -- post-data "request=test_audio" Swap Boot partitions wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.10.1.81/command" -- post-data "request=swap_boot_partition" a.Type and enter all of each http POST command on one line. CyberData Corporation 932061A Operations Guide... -
Page 31: Appendix A: Troubleshooting/Technical
Support form at the following website: https://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting. - Page 32 SIP (Session Initiation Protocol) 7 rfc2833) 8 SSL 9 Discovery Utility program 1 Terminus 20 Events 16 Troubleshooting/Technical Support 25 Fault 12 Warranty and RMA Information 25 Firmware 22 Home Page 3 Log In Page 1 CyberData Corporation 932061A Operations Guide...
