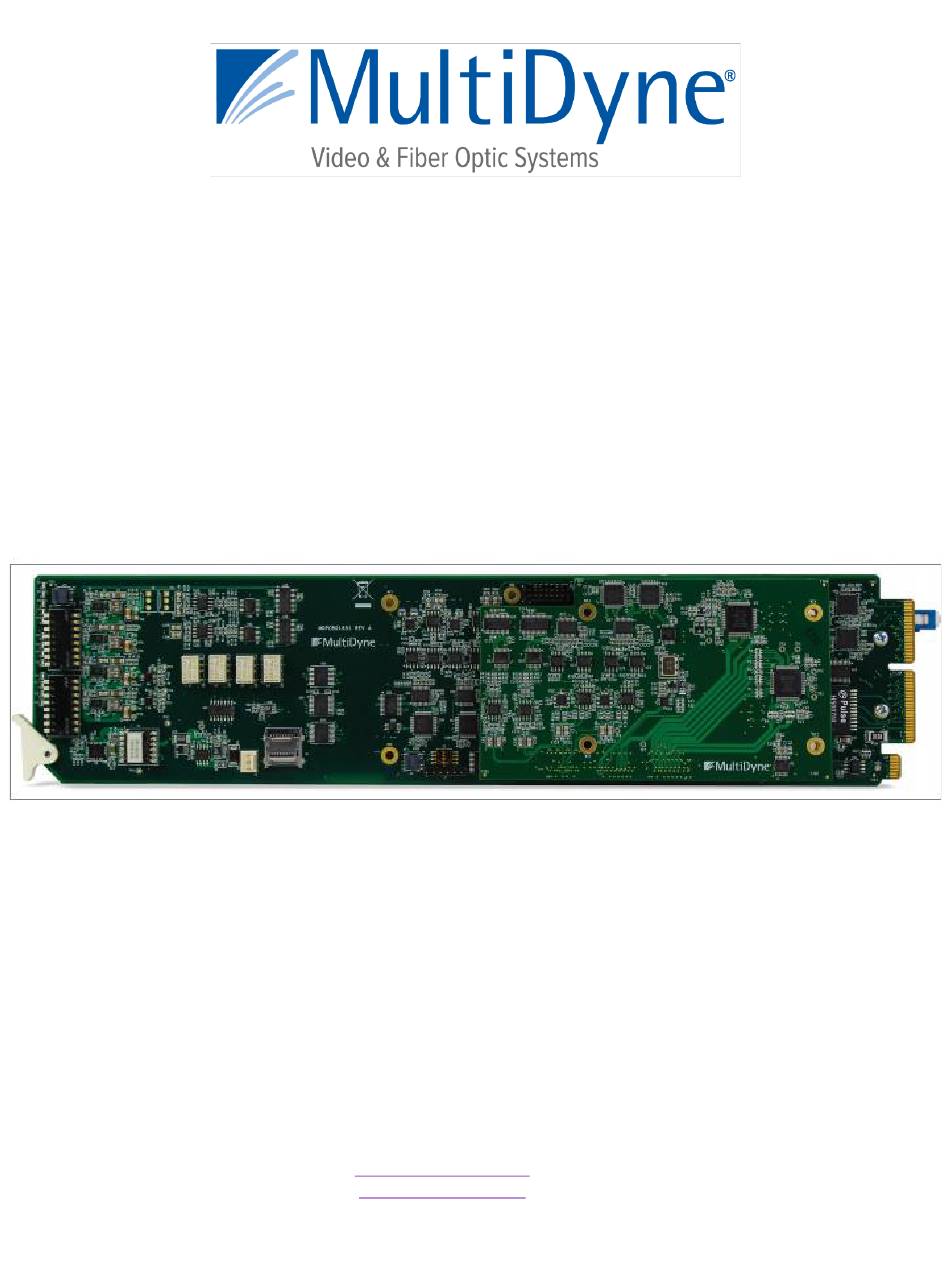

- Page 1 OG4600 Series Fiber Transport Cards USER MANUAL 252 INDIAN HEAD RD, KINGS PARK, NY 11754 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com www.multidyne.com...
-
Page 2: Table Of Contents
Table of Contents Document Revisions ..........................2 Safety Info ............................. 3 Laser Safety Information ........................4 Overview ............................5 Transport Specifications ......................... 6 SDI Transport ......................... 6 Audio Transport ........................6 Serial Data Transport ......................6 Tally/GPIO Transport......................7 Timecode Transport ....................... 7 Reference Transport ...................... -
Page 3: Document Revisions
J14 - Serial Data Connector Pinout ..................24 J15 - GPIO Connector Pinout ....................25 RJ-45 GPIO Connector for 4610 ..................25 Technical Specifications ....................... 26 Contact Support ..........................28 Copyrights ............................ 28 Document Revisions Revision Description Date Author Initial 14-August-2024 Khalid Waleed P a g e... -
Page 4: Safety Info
• Only use attachments/accessories specified by MultiDyne®. • Use only with the cart, rack, stand, tripod, bracket, or table specified by MultiDyne®, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 5: Laser Safety Information
• Connect the unit only to a power source with the specified voltage rating. • Unless otherwise stated in the Installation Instructions, and in adherence to local Electrical Codes MultiDyne® Equipment should only be plugged into a standard 15-amp dedicated circuit. Laser Safety Information This unit is classified as a CLASS 1 LASER PRODUCT according to EN60825-1 (EU) and FDA 21CFR 1040.10 (USA). -
Page 6: Overview
OVERVIEW Overview The OG4600 series modules for the openGear platform provide flexibility for fiber transport needs. Signals are transported uncompressed and unprocessed for maximum signal integrity. Compatible with the openGear platform, offering SNMP management via Dashboard software. Model Number Description Four-channel SDI, Audio, Data, Timecode, Reference, GPIO, Analog Video OG4601 and Ethernet fiber transport... -
Page 7: Transport Specifications
TRANSPORT SPECIFICATIONS Transport Specifications SDI Transport The OG4600 series supports up to 4 channels of 12G SDI video. The number of channels and their direction vary based on the card model. SMPTE standards supported include: • ST292 (HD) • ST424 (3G) •... -
Page 8: Tally/Gpio Transport
TRANSPORT SPECIFICATIONS • S3-1 to S3-6: Data Format Selection S3-1: Data 1 Format Select Bit 0 ▪ OFF (Up) = RS232 ▪ ON (Down) = RS422 S3-3: Data 2 Format Select Bit 0 ▪ OFF (Up) = RS232 ▪ ON (Down) = RS422 S3-5: Data 3 Format Select Bit 0 ▪... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Installation Instructions Installing a Rear Module Before proceeding with the instructions in this chapter, ensure that your openGear frame is properly installed according to the instructions in the OG3-FR Series User Manual. Static Discharge Warning Please heed to the following cautionary note throughout the chapter: ESD Susceptibility –... -
Page 10: Installing The Og4600 Series In An Opengear Frame
INSTALLATION INSTRUCTIONS 5. Using a Phillips screwdriver and the supplied screw, fasten the Rear Module to the back plane of the frame. Do not overtighten. 6. Ensure proper frame cooling and ventilation by having all rear frame slots covered with Rear Modules or Blank Plates. -
Page 11: Configuration
CONFIGURATION Configuration DashBoard Control The DashBoard control provides a graphical user interface for managing the configuration of the OG4600 series cards. Using DashBoard, users can configure settings, monitor signal status, and update firmware. The DashBoard GUI offers tabs for each type of configuration, such as Audio, Data, and SDI. -
Page 12: Card Setup
CONFIGURATION Card Setup If DashBoard control is disabled (DIP switch S3-8 is in the UP position), configuration of the card settings is made using the DIP switches on the card. This section provides the configuration settings for the OG4600 series. Before installing the OG4600 card, it is crucial to determine whether to allow changes to the card’s configuration via the DashBoard GUI or use the DIP switches on the card for... -
Page 13: Data Configuration
CONFIGURATION When DashBoard control is enabled, audio input and output formats can be configured via the Audio Tab in the card’s DashBoard menu page. All settings made through the GUI are stored in non-volatile memory and restored upon power-up. Data Configuration The OG4600 series cards support up to 3 channels of serial control data bi-directionally. - Page 14 CONFIGURATION When DashBoard control is enabled, data format selection is made via the Data Tab in the DashBoard menu. All settings are stored in non-volatile memory and restored upon power-up. The OG4600 series cards can be wired externally to support point-to-point 2-wire RS485 serial communications when set to the RS422 format.
-
Page 15: Sdi Re-Clocker Bypass Configuration
CONFIGURATION SDI Re-clocker Bypass Configuration If DashBoard control is disabled (DIP switch S3-8 is in the UP position), bypass configuration of the SDI re-clockers is made using switch #7 on DIP switch S3. This DIP switch is located at the front edge of the card. - Page 16 CONFIGURATION This configuration allows for flexibility in managing the re-clocking of SDI signals, providing the option to either use the default re-clocking functionality or bypass it as needed for specific operational requirements. 15 | P a g e...
-
Page 17: Rear Panel Layouts
REAR PANEL LAYOUTS Rear Panel Layouts The rear panels for the OG4600 series are designed to provide various connectivity options depending on the specific model. The standard components found on most rear panels include: • CVBS OUT • SDI IN/OUT •... - Page 18 REAR PANEL LAYOUTS OG-4602 R6-4602-2AB-ST R6-4602-1R-ST R6-4602-12-ST R6-4602-1AB-ST R6-4602-4R-ST R6-4602-4T-ST 17 | P a g e...
- Page 19 REAR PANEL LAYOUTS R6-4602-1T-ST R6-4602-21-ST OG-4603 R6-4603-4T-ST R6-4603-4R-SC R6-4603-2AB-ST R6-4603-1T-LC R6-4603-4R-ST R6-4603-1AB-ST 18 | P a g e...
- Page 20 REAR PANEL LAYOUTS R6-4603-1R-ST R6-4603-1T-ST R6-4603-1R-LC OG-4607 R2-4607-4T-ST R2-4607-4R-ST R2-4607-2AB-ST2- R2-4607-1R2 19 | P a g e...
- Page 21 REAR PANEL LAYOUTS R2-4607-1AB-ST R2-4607-2AB-ST R2-4607-1T R2-4607-2AB-LC OG-4608 R2-4608-1T-LC R2-4608-4R-ST R2-4608-2AB-ST2- R2-4608-2AB-ST 20 | P a g e...
- Page 22 REAR PANEL LAYOUTS R2-4608-4T-ST R2-4608-1R-ST R2-4608-1AB-ST R2-4608-1T-ST OG-4610 R2-4610-4T R2-4610-4R R2-4610-3R R6-4610-2R-LC 21 | P a g e...
- Page 23 REAR PANEL LAYOUTS R2-4610-1R R2-4610-2AB R6-4610-1R-LC R6-4608-2AB-LC R2-4610-1AB 22 | P a g e...
-
Page 24: Rear Panel Pinouts
REAR PANEL PINOUTS Rear Panel Pinouts J11 – Audio Input Connector Pinout (Follows Tascam Analog Convention) Analog Analog Number AES Pinout Number AES Pinout Pinout Pinout Ch 8 Input + Ch 8 Input - AES 7/8 Ground Ground Ch 7 Input + Input + AES 7/8 Ch 7 Input -... -
Page 25: J12 - Audio Output Connector Pinout (Follows Tascam Analog Convention)
REAR PANEL PINOUTS J12 – Audio Output Connector Pinout (Follows Tascam Analog Convention) Analog Analog Number Number AES Pinout Pinout Pinout Pinout Ch 8 Output+ Ch 8 Output- AES 7/8 Ch 7 Output+ Output+ AES 7/8 Ch 7 Output- Output- Ch 6 Output+ Ch 6 Output- AES 5/6... -
Page 26: J15 - Gpio Connector Pinout
REAR PANEL PINOUTS J15 - GPIO Connector Pinout Number Description Number Description Tally Output GPI Input 3 GPO Output 1 GPO Output 2 GPO Output 3 +12VDC Output Tally Input GPI Input 1 HDB15-F GPI Input 2 RJ-45 GPIO Connector for 4610 Function D1 TXD OUT+ D1 TXD OUT-... -
Page 27: Technical Specifications
TECHNICAL SPECIFICATIONS Technical Specifications Digital Video Number of Inputs Up to 42 Number of Outputs Up to 42 Data Rates 270Mbps, 1.5Gbps, 3Gbps, 6 Gbps, 12Gbps Input/Output Level 800mVp-p Input/Output 75 Ohms Impedance >15 dB 5 MHz - 1.485 GHz Return Loss >10 dB up to 3 GHz Jitter... - Page 28 TECHNICAL SPECIFICATIONS Optical Operating Wavelengths 1471-1611nm Tx Laser Output Power 0dBm nominal (Class 1 Laser) Receiver Sensitivity -20dBm Fiber Compatibility Single-mode Optical Connector Types ST, SC, LCG Distance limit 240km w/Single-mode (<= 3Gbps) Mechanical/Environmental 3.025H” x 12.75L” x 1 or 3 Standard Density Slots Dimensions (HxLxW) openGear Form Factor Environmental...
-
Page 29: Contact Support
This document and the information contained herein are the property of MultiDyne. and are provided solely for the purpose of operating and maintaining MultiDyne products. No part of this document may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of MultiDyne, except for the use of brief quotations in a review.
