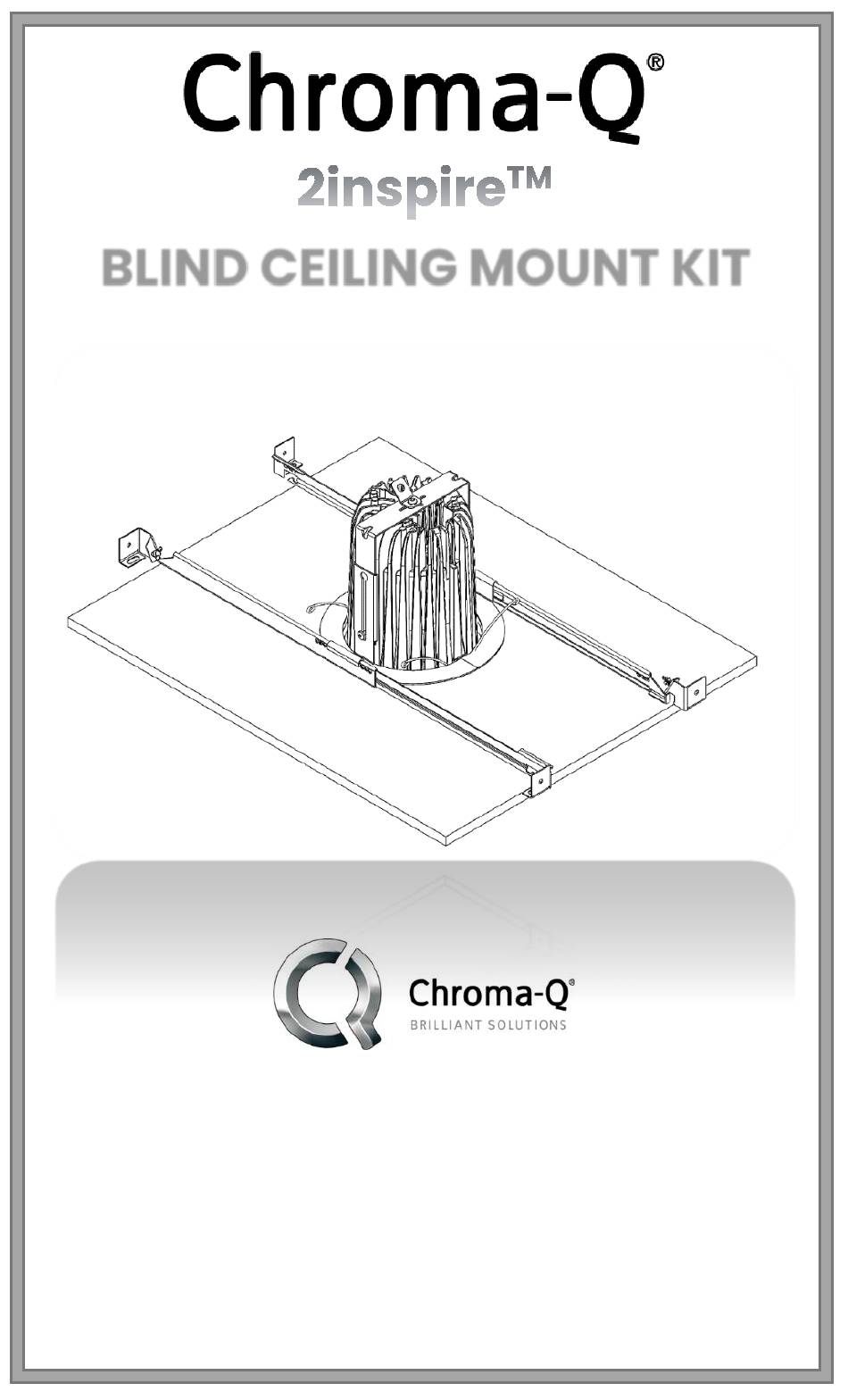

BLIND CEILING MOUNT KIT
For a full product manual please visit www.chroma-q.com
Part Number: CQ1509-9116, CQ1509-9117, CQ1509-9118, CQ1509-9119
CQ1509-9216, CQ1509-9217, CQ1509-9218, CQ1509-9219
CQ1509-9316, CQ1509-9317, CQ1509-9318, CQ1509-9319
BLIND CEILING MOUNT 2inspire
Installation Guide
Model: 1509-9116, 1509-9117, 1509-9118, 1509-9119
1509-9216, 1509-9217, 1509-9218, 1509-9219
1509-9316, 1509-9317, 1509-9318, 1509-9319
Installation Guide V1.0
TM
For use with
ISG P/N: 1509-0713
Advertisement
Related Manuals for Chroma 2inspire 1509-9116
Summary of Contents for Chroma 2inspire 1509-9116
- Page 1 BLIND CEILING MOUNT KIT Installation Guide For a full product manual please visit www.chroma-q.com For use with Part Number: CQ1509-9116, CQ1509-9117, CQ1509-9118, CQ1509-9119 CQ1509-9216, CQ1509-9217, CQ1509-9218, CQ1509-9219 CQ1509-9316, CQ1509-9317, CQ1509-9318, CQ1509-9319 Model: 1509-9116, 1509-9117, 1509-9118, 1509-9119 1509-9216, 1509-9217, 1509-9218, 1509-9219...
- Page 2 Bill of Materials: BLIND CEILING MOUNT BLIND CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0713...
-
Page 3: Package Contents
Package Contents: 2. Tools Required: ➢ Phillips-head screw driver (Minimum torque: 5.5 in-lb / 0.62N·m) ➢ 3mm Allen key ➢ Ceiling cut out sizes for 2inspire 300, 2inspire 200 and 2inspire 100 respectively as shown in the picture below: ➢ ➢... -
Page 4: Installation Procedure
3. Installation Procedure: Insert the Wing Screw (440-1510-0) and place the Rails (1509-0315 & 1509- 0320) inside the ceiling as shown in the picture below: Mount the Mounting Bracket (P/Ns with sizing refer to BOM on page 2) on the fixture and slide the fixture over the ceiling cut out. Attach the Circular Bracket (P/Ns with sizing refer to BOM on page 2) on both... - Page 5 Insert the spring hooks of the Trim Ring (P/Ns with sizing refer to BOM on page 2) inside the tabs provided on the circular bracket and push the trim ring up to the ceiling, securing it in place. The Circular Bracket should sit flush on the ceiling. The Fixture should leave a slight gap between the Circular Bracket and the ceiling so that when securing the Trim Ring into the Fixture, it sits firm against the ceiling.
- Page 6 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the Chroma-Q sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
