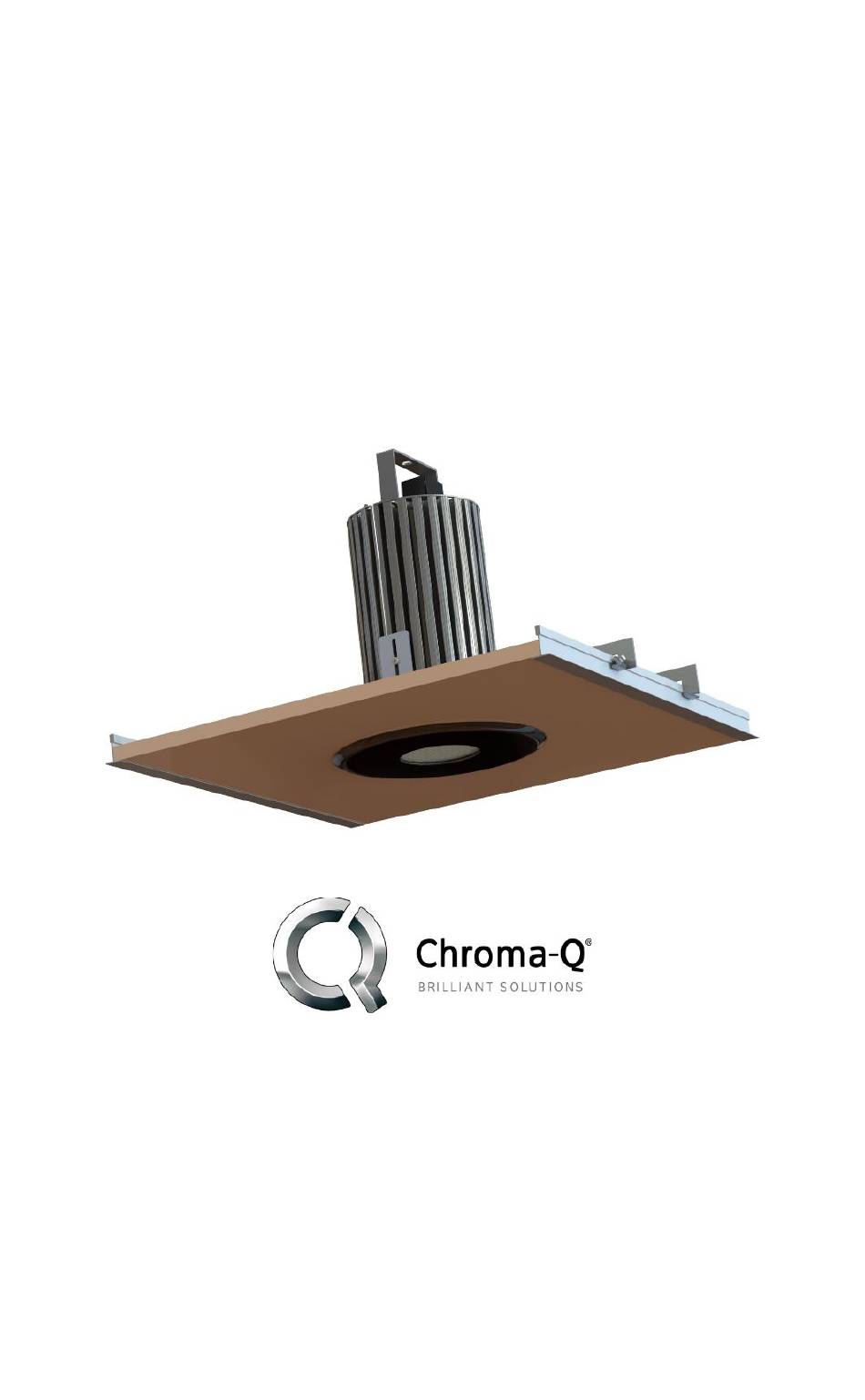

- Page 1 Quick Start Guide ® Chroma-Q Inspire™ Ceiling Mount For a full product manual please visit www.chroma-q.com Part Number: CQ632-9060, CQ632-9061 632-9060, 632-9061 Model: For use with Part Number: CHINHL[xxxx] Model: 632-XXXX Inspire Ceiling Mount V1.0 QSG P/N: 632-0722...
- Page 2 Installation Disclaimer: Installation should be carried out by an experienced professional. The instructions below are provided for information only. All work should be verified to meet Local and National Building Regulations, and Health and Safety Standards in particular. Ensure that the specified torque is applied to fasten the Slide Brackets and Angle Supports.
- Page 3 Installation Guide Φ 4.1” TRIM Φ 11.0” RING ID TRIM Hole Sizing Reference (inches/cm) RING Note: 8.7” / 22 cm - Ceiling hole size: - Trim Ring outer diameter: 12” / 28 cm - Trim Ring inner diameter: 4.1” / 10.5 cm Φ...
- Page 4 5. Place the assembled kit and fixture on the ceiling. Ensure the fixture and the ceiling hole are co-centric. Clamp the angle bracket to the ceiling (clamping hardware is not supplied). 6. If the ceiling has rails, ensure the rails are inside the Angle Support’s [2] grooves.
- Page 5 If you experience any difficulties with any Chroma-Q products please contact your selling dealer. If your selling dealer is unable to help, please contact support@chroma-q.com. If the selling dealer is unable to satisfy your servicing needs, please contact the following for full factory service: Outside North America:...
