Bells Of Steel MOUNTAIN-BTZ-TRDML Assembly Instructions Manual

Blitz mountain climber treadmill
Hide thumbs Also See for MOUNTAIN-BTZ-TRDML:

Advertisement

Table of Contents

BLITZ MOUNTAIN CLIMBER TREADMILL
SKU: MOUNTAIN-BTZ-TRDML

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNTAIN-BTZ-TRDML and is the answer not in the manual?

Questions and answers

Related Manuals for Bells Of Steel MOUNTAIN-BTZ-TRDML

Summary of Contents for Bells Of Steel MOUNTAIN-BTZ-TRDML

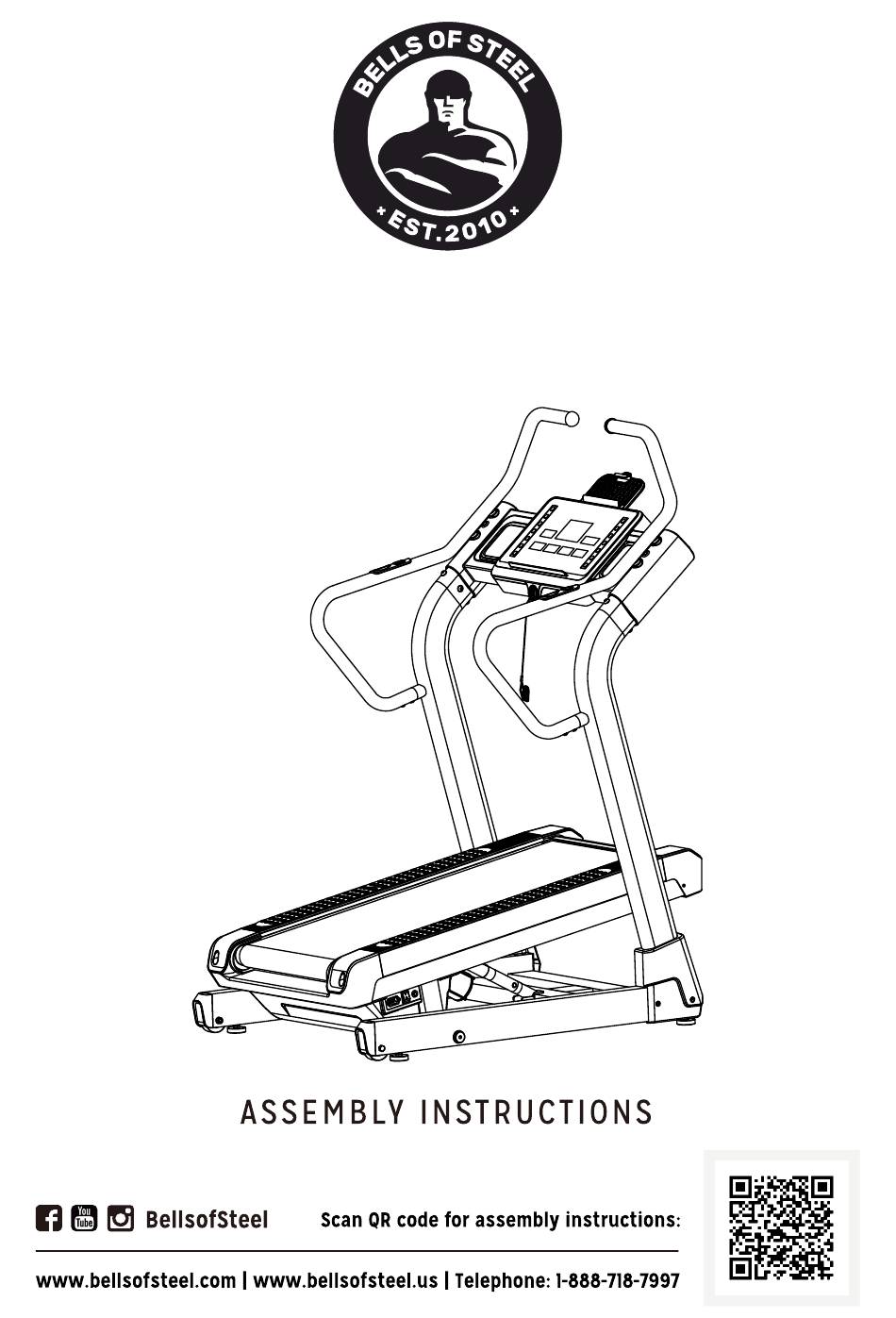

  • Page 1 BLITZ MOUNTAIN CLIMBER TREADMILL SKU: MOUNTAIN-BTZ-TRDML...
  • Page 3 1. All users of the equipment should read this manual resistance lever to a STOP position prior to before using the machine to ensure proper use of dismounting. the equipment in a safe manner. All users should NOTE: Belt may still move slightly when lever is obtain a complete physical examination from their in a STOP position.
  • Page 5 WARNING ----When using this treadmill, keep attaching the safety key rope to your clothes. ----When you are running, keep your hands swinging naturally, your eyes staring frontward and never look down at your feet. ----Increase the speed step by step when running. ----When emergency happens, take away the “safety key”...

  • Page 6: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be grounded. If it has breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. 2.

  • Page 7: Assembly Steps

    ASSEMBLY STEPS STEP 1: Open the package, take out the following parts and place the main frame flat on the ground. STEP 2 1. Connect Computer middle wire(84) and Computer middle and lower wire(85). 2. Pre-lock Upright tube(3L/R) to the bottom frame(1) with Inner-hex bolt M10*20(40) and Serrated lock washerφ10*1.2(69)(Note:do not clamp the wires), Inner-hex bolt M10*20 (40) is not locked.
  • Page 8 STEP 3: 1. Connect Computer upper wire(83) and Computer middle wire(84). 2. Lock Computer frame(4) to Upright tube(3L/R) with Inner-hex bolt M10*20(40) and Serrated lock washer φ10*1.2(69) (Note: do not clamp the wires).
  • Page 9 STEP 4: 1. Insert Armrest(5L/R) into the armrests connecting tubes of Upright tube(3L/R); 2. Connect the corresponding lines of handle pulse upper wire(87) and handle pulse lower wire(88), shortcut key upper wire(89) and shortcut key lower wire(90), and insert the line connectors into the holes of Computer frame(4) in turn;...
  • Page 10 STEP 5: 1. Lock all the Inner-hex bolts M10*20(40) that are not locked; 2. Insert I-pad up cover(26) into Computer frame(4), and then lock I-pad up cover(26) to Computer frame(4) by using Phillips screw M5*8(57); 3. Lock Bottom frame protective cover(24L/R) on the Bottom frame(1) with Phillips tapping screw ST4*16(60);...

  • Page 11: Grounding Methods

    GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
  • Page 12 OPERATION INSTRUCTIONS Window and Key Description： 1. The LED window displays the following functions： A. Point array window：Standby or select the three inverted modes of time, distance and calories; display the speed dot matrix diagram when selecting the program; display fat measurement mode and error.
  • Page 13 F. Incline +、 -： In the set state, the key will increase or decrease the set value. When the motor is running, the button will increase or decrease the lifting. G. Speed shortcut key：3、5、8KM/H， When the motor is running, the key will adjust the motor speed directly to the speed value identified on the key.
  • Page 14 G. When the set time decreases to zero, or when the set calorie decreases to zero, or when the set distance decreases to zero, the peak song generator short Bi-Bi-Bi, the speed slowly decreases until stop, the peak song generator long Bi-Bi-Bi, the dot window displays End, 5 seconds back to standby, the peak song generator long Bi-Bi;...
  • Page 15 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Custom Programs： In addition to 12 built-in programs of the system, the Treadmill also has three user-defined programs that allow users to set up according to their personal conditions: U01, U02, U03。...
  • Page 16 Safe lock function viii. Pull off the safety lock in any state，window display “----/---”，Dot matrix window moving display “SAFETY KEY DISCONNECTED”，The buzzer emits a short sound Bi-Bi-Bi。If the motor is running, the motor will come to an emergency stop. When the safety lock is detached, any buttons are invalid.
  • Page 17 FitShow App create an account STEP1: Download FitShow App and STEP2: Choose your equipment type for your workout...
  • Page 18 STEP3: Make sure the equipment tab on the workout page matches your equipment STEP4: Go to the “Workout” page and click on the the “Quick Start” button...
  • Page 19 STEP5: After searching, you should see your equipment's name appear on the equipment list. click on the “Connect” next to your equipment's name STEP6: In the workout screen, swipe down for settings and swipe up for control...
  • Page 20 STEP7: Click on the screen to end the workout (Other modes are the same as above)
  • Page 21 Kinomap STEP1: Download Kinomap app and create an account STEP2: Go to the "More" page and click on the "Equipment Management" button...
  • Page 22 STEP3: Click on the "+" button in the top right corner to add a new equipment STEP4: Select the machine type that you are going to use...
  • Page 23 STEP5: Select the brand of FitShow or FTMS STEP6: Select your model in the list below...
  • Page 24 STEP7: Enter the brand and model of your equipment STEP8: Equipment add success...
  • Page 25 STEP9: Go to Browse page to start your favorite workout...
  • Page 26 ZWIFT STEP1: Download ZWIFT app and create an account STEP2: Select "RIDE" or "RUN" mode STEP3: If your equipment is a treadmill, click on the “RUN SPEED” button...
  • Page 27 If your equipment is an indoor bike, click on the “POWER SOURCE” button STEP4: Select the paired devices 'Fs-XXXX...' as our chip's name; (XXX... means random digit) STEP5: Click on the“LET`S GO”button...
  • Page 28 STEP6: Find related map to start your favorite workout...

  • Page 29: Exercise Instructions

    EXERCISE INSTRUCTIONS 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below.

  • Page 30: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS WALKING BELT CENTERING AND TENSION ADJUSTMENT DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive roller wear. TO CENTER WALKING BELT: ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ●...
  • Page 31 CLEANING General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. This reduces the build up of foreign material underneath the walking belt.

  • Page 32: Exploded Drawing

    EXPLODED DRAWING...

  • Page 33: Parts List

    PARTS LIST Part Part Description Description Bottom frame Socket head cap bolt M6*15 inner-hex flat head bolt M8*15 Main frame Inner-hex sunk bolt M6*30 3L/R Upright tube 1pr. Inner-hex sunk bolt M6*25 Computer frame Cross sunk head screw M3*15 5L/R Armrest 1pr.
  • Page 34 hole wire Computer upper wire Cushion Computer middle wire Oil hole plug Computer middle and lower wire Roller Computer lower wire Plastic cushion handle pulse upper wire Inner-hex bolt M10*20 handle pulse lower wire Hex bolt M10*65 Shortcut key upper wire Hex bolt M10*45 Shortcut key lower wire Hex bolt M10*60...
