SafeGuard LRA-D1000-L User Manual

Advertisement

Quick Links

LRA-D1000-L
Introduction
The LRA-D1000S is a wireless door chime comprising two components: the
LRA-PBTXA-L wireless push button (transmitter) and the LRA-DCRXSA-L
door chime (receiver.)
Helpful Notes
The factory programs the push button to the receiver. Test before
programming & mounting the push button to the wall.
The push button is outdoor rated. Dimensions: 2.5'' L x 1.2'' W x 4.72'' H.
When the push button is triggered (the center push button is pressed), the
center halo will illuminate brightly for approximately 2 seconds (see Figure
2).
Each LRA-DCRX-L (receiver) can pair with four wireless transmitters.
The receiver has a volume control knob (see Figure 3).
The LRA-DCRX-L (receiver) has three operational modes: strobe only,
sound only, and strobe + sound (see Figure 3).
Assign one (1) of thirty-two (32) available melodies to each transmitter
Once four (4) transmitters have been paired to a receiver, you cannot add
one unless you delete the existing transmitters from memory.
There is no limit to the number of receivers you can pair with a transmitter.
An LRA transmitter's range (line of sight) to the receiver is 1,000 ft.
Push Button Battery Installation:
This product contains a coin battery that could be dangerous to children.
*
Please review the warnings at the end of this manual regarding the batteries.
1
LRA-D1000-L User Manual
1. Flip over the push button so the back mounting plate faces you. (see figure
1).
2. Use your finger to unlock the lock lever on the back mounting plate.
3. Rotate the mounting bracket 90 degrees (parallel to the ground).
4. Separate the mounting bracket from the rest of the unit.
5. Using a coin, rotate the battery cover counterclockwise.
6. Insert a CR2032 battery into the battery compartment provided.
7. Replace the battery cover. Using a coin, twist it clockwise to lock it into
place.
8. Place the back mounting plate back onto the rest of the unit at a 90-degree
angle.
9. Twist it clockwise until you feel the mounting plate click into place.
Receiver Battery or Plug Installation
Open the front cover of the receiver (see Figure 2). Please put three (3)
high-quality alkaline batteries into the receiver (not included).
If you are using the optional plug (not included), the plug receptacle is
located on the back of the LRA-DCRX-L, near the top (see Figure 2).
rev.2025

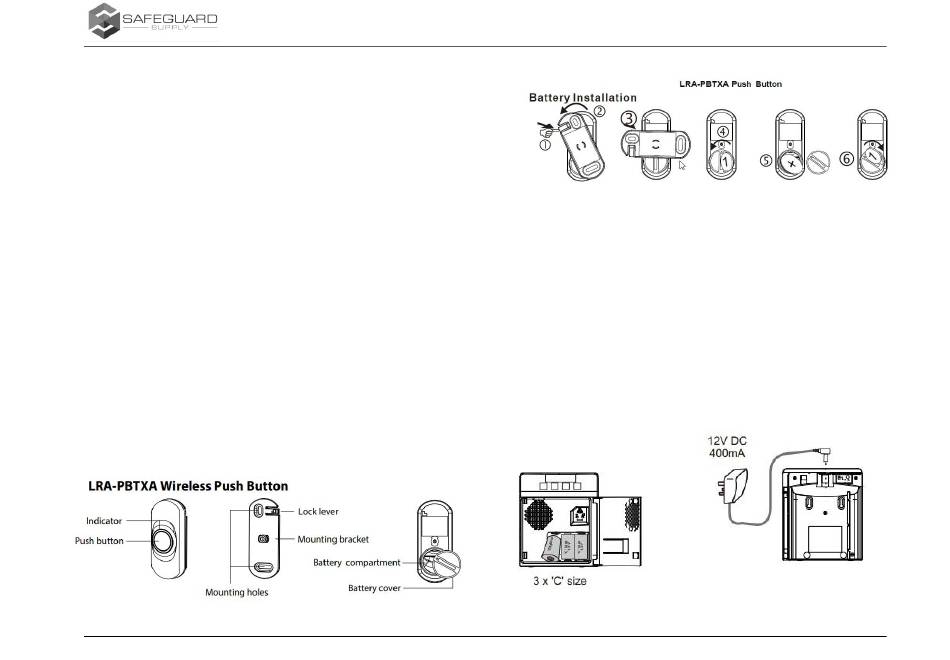

Figure 1
Figure 2
