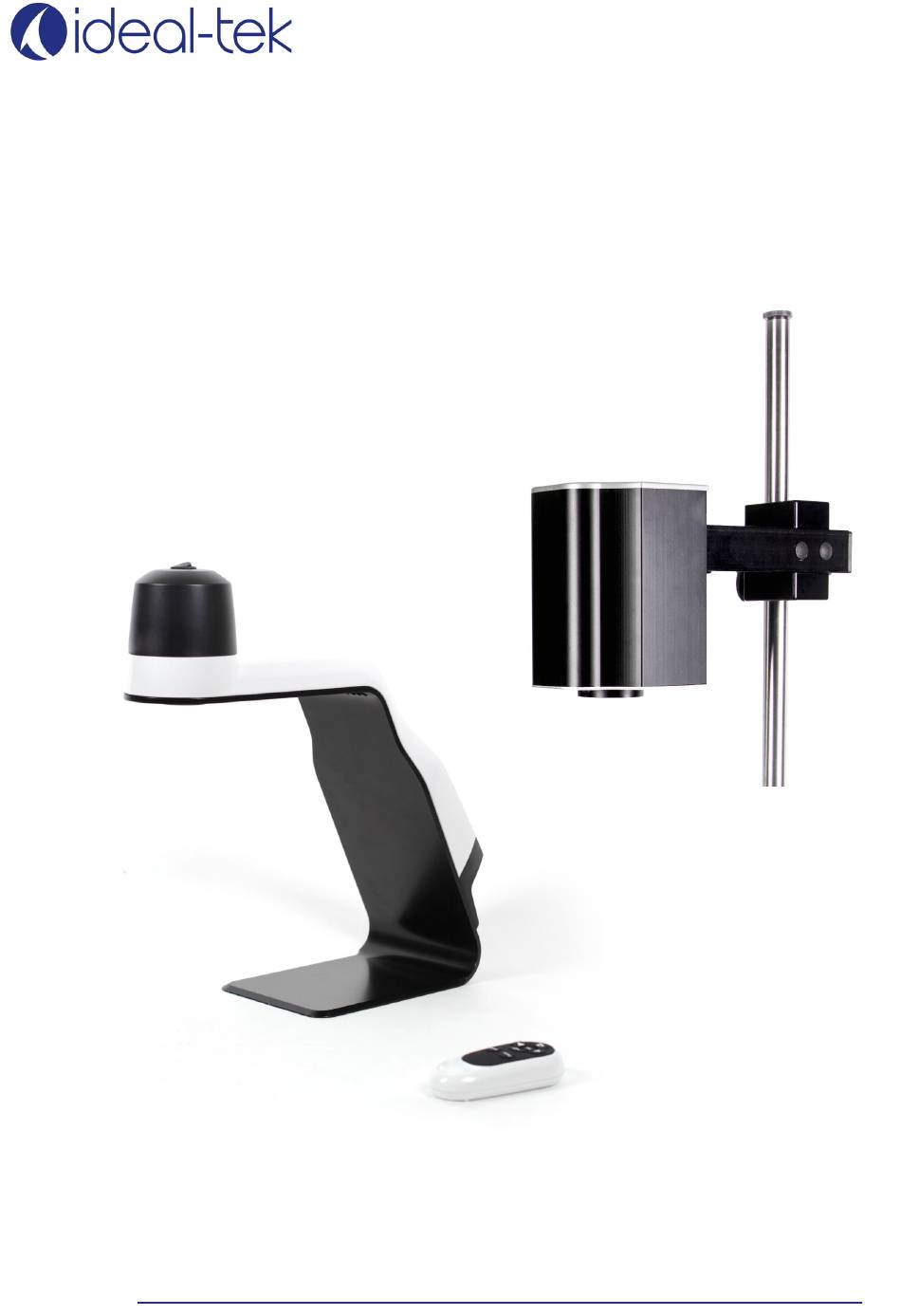

- Page 1 TEK-SCOPE-PLUS & TEK-FLEX-XY User Manual ideal-tek.com...
-
Page 2: Table Of Contents
- 4D LENS Use with a PC - Software Installation - Toolbar - Draw Mode Toolbar - Setting menu - System set up - Measuring - Calibration - Ethernet Optional accessories - TEK-TILT-PLUS - TEK-XY Technical facts Safety information Warranty Contact ideal-tek.com... -
Page 3: System Information
You can now start the system by pressing the button on the top of the camera unit. If needed, turn the LED lamp on/off by using the red button on the back of the unit (only TEK-SCOPE-PLUS). 2. Use with a PC: Connect your computer with the USB cable (USB mini for the device, USB for computer). -
Page 4: Use With A Monitor
SHOW CLOCK: show date and time on the screen. DIGITAL ZOOM : turn Digital Zoom on / off, default off ASPECT RATIO : set aspect ratio, default 16:9 ADJUST DATE / TIME: set time and date. SHOW USB DEVICE: free space on the memory stick. ideal-tek.com... -
Page 5: Remote Control Pairing
Clean the lens before using the system to avoid fingerprints etc. Notice that you also need to change the lens settings in the device menu. Press FUNC button on the remote for 5-8 seconds to get into the menu. Lens – Change to +4 or +3 by using the 34 buttons on the remote. ideal-tek.com... -
Page 6: Use With A Pc
You can now start the Cmore application. If a previous version been installed, we recommend that it uninstalled before a new one is installed. On some Windows 10/11 PC’s it can be necessary to set the settings to allow sideload apps. ideal-tek.com... -
Page 7: Toolbar
Draw a rectangle. No measure values Draw a circle. Diameter value. 3 points circle Draw vertical or horizontal line with measure value Draw oblique line with measure value and angle degree from horizontal base Insert text. See more on page 8. ideal-tek.com... - Page 8 (T) again and you can edit the text or move it by pressing Left button and move the text frame. You can also use the “Edit” function to move your text freely. If you want to remove the text frame just press (x) to delete. ideal-tek.com...
-
Page 9: Setting Menu
• Image Name: The stored image and video filenames include an index. • External Monitor: If using an external monitor with a connected PC, set it to “only external” (not extended or dual). This ensures accurate magnification and measurements. ideal-tek.com... -
Page 10: System Set Up
Press the draw button. Press LB (Left button) on your mouse, select the horizontal or vertical button and click the starting point. Then go to the second measuring point and press LB on your mouse. The measure value will appear on the screen. ideal-tek.com... -
Page 11: Calibration
After calibrating in Live mode, you’ll see options to save presets. You can have up to 6 different presets with various zoom values, all calibrated simultaneously. Avoid using the remote for measuring; any zoom changes made via the remote will affect the software’s values. Compare Live image with a stored image, horizontal, Overlay. ideal-tek.com... -
Page 12: View Options
If you would like to view a live image from the system while outside your local network, please contact your network administrator. IMPORTANT : Edge & Firefox browsers are currently not supported by this unit. ideal-tek.com... -
Page 13: Optional Accessories
The 4D lens is included to replace standard The device lens. Diameter: 220 mm; Height: 73 mm TEK-XY Inspection Table Portable XY ESD safe table for easy control of magnified object. Horizontal Movement: 190mm; Vertical Movement 235 mm; Table Dimension: 420x410 mm; Weight= 5.45 kg ideal-tek.com... -
Page 14: Technical Facts
Store image on USB stick Ethernet connection Wireless Remote control Frame rate: 60 Hz LED light (only TEK-SCOPE-PLUS): 12 V, built-in ESD safe Weight: 4,5 Kg Microscope battery: Lithium CR1220 MFR 3 Volt Remote control batteries: 2 x Alkaline LR03PRO AAA 1,5v Plug Type: Type C (EU) AC input: TEK-FLEX 100-240 V~, 2.0A, 50-60Hz ;...
