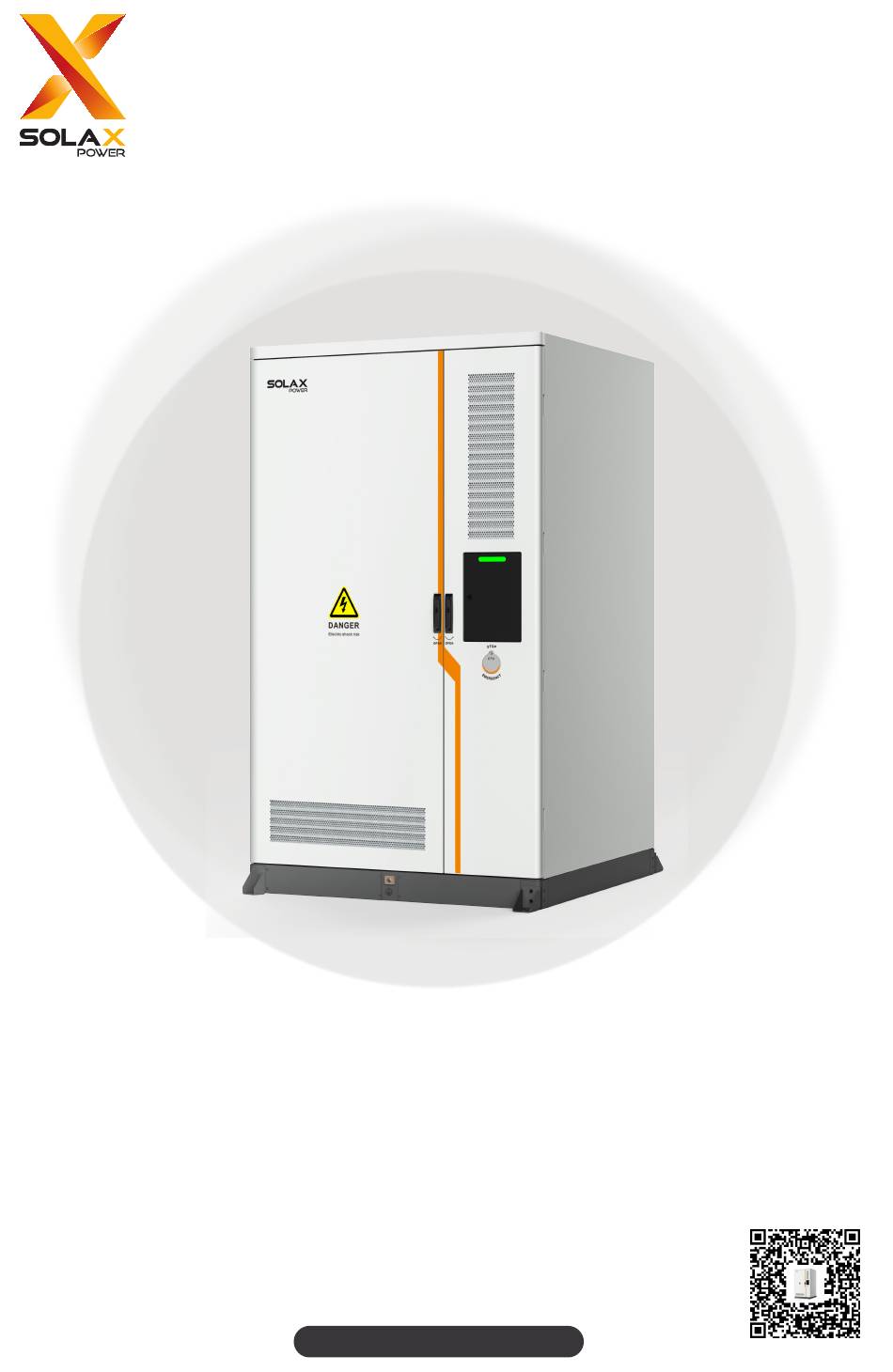

- Page 1 Liquid Cooling Energy Storage System TRENE-P79B261L-E/TRENE-P100B261L-E TRENE-P124B261L-E/TRENE-P125B261L-E Installation Manual Version 1.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
-
Page 3: Table Of Contents
Table of Contents Safety ........................1 Preparation before Installation ..............9 Mechanical Installation ...................19 Electric Connection ..................23 System Commissioning ..................28 LED Indicators ....................32 System Decommissioning ................35 Technical Data ....................38... -
Page 5: Safety
Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation , maintenance and grid-related setting can only be performed by qualified personnel who: •... - Page 6 DANGER! • According to the local laws and regulations related to high-altitude work, operators must wear PPE, e.g., a helmet, safety belt, or waist harness, when they work at heights, while the other end of the harness must connect to a secure structure to prevent fall incidents.
- Page 7 DANGER! • Please make sure that the unit is free from any damage before the electrical connection. • Do not modify, change, or dismantle the device, do not change the power-on and power-off sequences and the installation procedure written in the document, and please properly and correctly operate it.
- Page 8 WARNING! • The battery should be charged in time after discharge, to prevent battery damage due to overdischarge. If a battery pack is stored for a long time, please periodically recharge it to protect it from damage according to the storage requirements specified in the document.
- Page 9 CAUTION! • Do not use a straight ladder. When electrical work is involved, a wooden ladder or an insulated ladder shall be used. • The equipment shall not be used to provide a backup power source in the following circumstances: Equipment related to life;...
- Page 10 NOTICE! Transportation requirements for battery: • Relevant qualifications for the transport of dangerous goods must be obtained by the forwarding agent engaged in such businesses, and they must strictly abide by the local regulations for the transport of dangerous goods. •...
- Page 11 NOTICE! • The PCS has an integrated Residual Current Monitoring Unit (RCMU). If an external Residual Current Device (RCD) is required by local regulations, verify the type of RCD required. It is recommended to use a Type-A RCD with a rating of 300 mA unless a lower value is required by the specific local electric codes.
- Page 12 NOTICE! If the coolant leaks, please avoid contact with it at all times. In case of accidentally coming into contact with it, please do as follows: • In case of contact with eyes: Rinse eyes with running water for at least 15 minutes, and seek medical attention;...
-
Page 13: Preparation Before Installation
Preparation before Installation Packing List M12 expansion bolt × 8 Cover plate × 4 Angle support × 4 Cabinet × 1 Fireproof mud × 2 RJ45 connector × 10¹ TLK70-8 terminal × 4 TLK35-8 terminal × 1 Keys Antenna stick × 1 Hexalobular key ×... - Page 14 Avoid flammable, explosive materials or Avoid corrosive Avoid sandy or dusty Avoid high temperature dust substances Avoid strong electromagnetic fields and Avoid strong vibration Avoid conductive and antenna and noise Avoid radiation magnetic dust Avoid toxic and harmful gases Avoid microbial growth Installation Site Distance Distance from the device to the coast...
- Page 15 Transportation Requirement Forklift Requirement Fork blade Fork blade 25 cm < T < 70 cm L > 1.2 m W=Width L=Length T=Thickness 60 cm < W < 160 cm Carton Fork Holes Fork hole Fork hole Front view Rear view Left view Right view Installation Carrier...
- Page 16 Installation Space Clearance requirements for single cabinet: Unit: mm Unit: mm ≥ 1500 ≥ 1000 ≥ 100 ≥ 100 ≥ 100 ≥ 100 ≥ 1200 Plan view Front view Clearance requirements for multiple cabinets: Unit: mm Unit: mm ≥ 1500 ≥...
- Page 17 Dimensions and Installation Foundation Angle supports installed at front and rear sides 1270 Fork position, Angle support Unit: mm Plan view 924.5 425.5 1350 1558.6 Rear view Left view Front view...
- Page 18 Foundation Unit: mm 1656 1050 1050 Angle supports installed at right and left sides 1475 Fork position, Angle support Unit: mm Plan view 924.5 425.5 1350 1570 Left view Rear view Front view...
- Page 19 Foundation Unit: mm 1656 1650 1050 1050 Unit: mm A: Φ20*30 (×6) B: Φ20*70 (×4) Rear Com cable 229.5 threading hole Cable threading hole 262.5 Front Bottom view NOTICE! • Secure the cabinet to the foundation through hole A or B.
- Page 20 Steel foundation (Optional) Unit: mm 1540 1498.6 1418.6 Plan view Right view 1140 Front view Unit: mm To secure the cabinet Φ16 Rear side Φ14*19 To secure to the ground Front side Cable threading hole Note! After completing construction of the steel foundation, please strictly comply with the following steps: 1.
-
Page 21: Installation Tools
Installation Tools Multimeter Hammer drill (Ø18 mm) (≥ 1500 V dc) Measuring tape Utility knife Wire cutter Marker Wire stripper Crimping tool for RJ45 Torque screwdriver Torque wrench (M4~M12) Hydraulic wire crimper Rubber mallet (Phillips head: M5, M6) Heat shrink tubing Diagonal pliers Heat gun (Ø14~30 mm) - Page 22 Additionally Required Materials Required Material Type Specification Five-core copper cable Conductor cross-section: Grid cable (L1, L2, L3, N wire: 70 mm 70 mm *4 + 35mm PE wire: 35 mm Grounding Width: 40 mm Galvanized iron plate plate Thickness: 4 mm Φ...
-
Page 23: Mechanical Installation
Mechanical Installation WARNING! • Do not destroy the cabinet's anti-corrosion coating during the process of installation. Hoisting α < 60° α > 60° β> 60° β ≤ 60° β β α α Note! While hoisting, pay attention to the explosion vent , and ensure that the cabinet is horizontal and level. Lifting Right view Left view... - Page 24 NOTICE! • After unloading the cabinet from the forklift truck, check if there is any paint peeling User Manual or chipping. If there is, follow the instructions on the to repair. Installation of Angle support and Cover NOTICE! • The installation steps of all four angle supports are the same. The following diagrams use only one of them for example.
- Page 25 combination screw 42±4.2 N·m expansion screw Note! Before installing the covers, remove the M6 screws attached onto the cabinet and properly keep them for later use. Removing 5±0.5 N·m 5±0.5 N·m...
-
Page 26: Installation Of Antenna
Installation of Antenna Silicone cap Reserved antenna port Antenna NOTICE! • An additional antenna terminal is available. The antenna connection procedure of this terminal is the same as the designated antenna terminal. • Keep the sealing caps on if the antenna terminals are not used. -
Page 27: Electric Connection
Electric Connection Position of the Wired Parts Grid connection Grounding Grounding Front view Rear view Grounding Connection The grounding terminals of the cabinet support both grounding plate and PE wire. Select either method to ground the cabinet. Grounding plate connection: NOTICE! •... -
Page 28: Grid Connection
PE wire connection: Ø20-25 mm Length=40-50 mm TLK50-12/TLK70-12 ring terminal 50/70 mm² Heat shrink tube 20-24 mm 42±4.2 N·m Grid Connection 120° Cable Reserved threading hole Front door at right side 5 ± 0.5 N·m... - Page 29 Limiting rod Removing cable cover Removing M8 screws 12 ± 1.2 N·m 1.6 ± 0.1 N·m Substep 1: Remove the combination plate. Substep 2: Disassemble the combination plate, and keep only b and c. b (screw) c (cover plate) a (panel) Unlocking cable clamp 1.6 ±...
- Page 30 TLK35-8 Note! Move the heat gun back and forth slowly to distribute the heat evenly across the surface of heat shrink tubing. Threading through the hole Attaching but not securing cable clamp 5 ± 0.5 N·m...
- Page 31 Connect the PE wire through terminal 1. 12 ± 1.2 N·m Securing wire cover Tighten screw 1.6 ± 0.1 N·m b (screw) Fireproof c (cover plate) 3 ± 0.3 N·m...
-
Page 32: System Commissioning
NOTICE! Notice for fireproofing mud: • Take out the fireproof mud delivered with the cabinet and knead it into a ball shape. In the case of the low temperature, place it into warm water, of which the temperature range is between 40°C and 70 °C, with its package until it is soft. •... - Page 33 Distribution box Distribution box Power on/off Menu Distribution box...
- Page 34 High-voltage box 120° Note: 120° Please keep the keys properly. NOTICE! • Make sure you have locked the doors well after normally powering on the system. EMS Configuration 1: Unlock the screen door. EMS screen Screen door...
- Page 35 2: Log in to EMS. Energy Management System Username Please enter Username Password Please enter Password Login NOTICE Account information for logging in to EMS: EMS SN Username Initial Password Username Password User 123456 User 123456 by default NOTICE! • Scan the SN QR code of EMS on the label pasted on the bottom of the cabinet door interior, or log in to EMS through the user account,...
-
Page 36: Led Indicators
LED Indicators Cabinet's LED Indicator Light LED light Indicator Light Status Definition Solid yellow Standby Solid green Running Solid red Fault High-voltage Box's LED Indicator Light LED light... - Page 37 Indicator Light Status Description Solid green Powered on Blinking green Running Solid red Fault PCS's LED Light LED indicator Status Definition Light on PCS on-grid operation Blinking slow BMS failure (Every 1.4s) When the red light is on, there is a DC Blinking fast side fault of the PCS (Every 0.3s)
-
Page 38: Input/Output Information
LED indicator Status Definition Monitoring communication normal, BMS Light on communication normal Blinking slow BMS communication abnormal (Every 1.4s) COMM Blinking fast Monitoring communication abnormal (Every 0.3s) Light on The PCS is in a fault state. Blinking The PCS is in aging mode. FAULT Light off The PCS is normal. -
Page 39: System Decommissioning
Display Description Indicates the battery capacity. Every grid represents the capacity Battery Information of 25%. If the battery charger is running, the icon would show. The icon will be displayed after panel key operation or serial command mute. Buzzer The icon will be displayed when the buzzer sounds normally. Indicates the UPS is in Fault mode or has some warnings. - Page 40 Distribution box Distribution box WARNING! • Before switching off the high voltage box, check the LED indicator light status of the high voltage box. If it is flashing green, do not operate it in case of load breaking. Distribution box High-voltage box...
-
Page 41: Emergency Power Off
Power on/off Menu High-voltage box High-voltage box Emergency Power Off WARNING! Do not press the emergency stop button unless in an emergency. Note! If the emergency stop button has ever been pressed down, it must be reset before you power the system next time. -
Page 42: Technical Data
Technical Data TRENE- TRENE- TRENE- TRENE- Model P79B261L-E P100B261L-E P124B261L-E P125B261L-E Rated AC Voltage 3 / N / PE, 230 / 400 V Charging/Dis- 79.9 kW 100 kW 124.9 kW 125 kW charging Power Rated Grid 50/60 Hz (According to local regulations) Frequency Max. -
Page 43: Contact Information
Contact Information UNITED KINGDOM AUSTRALIA Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com.au service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany... -
Page 45: Warranty Registration Form
Warranty Registration Form For Customer (Compulsory) Name Country Phone Number Email Address State Zip Code Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any ) - Page 46 SolaX Power Network Technology (Zhejiang) Co., Ltd. Add.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320102139401...
