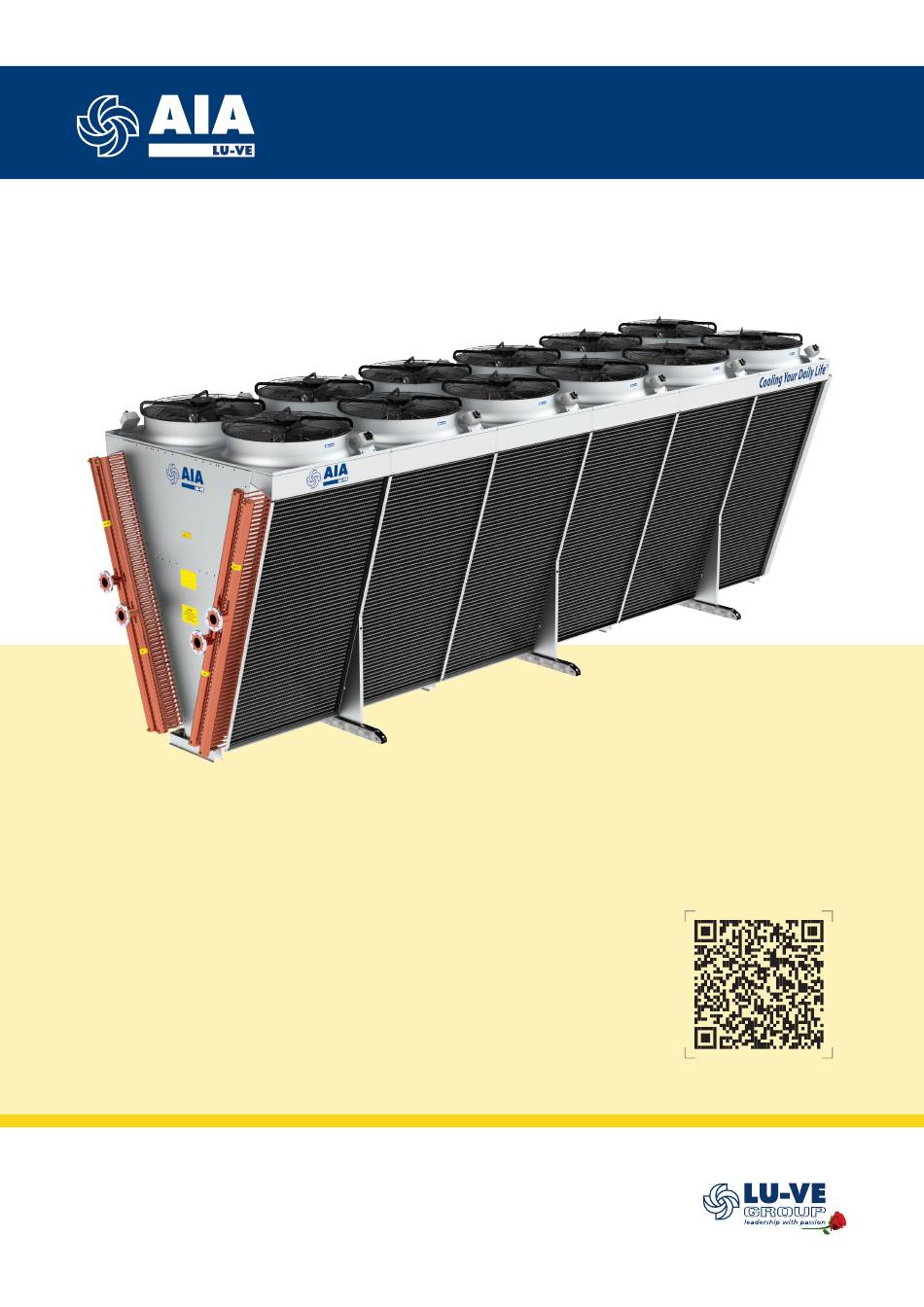

- Page 1 Cooling Your Daily Life® Available languages VXX3 Industrial V-type dry coolers Instruction manual ORIGINAL INSTRUCTIONS 31671489EN-01...
-
Page 2: Table Of Contents
Danger of freezing ........................16 Maintenance..........................17 7.1 Cleaning ..........................17 Standstill ...........................17 Fan replacement ........................17 7.4 Stepping on the unit .......................18 Spare parts ..........................19 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 3: Important Information
Product manuals • Instruction manuals • Product leaflets & brochures • Product data sheets (selection software) • Dimensional drawings • Electrical wiring diagrams • Certificates AIA LU-VE offers world-wide service and support. In case of any questions or uncertainty please contact your local AIA LU-VE representative. Contact addresses are available at aia.luvegroup.com. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 4: Product Description
Free pass with ladder right front (RFW) • Standard with ladder left front (LFS) • Standard with ladder right back (RBS) • Vibration dampers • Flanged • Whisperer • Dri-Batic water spray system including tubes and nozzels pre-mounted from factory, up to 500 hours (DB0) • Dri-Batic water spray system kit and cabinet including filter, valves and pressure gauge, up to 500 hours (DB1) 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 5: Code Description
VXX3 - D - 91 Q1 L - 29 - 4D - 5 B1 - 900 - 288 - VXX3 Dry cooler Fan diameter (91=910, 100=1000 mm) Fan variant (Q1, Q2, Q3, Q4) Fan model (A=AC, L=EC) Size (1st digit: no. of coils, 2nd digit: no. of fans) Module type (4A, 4B, 4C, 4D) No. of rows in depth Fin spacing (B1=2.1, B2=2.4) Fan speed No. of circuits Options 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 6: Product Labels
Product labels ⑩ ⑦ ⑨ ④ ⑥ ⑥ ⑤ ① ⑤ ③ ② ⑦ ⑧ 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. - Page 7 6. Lifting instructions LYFTINSTRUKTION / LIFTING INSTRUCTION / HEBEANWEISUNG Preferably use hoisting beams when lifting from above. -210 7. Electrical warning Electrically powered component. Switch off power supply before any maintenance or installation activity. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification.
- Page 8 AUTOMATIQUE. COUPER L’ALIMENTATION ÉLECTRIQUE AVANT INTERVENTION 10. Grounding Whenever electrical components supplied by AIA LU-VE have this sticker, is mandatory to ground them. The yellow/green grounding wire must be left longer than the others, to ensure that it is the last one to be detached from the terminals in the event of the cable being pulled off. Grounding is designed for the electrical equipment supplied with the unit and is not to be intended as protection from external sources. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification.
-
Page 9: Unpacking And Lifting
Unit shall be lifted only when empty. VXX3 dry coolers are delivered on standard trucks. Units shall be always lifted from above. Follow the procedure described in "4.1 Lifting from above". If the optional fin-protection panels are present, keep those protections during lifting and handling operations to minimize the risk for fins damages. Remove the fin protection before the unit start-up. Fins protection material is recyclable. Lifting from above Verify that lifting lugs are safely fixed to the unit and have no signs of damage. Attach the belts or hooks only to the lifting lugs as shown in the drawing on the next page. Angle of chains as shown for all models. Load on the lifting chains shall be equally distributed on all the lifting points. If one chain is not fully loaded another chain will be extra loaded. This is not allowed. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. - Page 10 6310 mm MOD 25 MOD 210 5050 / 5610 mm 3790 / 4210 mm MOD 26 MOD 29 3790 / 4210 mm 5050 / 5610 mm MOD 27 MOD 28 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification.
-
Page 11: Installation
12078 1612 2524 3786 2524 13338 1752 2804 4206 2804 13340 1612 2524 2524 2524 2524 * Differ depending on chosen header size and fan speed. Correct dimension for chosen product upon request 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 12: Feet Dimensions Detail
VENT DRAIN DRAIN Expansion joints AIA LU-VE recommends the installation of expansion joints on both inlet and outlet connections. Expansion joints are elastic elements which, if properly installed, absorb the thermal expansions of the tubing. Expansion joints are also helpful in order to reduce vibrations in the piping. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 13: Vibration Dampers
No. of vibration dampers per unit Module type Size Picture shows an installation example using threaded bar, nut, grower washer, washer and locknut (not supplied). This way vibration dampers can be used to make the cooler level adjusting the locknut. This is particularly useful with long units or irregular basement. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 14: Installation Layout Guideline
Bolt the product directly onto a firm base, or with vibrationsdämpare i stativets förborrade fästhål. vibration dampers, through the pre-drilled mounting holes. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 15: Electrical Connections
Δ / Y temp (°C) (V/ph/Hz) 91Q3A 2.2 / 1.7 4.8 / 3 940 / 820 IP54 400/3/50* 91Q4A 0.9 / 0.5 2.2 / 1.1 660 /500 IP54 400/3/50* suitable for 400/60 and 460/60→ max working temperature decreases -10°C 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 16: Operation
• Compressed air helps to drain in less time. Compressed air shall be oil free. Danger of freezing During transport, storage, start-up, operation or standstill it is crucial to make sure that the pipe system of the product does not freeze. Condensate might build up in the pipe system if the product is connected in the wrong way or the product is stored unconnected. Condensate leads to a build-up of water which may freeze and destroy the product. Always store the product at minimum +5 °C. It is the responsibility of the user to make sure no damages occur due to freezing. Make sure the liquid inside the pipe system is treated so it cannot freeze and remember that product cannot be fully drained even when the bottom drain hole/valve is open. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 17: Maintenance
Switch off the service switch and lock it. • Disconnect the electric cable from the fan unit’s terminal box. • Unscrew the fixing bolts that hold the fan unit. • Lift out the fan unit by using straps under the arms. • Place the new the fan unit in identical position and fit the screws. • Connect the electric cable in the fan unit’s terminal box. • Restore the electric connections (water trap as shown). • Unlock the service switch and switch ON. • Ensure that the fan rotates in the direction indicated by the arrow. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 18: Stepping On The Unit
Stepping on the unit If for maintenance purposes it is required to step on the on the unit, always wear safety shoes. It is not allowed to step on the unit while it is working. Proper protection against falling shall be arranged with railings and safely fixed ladders. If the units do not have railings a safety device that prevents falling shall be used. Never step on the fan grids and on the liquid connections. It is not allowed to step outside the areas highlighted in the example below. = walkable areas 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. -
Page 19: Spare Parts
Spare parts ① ② ③ ④ Spare parts for VXX3 ① Switch on/off ② ③ Whisperer Vibration damper ④ Contact your local AIA LU-VE representative for spare parts order and assistance. 31671489EN-01 AIA LU-VE is a trademark registered and owned by LU-VE Group. AIA LU-VE reserves the right to change specifications without prior notification. - Page 20 aia.luvegroup.com...
