PAC SR-F15009HX Manual

Stinger ix210
HORIZON10 / HEIGH10+
Introduction and Features
The SR-F15009HX is a complete radio replacement kit for the installation of the Stinger ix210 modular radio in Ford F-150 trucks
equipped with either correct radio types this works with. All modules, cables and adapters are included to retain important features
of the factory system, including: steering wheel-mounted radio controls, factory amplifier, AM/FM reception. Plug & Play wiring
harnesses allow for quick and easy installation without the need to cut or splice any wiring. The display mounting panel allows
mounting the 10 inch display without modifying/cutting any part of the vehicle's sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself
1. Adjustment of the vehicle settings through the original radio's vehicle settings menu will be disabled after installation of the
new radio. It is advised to make sure all settings are as you desire prior to removal of the original radio.
2. The RP4-FD11 does not retain Rear Seat Entertainment, or Ford Sync.
3. To retain SiriusXM Radio, a SXV300 Tuner is required and sold separately. Not applicable to HEIGH10+.
4. After installation, if you do not initially hear any audio, you may need to cycle the ignition again to initialize the factory amplifier.
5. Factory amplified Systems will not fade as neither the aftermarket radio or the RP interface have the ability to control the
amplifier's fader.
6. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the
interface into the vehicle.
7. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless
you wish to re-assign the SWC functions or utilize short press long press dual command functionality. The SWC can always
be restored to default settings by pressing and releasing the program button on the side of the interface once and waiting 7
seconds for the LED to flash 4 times.
8. The LED will flash whenever a SWC button is pressed.
Recommended Tools
7mm Socket
8mm Socket
Ratchet

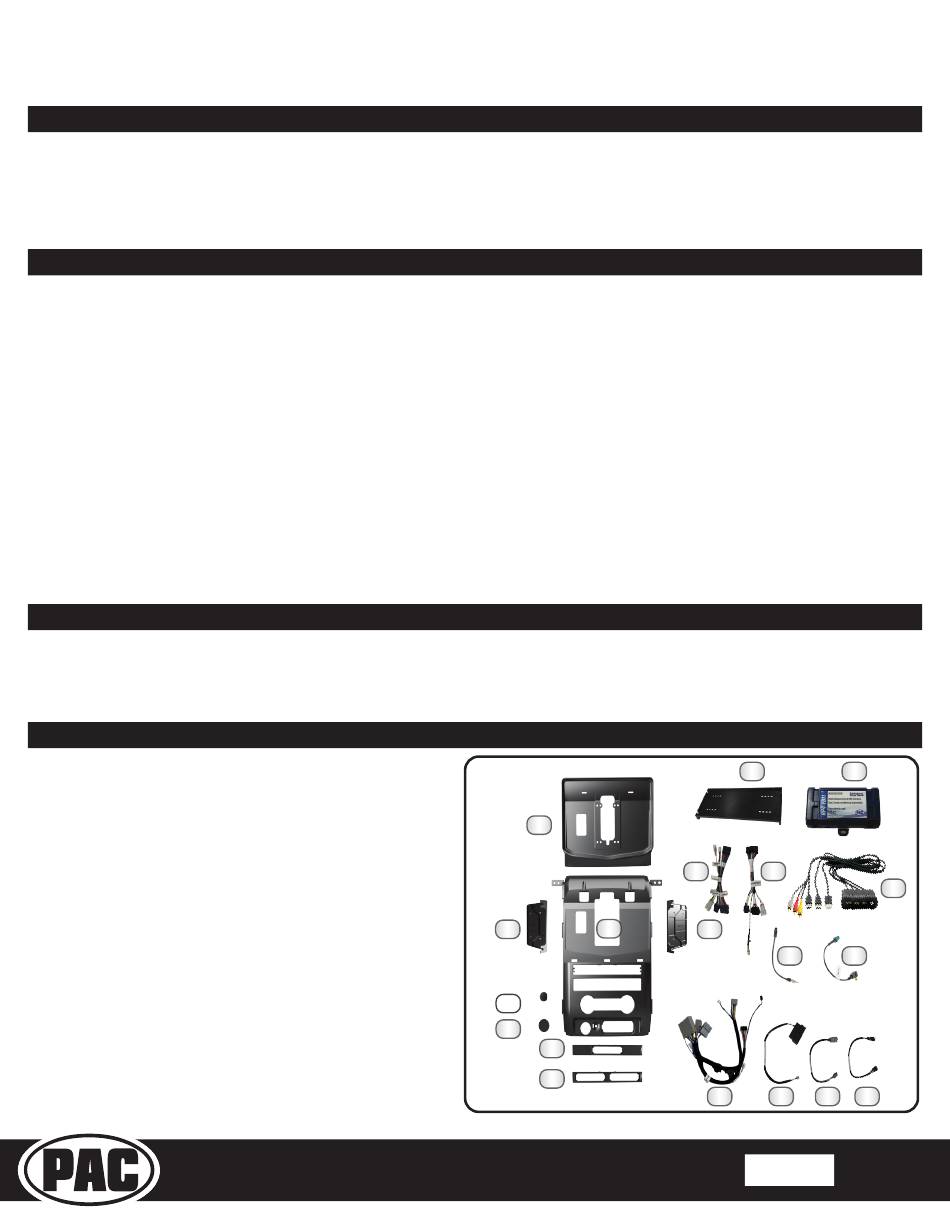

Included Components
1. Display Mounting Panel
2. Main Frame
3. Side Bracket Left
4. Side Bracket Right
5. Main Frame Bolt Cover
6. Cig Light Cover
7. Switch Insert 1
8. Switch Insert 2
9. Module Bracket
10. Radio Interface (RP4-FD11)
11. UN1810 Harness (SR-SRK-ADAPT-UN1810 V1)
12. IX210 Harness (SR-SRK-ADAPT-IX2XX V1)
13. Media HUB (USBCHUB-CH1B-RCA-24 V1)
14. AM/FM Antenna Adapter (BAA20)
15. Satellite Radio Antenna Adapter (SAT-01)
16. Main Harness 2019-2021 (SR-F15009H-HAR V2)
17. Sync Harness (SR-F15009H-HAR V1 (SYNC SWC)
18. SR-F15009H-HAR (6P EXT 1)
19. SR-F15009H-HAR (6P EXT 2)
®
© 2024 Stinger. All rights reserved. PAC is a Power Brand of Stinger Solutions. PAC-audio.com
Pacific Accessory Corporation
with the entire process prior to beginning the installation.
Phillips Screwdriver
T-20 Torx
Small Flat Screwdiver
*HORIZON10 ONLY
Flush Cutters
Plastic Pry Tool
Pick Tool
1
3 2
5
6
7
8
Included, zip ties and M4 x 12 Zinc Screws (6x) not shown.
SR-F15009HX
Radio Replacement Kit
for 2009-2014 Ford F-150 Trucks
9
12
11
4
14
16 17 18
Rev: 2
Date:110724
10
13
15
19
Page 1
