USER MANUAL

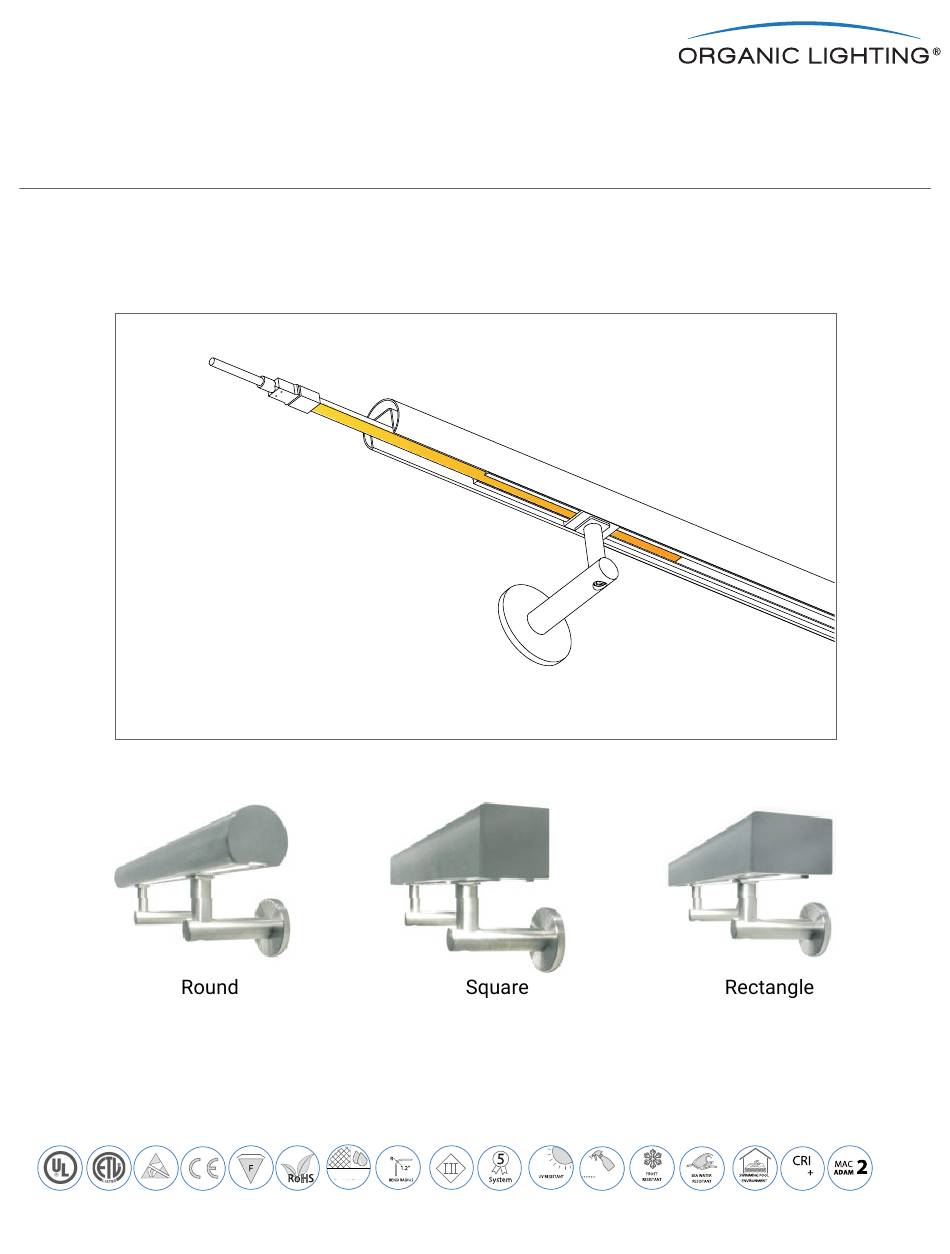

ORGARAIL SLIDE-IN PATENT NUMBER US 12,173,887 B1
OrgaRail
Illuminated Handrail Slide-Fed System
®
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION & LEAVE
A COPY FOR THE END USER/ MAINTANANCE ENGINEER FOR FUTURE REFERENCE.
94
IP40/IP67
S D C M
Specifications sheets are subject to change without notification.
01/2025 V4
Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com
Advertisement
Table of Contents
Related Manuals for Organic Lighting OrgaRail Round
Summary of Contents for Organic Lighting OrgaRail Round
- Page 1 A COPY FOR THE END USER/ MAINTANANCE ENGINEER FOR FUTURE REFERENCE. IP40/IP67 S D C M Specifications sheets are subject to change without notification. 01/2025 V4 Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com...
-
Page 2: Table Of Contents
Installing OrgaRail Elbows / Joints / Connectors / End Caps OrgaLED LED Product Specifications (Symmetric) OrgaLED LED Product Specifications (Asymmetric) General Symbols Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 3: Warning
This product is intended for professional use only! This product must be installed by a qualified and certified installer according to local rules and guidelines. Organic Lighting Systems, Inc. cannot be held liable for (consequential) damage and/or injuries due to unintended use and/or installation errors. -
Page 4: Product Dimensions
3" 1.67" 1.83" 1.46" 3.66" 1.41" Ø0.79" 2.43" 0.66" 2.29" 1.41" 1.97" 0.72" 0.79" Ø1.97" 0.28" - 1.06" Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... - Page 5 SIDE 3" 1.90" 1.72" 1.68" 3.87" 1.41" Ø0.79" 2.29" 2.53" 1.41" 1.97" 0.72" 0.79" Ø1.97" 0.28" - 1.06" Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com...
-
Page 6: Product Mounting Assembly
Snap-In Lens 10mm Long Post Top Bracket Assembly 10-32 Socket Head Screw SS 3/8" Long Ø1.6" Post Tubing Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... - Page 7 Screw SS 10mm Long Post Top Bracket Assembly 10-32 Socket Head Screw SS 3/8" Long Ø1.9" Post Tubing Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com...
- Page 8 Head Screw SS 3/8" Long 1.57" Square NOTE: Post Tubing - Custom: Square Post - Standard: 1.6 Round Post Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com...
- Page 9 Head Screw SS 3/8" Long NOTE: 1.57" Square - Custom: Rectangle Post Post Tubing - Standard: 1.6 Round Post Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com...
-
Page 10: How To Position And Level Wall Mounts And Post Tubes
1.1 How to Position and Level Wall Mounts 1. To measure and level accurately, use a 4ft level on the upper step and lowest step. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 11: How To Position And Level Wall Mounts
Mounts; The recommended max distance is 4ft. install Wall Mounts. IMPORTANT: Consider placement constraints for Elbows, Joints, End Caps and Starter Connections. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 12: How To Position And Level Post Tubes
Slide-in Extrusion with the Post Tube. 5. Once the Post Tubes alignment is satisfactory, proceed to install the Post Tubes. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 13: How To Install Wall Mount And Post Tubes With Base Mount
*Rotate clockwise to tighten to Wall Surface Connection Bracket Arm to Adapter Attachment Screw *Tightens Wall Mount to the Handrail Insert Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 14: How To Install Wall Mount
2.1.2 to fine tune the hanger bolt rotation; use the provided acorn nuts to tighten/loosen the bolt. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 15: How To Install Post Tube And Base Mount
3. Use the provided 3M primer on the Base Mount. 4. Then, apply the provided 3M contact cement glue on the interior of the Post Tube. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 16: How To Install Post Embedding
Organic Lighting recommends 4-6 inch depth. NOTE: Before setting, ensure the alignment from one post to the next is accurate. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 17: How To Install The Slide-In Extrusion To The Caprail
2. Install provided dowel pins (optional). 3. Remove 3M protective backing from the Slide-in 4. Adhere to the Caprail. Extrusion. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 18: Method 2: Use A Mechanical Screw
Slide-in Extrusion. spacing every 8" (200mm). 3. Drive in the mechanical screw to fix the Extrusion and Caprail together. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 19: How To Install Brackets On Caprail
3. Align the Top Bracket to the Wall Mount and tighten the screw to secure it in place. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 20: How To Install Post Baluster Bracket To Caprail
3. Align the Top Bracket to the Post Baluster and tighten the two screws to secure it in place. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 21: Installing Orgaled Lights
Note: Ensure the cord extends out 12 inches or more past the top of the posts. 3. Lastly, slide the OrgaLED LED into the Slide-in Extrusion. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 22: Special Application: If Orgaled Led Starting Point Is In The Middle Of The Orgarail
6. Overlap the OrgaLED LED Connector from the previous run to eliminate any break in the light. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 23: Installing Orgarail Lenses
2. After cutting lens to size, push the lens firmly into 1. Cut OrgaRail Lens to desired length using a chop the Slide-in Extrusion. saw. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 24: Installing Orgarail Elbows / Joints / Connectors / End Caps
3. Immediately set the Post Tube on the Base Mount. Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 25: Orgaled Led Product Specifications (Symmetric)
939.6 3081.9 16ft 4000K >94 1044 3424.3 16ft 5000K >94 1017.9 3338.7 16ft 6500K >94 1002.2 3287.2 16ft Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 26: Orgaled Led Product Specifications (Asymmetric)
3000K >94 208.2 3500K 208.2 >94 Square Handrail 4000K >94 220.1 721.9 5000K >94 220.1 721.9 Rectangle Handrail Specifications sheets are subject to change without notification. Organic Lighting, 12203 Magnolia Avenue, Suite 1, Riverside CA 92503 | 626.969.6140 | www.organiclighting.com... -
Page 27: General
Hand over the instructions to the end-user and/or those responsible for installation, maintenance and usage. Organic Lighting Systems, Inc. cannot be held responsible for improper handling, product installation, usage or storage. Handling - Handle with care. -
Page 28: Symbols
The CRI value of this product is 94 or higher. The binning tolerance of this product is 2 MacAdam. Disclaimer The published information is checked to be as accurate as possible, however Organic Lighting, or any reseller of OrgaLED and/or OrgaRail cannot be held liable for any damages resulting from errors or outdated information.
