NSL Outdoor Streamline SL-OD-CCT Series User Manual

DESCRIPTION
This manual is for NSL's outdoor rated
Tunable CCT LED Strip Lights.
Designed specifically for your Indoor
and outdoor lighting needs. The LED
strip is widely used in homes, offices,
and commercial spaces. With flexible
installation options and a variety of color
temperature choices, it offers users an
efficient, energy-saving, and long-lasting
lighting solution.

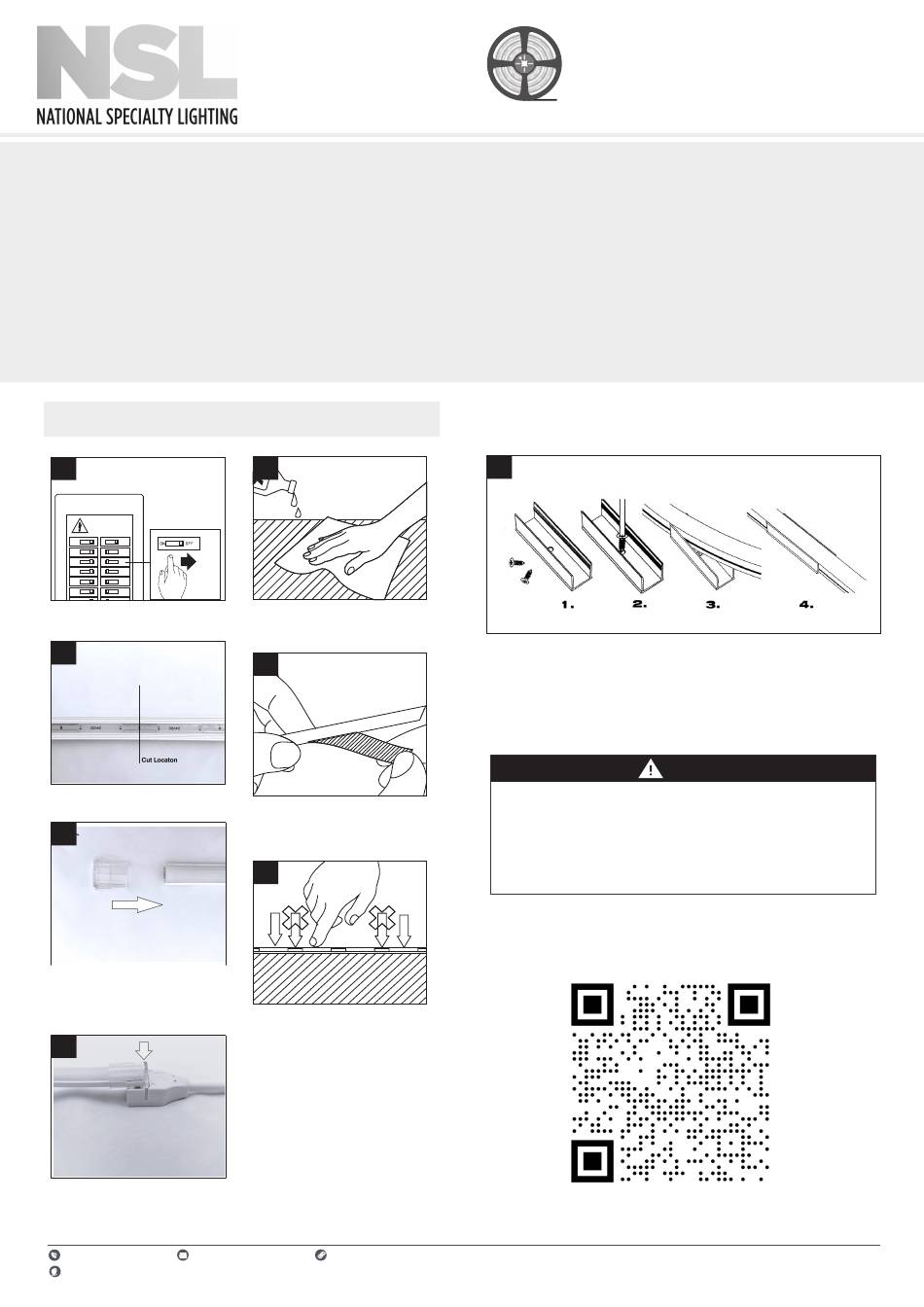

STEPS FOR INSTALLATION
01
Before installing, please turn off the
power supply to the circuit in use.
02
Measure the length of the surface where
the LED strip is to be installed and cut on
the closet cut location with sharp scissors.
03
Slide the Clear Plastic piece over the cut
end. Be sure to remove the double sided
tape when the cap will sit. Use NFLX-
GLUE (or silicone) to fill the plug where
waterproofing is required.
04
Insert the clear cap into the end of the
accessory as shown above. Press firmly
until it clicks. Please note polarity and
connect correctly prior to installation.
303 926 1100 nslsales@nslusa.com
National Specialty Lighting Nationa l Specialty Lighting 2299 Kenmore Avenue,
APPLICATIONS
• Aisle and stairway lighting
• Cabinet and Cove lighting
• Deck and patio lighting
• Pathway lighting
• Building facades and outlines
• Back lighting
• Showcase lighting
• Linear decorative lighting
05
Clean the installation surface and make
sure the surface to be installed is smooth
and free of any dust or oil stains.
06
Gently pull off the centrifugal paper of the
double-sided adhesive on the back of the
LED strip, and stick the light strip to the
surface where it needs to be installed.
07
Do not tear off all the centrifugal paper at
once. You need to peel and stick it at the
same time, and gently press both sides of
the PCB to ensure a firm adhesion. Be
careful not to press on the LED and other
components on the mounting surface .
www.nslusa.com
User Manual
Outdoor Streamline Series
SPECIFICATIONS
Product Code
Input Voltage:
CCT:
Operating Temperature:
Beam angle:
IP Grade:
Warranty:
LED tests:
CRI:
08
NOTE: For porous surfaces that will not allow a firm grip with the self
adhesive backing, we recommend
(SL-OD-MC) or extrusion (SL-OD-EX-39). Scan QR Code below for more
information on other extrusion options.
• Pay attention to the input voltage of the LED strip and do not exceed this
voltage.
• NOTE: The total power of the LED strip cannot be greater than the power
supply power (preferably less than 85% of the power supply power).
• NOTE: Please disconnect the circuit first when connecting the light strip.
• NOTE: In outdoor situations, Power supplies, controllers and repeaters
must be placed in weather proof enclosures.
For more information on extrusions, accessories or
specific LED products please use the QR code
below.
SL-OD-CCT series
DC24V
Tunable CCT (27k to 65k)
( -20°C~40°C)
150°
IP65
5 years
LM80
CRI>90
that you use our U channel
WARNING
P1
