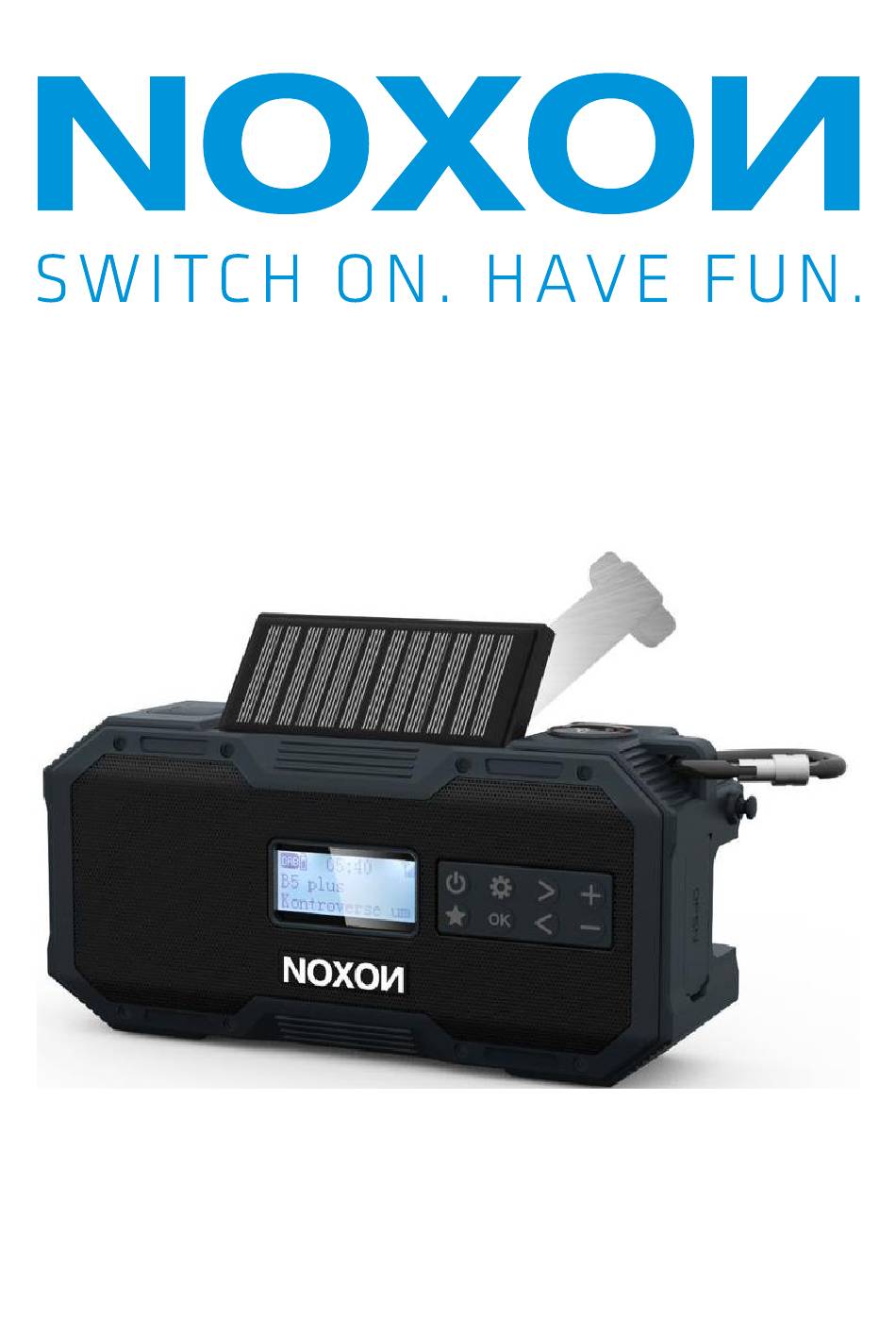

- Page 1 User Manual EMERGENCY RADIO Noxon Dynamo-Solar 411...
-
Page 2: Table Of Contents
Contents Operation Function Indication ..........3 Front ..................3 Superface................4 Left side & Right side ............4 Subface ................5 Back ..................5 DAB+ Operation Instructions............ 6 FM Operation Instructions ............8 Bluetooth Speaker Operation Instructions ....... 9 System Setting Instructions ............. 10 Handle Power Generation Description ........11 Fault Self-Solving .............. -
Page 3: Operation Function Indication
1. Operation Function Indication 1.1 Front 1. Display screen (Show information about radio, songs, albums, etc.) 2. Antenna (DAB+/FM receiving antenna/Pull out the antenna and adjust it to the best reception angle) Switch on the machine/switch (Long press Start to enter the standby state or short press Boot/long press Shutdown. -
Page 4: Superface
Previous (DAB+ mode: Short press Last Program, FM mode: Short press Last Program BT mode: Press for the previous song.) Volume Up Volume Down 1.2 Top Face Torch switch (Short press Cycle: flashlight steadily on/flashlight flashing/off flashlight. When the camping lantern is turned on, the button controls the camping lantern.) 12. -
Page 5: Subface
17. Reset switch (Reset with a tip object in the reset hole) 18. USB (5V, output). The USB outputs it to charge for 5V 1.4 Side Face 19. SOS (Long press the start alarm sound/warning light/again long press to open and close SOS) 20. -
Page 6: Dab+ Operation Instructions
2. DAB+ Operation Instructions 1. Tum on the radio and short press the "power switch" button to switch to the DAB+ mode. (It will automatically go into station scanning if no station is stored) 2. Long press the "OK" button in the DAB+ mode to start the station scanning: Receive all the frequency channels, and save all the received programs in the DAB+ program list according to the dictionary order of the short label (short name). - Page 7 4. Short press the "setting" button to switch the information display. 5. Store/Recall station instructions: 5.1 Preset Store: Long press the "asterisk” button to enter the storage interface. Use the left and right buttons to view the program memorized at each memory point, and it will display the short label.
-
Page 8: Fm Operation Instructions
3. FM Operation Instructions 1. Turn on the radio and short press the "power switch" button to switch to FM mode. 2. Auto Scanning: Press and hold the "OK" button, and the system will search from the low-end frequency to the high-end frequency according to the set stop sensitivity and save the received radio stations in the radio list in turn. -
Page 9: Bluetooth Speaker Operation Instructions
"BT" mode. When “BT” is flashing, turn on the Bluetooth of your phone, search for "Noxon 411”, click it and connect. When the device is connected, “BT” will not blink. 3. Short press “OK” to pause or play 4. -
Page 10: System Setting Instructions
Long press “OK”, and the device will be disconnected from other devices and stay in the standby connection state. At this time, “BT” will keep flashing. 5. System Setting Instructions 1. Long press the “setting” button on the main page to enter the system settings 2. -
Page 11: Handle Power Generation Description
5.1 Timeout: 10s/20s/30s/45s/60s/90s/120s/180s/Always on. 5.2 On level: High/Medium/Low 5.3 Dim level: High/Medium/Low. 6. Language: 6.1 English/Deutsch/ltaliano/Francais/Espanol/Dansk/Suomi/ Portugues 7. Factory reset: NO/Yes. 8. SW version. 6. Handle Power Generation Description 1. Handle power generation/charging function. The standby charging function is only recommended for use in emergencies. Note: Turn off the handle for power generation. -
Page 12: Fault Self-Solving
Expose the device's solar panels straight to the sun. The display battery symbol shines when the device is charging. 5 hours of solar charging can power the radio for about 15 minutes or the integrated torch for about 1 hour. Note: It must be charged in high and red light because only that light can be detected. -
Page 13: Specification And Parameters
The USB does not output the Replace the charging cable charging 8. Specification and Parameters Specifications Parameters Model Noxon Dynamo-Solar 411 Weight 530g Dimensions 178 × 55 × 85mm Power Horn unit Battery capacity 5000mah*3.7V DAB frequency 174 - 240MHZ FM frequency 87.5 - 108MHz... - Page 14 Manufacturer: Palotec AG Frikartstrasse 3 CH-4800 Zofingen www.noxonradio.ch info@noxonradio.ch Made in China...
