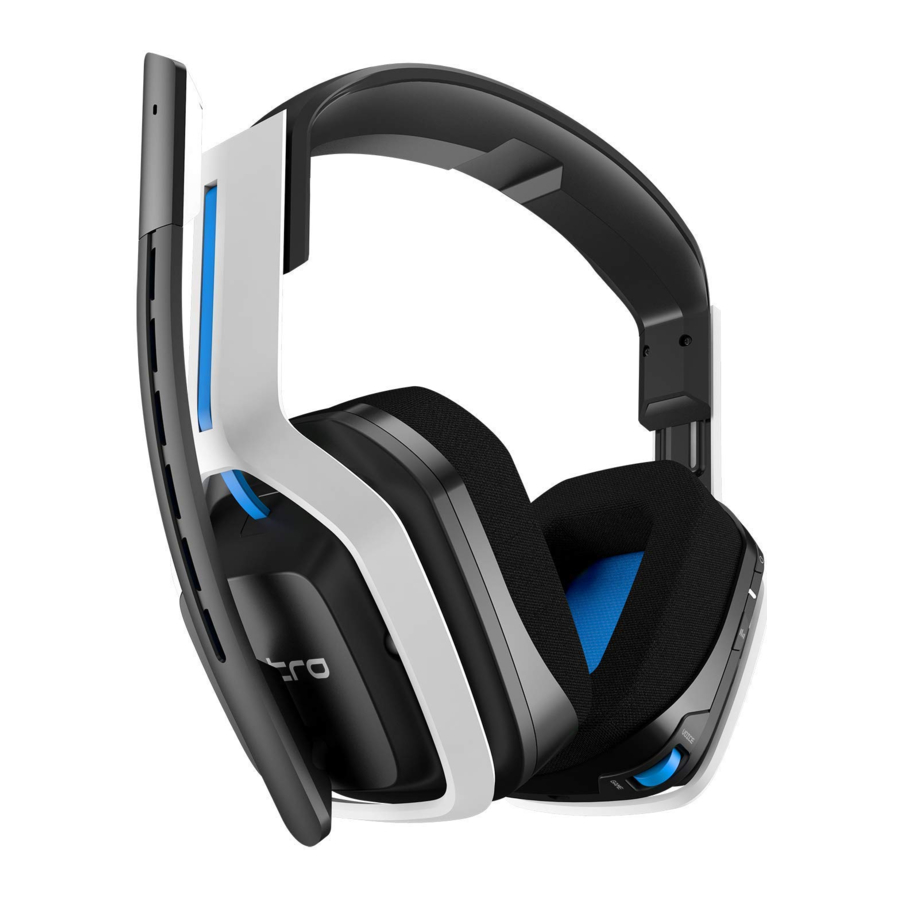

ASTRO A20 WIRELESS Manual

Overview

1. Ensure Transmitter is set to PC Mode.
2. Plug the Micro end of the Micro USB cable into the Transmitter & the USB end into your PC or Mac.
3. PC: Right click the Speaker icon in your Taskbar and select Playback Devices. Mac: Navigate to Settings, select Sound, then Output and choose ASTRO A20 Game.
4. PC: Select ASTRO A20 Game, right click and set as Default Device. Mac: Select Input and choose ASTRO A20 Voice. Mac users are complete after this step.
5. Select ASTRO A20 Voice, right click and set as Default Communication Device.
6. Navigate to your Recording Devices tab in your Sound settings on your PC.
7. Ensure that ASTRO A20 Voice is set as Default Device and Default Communication Device.
8. That's it! A20 Wireless and PC / Mac are set up and ready to game!

XBOX ONE SETUP

1. Ensure transmitter is set to Xbox mode.
2. Plug the micro end of the micro USB cable into the transmitter & the USB end into your Xbox One.
3. Plug TOSLink optical cable into the Xbox One optical port & plug the other end into the Opt In port on the transmitter. *Be sure to remove clear plastic caps from the optical cable.
4. Navigate to Sound and Screen, then to Audio Output Settings.
5. Under Audio Output, choose Bit stream Format, and select PCM Stereo.
6. For help setting up Dolby Atmos with your Xbox One.
7. That's it! A20 Wireless and Xbox One are set up and ready to game!

Pairing and CHARGING

1. Pairing occurs automatically when the A20 Wireless Headset is plugged in via USB into the Transmitter. Plug in Micro USB end of the.5m USB charge cable into the headset.
2. Plug the USB end of the.5m charge cable into the Transmitter in port marked "Charge Port". The LED on the transmitter will blink until the headset is fully charged.

LED BEHAVIOR

A20 HEADSET LED INDICATOR

	Amber Charging
	Solid Red On / Charging is complete
	Blinking Red Low Battery

A20 WIRELESS TRANSMITTER LED INDICATOR

	White PC Mode
	Blue XBOX ONE Mode
	Blinking Pairing
