Nokia T10 Manual

Getting Started

KEYS AND PARTS

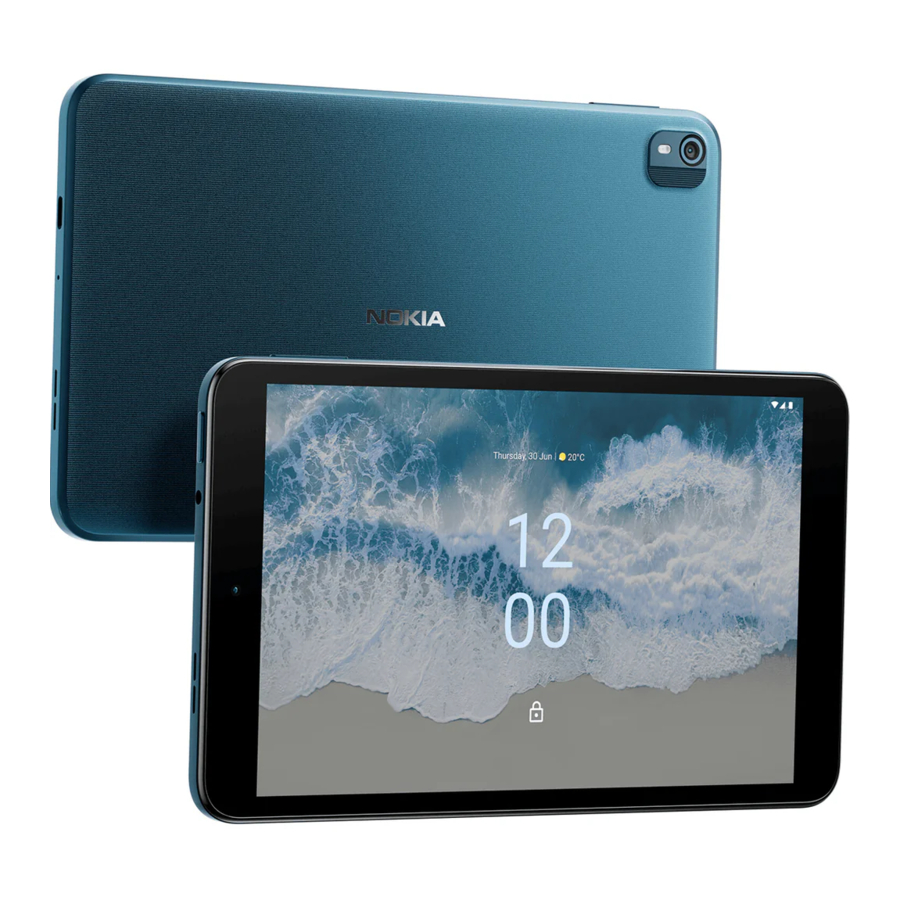

Your tablet

This user guide applies to the following models: TA-1457, TA-1462, TA-1472, TA-1503, TA1512.

1. USB connector
2. Microphone
3. Loudspeaker
4. Front camera
5. Light sensor
6. Volume keys
7. Flash
8. Camera
9. Power/Lock key
10. Headset connector
11. Loudspeaker
12. SIM and memory card slot (TA-1457, TA- 1462, TA-1503, TA-1512), memory card slot (TA-1472)

Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.

INSERT THE SIM AND MEMORY CARDS

Insert the cards TA-1457, TA-1462, TA-1503, TA-1512

1. Open the SIM card tray: push the tray opener pin in the tray hole and slide the tray out.
2. Put the nano-SIM in the SIM slot on the tray with the contact area face down.
3. If you have a memory card, put it in the memory card slot.
4. Slide the tray back in.

Insert the memory card TA-1472

1. Open the memory card tray: push the tray opener pin in the tray hole and slide the tray out.
2. Put the memory card in the memory card slot on the tray.
3. Slide the tray back in.

CHARGE YOUR TABLET

Charge the battery

1. Plug a compatible charger into a wall outlet.
2. Connect the cable to your tablet.

Your tablet supports the USB-C cable. You can also charge your tablet from a computer with a USB cable, but it may take a longer time.
If the battery is completely discharged, it may take several minutes before the charging indicator is displayed.

SWITCH ON AND SET UP YOUR TABLET

Switch on your tablet

1. To switch on your tablet, press and hold the power key until the tablet starts up.
2. Follow the instructions shown on the screen.

LOCK OR UNLOCK YOUR TABLET

Lock your keys and screen

To lock your keys and screen, press the power key.

Unlock the keys and screen

Press the power key, and swipe up across the screen. If asked, provide additional credentials.

USE THE TOUCH SCREEN

Avoid scratching the touch screen. Never use an actual pen, pencil, or other sharp object on the touch screen.

Tap and hold to drag an item

Place your finger on the item for a few seconds and slide it across the screen.

Quick Pull

Place your finger on the screen and slide it in the direction you want.

Scroll through a long list or menu

To swipe, quickly slide your finger up or down the screen and then release it. To stop scrolling, tap the screen.

Zoom in or out

Place 2 fingers on an item such as a map, photo, or webpage and slide them apart or together.

Lock the screen orientation

The screen rotates automatically when you turn the tablet 90 degrees.
To lock the screen in portrait mode, swipe down from the top of the screen, and tap Auto-rotate > Off.

Navigate with gestures

To switch on using gesture navigation, tap Settings > System > Gestures > System navigation > Gesture navigation.

• To see all your apps, swipe up from the screen.
• To go to the home screen, swipe up from the bottom of the screen. The app you were in stays open in the background.
• To see which apps you have open, swipe up from the bottom of the screen without releasing your finger until you see the apps, and then release your finger.
• To switch to another open app, tap the app.
• To close all the open apps, tap CLEAR ALL.
• To go back to the previous screen you were in, swipe from the right or left edge of the screen. Your tablet remembers all the apps and websites you've visited since the last time your screen was locked.

Navigate with keys

To switch on the navigation keys, tap Settings > System > Gestures > System navigation > 3-button navigation.

• To see all your apps, swipe up the home key.
• To go to the home screen, tap the home key. The app you were in stays open in the background.
• To see which apps you have open, tap.
• To switch to another open app, swipe right and tap the app.
• To close all the open apps, tap CLEAR ALL.
• To go back to the previous screen you were in, tap . Your tablet remembers all the apps and websites you've visited since the last time your screen was locked.

Basic Steps

CONTROL VOLUME

Change the volume

To change the volume of the tablet, press the volume keys.

Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels.

Change the volume for media and apps

1. Press a volume key to see the volume level bar.
2. Tap .
3. Drag the slider on the volume level bars left or right.
4. Tap DONE.

Set the tablet to silent

1. Press a volume key.
2. Tap > .

AUTOMATIC TEXT CORRECTION

Use keyboard word suggestions

Your tablet suggests words as you write, to help you write quickly and more accurately. Word suggestions may not be available in all languages.

When you start writing a word, your tablet suggests possible words. When the word you want is shown in the suggestion bar, select the word. To see more suggestions, tap and hold the suggestion.

Tip: If the suggested word is marked in bold, your tablet automatically uses it to replace the word you wrote. If the word is wrong, tap and hold it to see a few other suggestions.
If you do not want the keyboard to suggest words while typing, turn off the text corrections. Tap Settings > System > Languages & input > On-screen keyboard. Select the keyboard you normally use. Tap Text correction and switch off the text correction methods you do not want to use.

Correct a word

If you notice that you have misspelled a word, tap it to see suggestions for correcting the word.

Switch spell checker off

Tap Settings > System > Languages & input > Spell checker, and switch Use spell checker off.

BATTERY LIFE

There are steps you can take to save power on your tablet.

Extend battery life

To save power:

1. Always charge the battery fully.
2. Mute unnecessary sounds, such as touch sounds. Tap Settings > Sound, and select which sounds to keep.
3. Use wired headphones, rather than the loudspeaker.
4. Set the screen to switch off after a short time. Tap Settings > Display > Screen timeout and select the time.
5. Tap Settings > Display > Brightness level. To adjust the brightness, drag the brightness level slider. Make sure that Adaptive brightness is switched off.
6. Stop apps from running in the background.
7. Use location services selectively: switch location services off when you don't need them. Tap Settings > Location, and switch off Use location.
8. Use network connections selectively: Switch Bluetooth on only when needed. Stop your tablet scanning for available wireless networks. Tap Settings > Network & internet > Internet, and switch off Wi-Fi.

ACCESSIBILITY

You can change various settings to make using your tablet easier.

Make the text on the screen larger

1. Tap Settings > Accessibility > Text and display.
2. Tap Font size, and tap the the font size slider until the text size is to your liking.

Make the items on the screen larger

1. Tap Settings > Accessibility > Text and display.
2. Tap Display size, and tap the display size slider until the size is to your liking.

Protect your tablet

PROTECT YOUR TABLET WITH A SCREEN LOCK

You can set your tablet to require authentication when unlocking the screen.

Set a screen lock

1. Tap Settings > Security > Screen lock.
2. Choose the type of lock and follow the instructions on your tablet.

PROTECT YOUR TABLET WITH YOUR FACE

Set up face authentication

1. Tap Settings > Security > Face unlock.
2. Select what backup unlocking method you want to use for the lock screen and follow the instructions shown on your tablet.

Keep your eyes open and make sure your face is fully visible and not covered by any object, such as a hat or sunglasses.

Note: Using your face to unlock your tablet is less secure than using a pin or a pattern. Your tablet may be unlocked by someone or something with similar appearance. Face unlock may not work properly in backlight or too dark or bright environment.

Unlock your tablet with your face

To unlock your tablet, just turn your screen on and look at the front camera.
If there is a facial recognition error, and you cannot use alternative sign-in methods to recover or reset the tablet in any way, your tablet will require service. Additional charges may apply, and all the personal data on your tablet may be deleted. For more info, contact the nearest authorized service facility for your tablet, or your tablet dealer.

Camera

CAMERA BASICS

Take photos

Capture the best shots in your photo album by taking clear, vibrant photos.

1. Tap Camera.
2. Aim and focus the lens at your subject.
3. Tap .

Take a selfie

1. Tap Camera > to switch to the front camera.
2. Tap .

Take photos with a timer

1. Tap Camera.
2. Tap and select the time.
3. Tap .

Record a video

1. Tap Camera.
2. To switch to the video recording mode, tap Video.
3. Tap to start recording.
4. To stop recording, tap .
5. To go back to camera mode, tap Photo.

YOUR PHOTOS AND VIDEOS

View photos and videos on your tablet

Tap Photos.

Share your photos and videos

1. Tap Photos, tap the photo you want to share and tap .
2. Select how you want to share the photo or video.

Internet and Connections

ACTIVATE WI-FI

Switch on Wi-Fi

1. Tap Settings > Network & internet > Internet.
2. Switch Wi-Fi on.
3. Select the connection you want to use.

Your Wi-Fi connection is active when is shown on the status bar at the top of the screen.

Use encryption to increase the security of your Wi-Fi connection. Using encryption reduces the risk of others accessing your data.

BROWSE THE WEB

Search the web

1. Tap Chrome.
2. Write a search word or a web address to the search field.
3. Tap , or select from the proposed matches.

Use your tablet to connect your computer to the web

Use your mobile data connection to access the internet with your computer or other device.

1. Tap Settings > Network & internet > Hotspot & tethering.
2. Switch on Wi-Fi hotspot to share your mobile data connection over Wi-Fi, USB tethering to use a USB connection, Bluetooth tethering to use Bluetooth, or Ethernet tethering to use a USB Ethernet cable connection.

The other device uses data from your data plan, which may result in data traffic costs. For info on availability and costs, contact your network service provider.

BLUETOOTH®

Connect to a Bluetooth device

1. Tap Settings > Connected devices > Connection preferences > Bluetooth.
2. Switch on Use Bluetooth.
3. Make sure the other device is switched on. You may need to start the pairing process from the other device. For details, see the user guide for the other device.
4. Tap Pair new device and tap the device you want to pair with from the list of discovered Bluetooth devices.
5. You may need to type in a passcode. For details, see the user guide for the other device.

Since devices with Bluetooth wireless technology communicate using radio waves, they do not need to be in direct line-of-sight. Bluetooth devices must, however, be within 10 meters (33 feet) of each other, although the connection may be subject to interference from obstructions such as walls or from other electronic devices.

Paired devices can connect to your tablet when Bluetooth is switched on. Other devices can detect your tablet only if the Bluetooth settings view is open.

Do not pair with or accept connection requests from an unknown device. This helps to protect your tablet from harmful content.

Share your content using Bluetooth

If you want to share your photos or other content with a friend, send them to your friend's device using Bluetooth.

You can use more than one Bluetooth connection at a time. For example, while using a Bluetooth headset, you can still send things to another device.

1. Tap Settings > Connected devices > Connection preferences > Bluetooth.
2. Make sure Bluetooth is switched on in both devices and the devices are visible to each other.
3. Go to the content you want to send, and tap > Bluetooth.
4. On the list of found Bluetooth devices, tap your friend's device.
5. If the other device needs a passcode, type in or accept the passcode, and tap PAIR.

The passcode is only used when you connect to something for the first time.

Remove a pairing

If you no longer have the device with which you paired your tablet, you can remove the pairing.

1. Tap Settings > Connected devices > Previously connected devices.
2. Tap next to a device name.
3. Tap FORGET.

VPN

You may need a virtual private network (VPN) connection to access your company resources, such as intranet or corporate mail, or you may use a VPN service for personal purposes.

Contact your company IT administrator for details of your VPN configuration, or check your VPN service's website for additional info.

Use a secure VPN connection

1. Tap Settings > Network & internet > VPN.
2. To add a VPN profile, tap .
3. Type in the profile info as instructed by your company IT administrator or VPN service.

Edit a VPN profile

1. Tap next to the profile name.
2. Change the information as needed.

Delete a VPN profile

1. Tap next to a profile name.
2. Tap FORGET.

Organize your day

DATE AND TIME

Set date and time

Tap Settings > System > Date & time.

Update the time and date automatically

You can set your tablet to update the time, date, and time zone automatically. Automatic update is a network service and may not be available depending on your region or network service provider.

1. Tap Settings > System > Date & time.
2. Switch on Set time automatically.
3. Switch on Use location to set time zone.

Change the time format to 24-hour clock

Tap Settings > System > Date & time and turn Use 24-hour clock on.

ALARM CLOCK

Set an alarm

1. Tap Clock > Alarm.
2. To add an alarm, tap .
3. Select the hour and the minutes, and tap OK. To set the alarm to repeat on specific dates, tap the corresponding weekdays.

Turning off the alarm

When the alarm rings, pull the alarm to the right.

CALENDAR

Manage calendars

Tap Calendar > , and select what type of calendar you want to see.

Add an event

1. In Calendar , tap .
2. Type in the details you want, and set the time.
3. To make an event repeat on certain days, tap Does not repeat, and select how often the event should repeat.
4. To set a reminder, tap Add notification, set the time and tap Done.
5. Tap Save.

Tip: To edit the event, tap the event, tap , and then edit the details.

Delete an appointment

1. Tap the event
2. Tap > Delete.

Maps

FIND PLACES AND GET DIRECTIONS

Find a place

Google Maps helps you find specific locations and businesses.

1. Tap Maps.
2. Type a search word, such as a street or place name, into the search bar.
3. Tap to search. Select an item from the list of suggested matches as you type, or tap to search.

The location is shown on the map. If no search results are found, make sure you spelled your search words correctly.

Browse your current location

Tap Maps >

Get directions to a place

1. Tap Maps and enter your destination in the search bar.
2. Tap Directions. The highlighted icon shows the mode of transportation, for example . To change the mode, select the new mode under the search bar.
3. If you don't want the starting point to be your current location, tap Your location, and search for a new starting point.
4. Tap Start to start the navigation.

Apps, updates and backups

GET APPS FROM GOOGLE PLAY

Add a Google account to your tablet

To use Google Play services, you need to have a Google account added to your tablet.

1. Tap Settings > Passwords & accounts > Add account > Google.
2. Type in your Google account credentials and tap Next, or, to create a new account, tap Create account.
3. Follow the instructions on your tablet.

Add a payment method

Charges may apply to some of the content available in Google Play. To add a payment method, tap Play Store, tap your Google logo in the search field, and then tap Payments & subscriptions. Always be sure to have a permission from the payment method owner when buying content from Google Play.

Install an app

1. Tap Play Store.
2. To search for apps, tap the search bar or select an app from the suggestions.
3. Tap Install in the app description to download and install the app.

To see your apps, go to the home screen and swipe up from the bottom of the screen.

UPDATE YOUR TABLET SOFTWARE

Install available updates

Tap Settings > System > System update > Check for update to check if updates are available.

When your tablet notifies you that an update is available, just follow the instructions shown on your tablet. If your tablet is low on memory, you may need to move your photos and other stuff to the memory card.

If you install a software update, you cannot use the device until the installation is completed and the device is restarted.

Before starting the update, connect a charger or make sure the device battery has enough power, and connect to Wi-Fi, as the update packages may use up a lot of mobile data.

BACK UP YOUR DATA

To ensure your data is safe, use the backup feature in your tablet. Your device data (such as Wi-Fi passwords) and app data (such as settings and files stored by apps) will be backed up remotely.

Switch on automatic backup

Tap Settings > System > Backup, and switch back up on.

RESTORE ORIGINAL SETTINGS AND REMOVE PRIVATE CONTENT

Reset your tablet

1. Tap Settings > System > Reset options > Erase all data (factory reset).
2. Follow the instructions shown on your tablet.

ADDITIONAL INFORMATION

Battery and charger info

To check if your tablet has a removable or non-removable battery, see the Get started guide.

Devices with a removable battery
Use your device only with an original rechargeable battery.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the standby time is noticeably shorter than normal, replace the battery.

Devices with a non-removable battery
Do not attempt to remove the battery, as you may damage the device. The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the standby time is noticeably shorter than normal, to replace the battery, take the device to the nearest authorized service facility.

Charge your device with a compatible charger. Charger plug type may vary. Charging time can vary depending on device capability.

Use the Low blue light mode

Blue light is a color in the visible light spectrum that can be seen by the human eye. Of all the colors that the human eye perceives (violet, indigo, blue, green, yellow, orange, red), blue has the shortest wavelength and thus produces a higher amount of energy. Since blue light passes through your eye's cornea and lens before reaching the retina, it may cause itchy and red eyes, headaches, blurred vision, and poor sleep, for example. To limit and reduce blue light, the display industry has developed solutions such as the Low blue light mode. To switch on the Low blue light mode on your tablet, tap Settings > Display > Night Light > Turn on. If you need to look at your tablet's screen for a long time, take frequent breaks and relax your eyes by looking at distant objects.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Nokia T10 Manual
