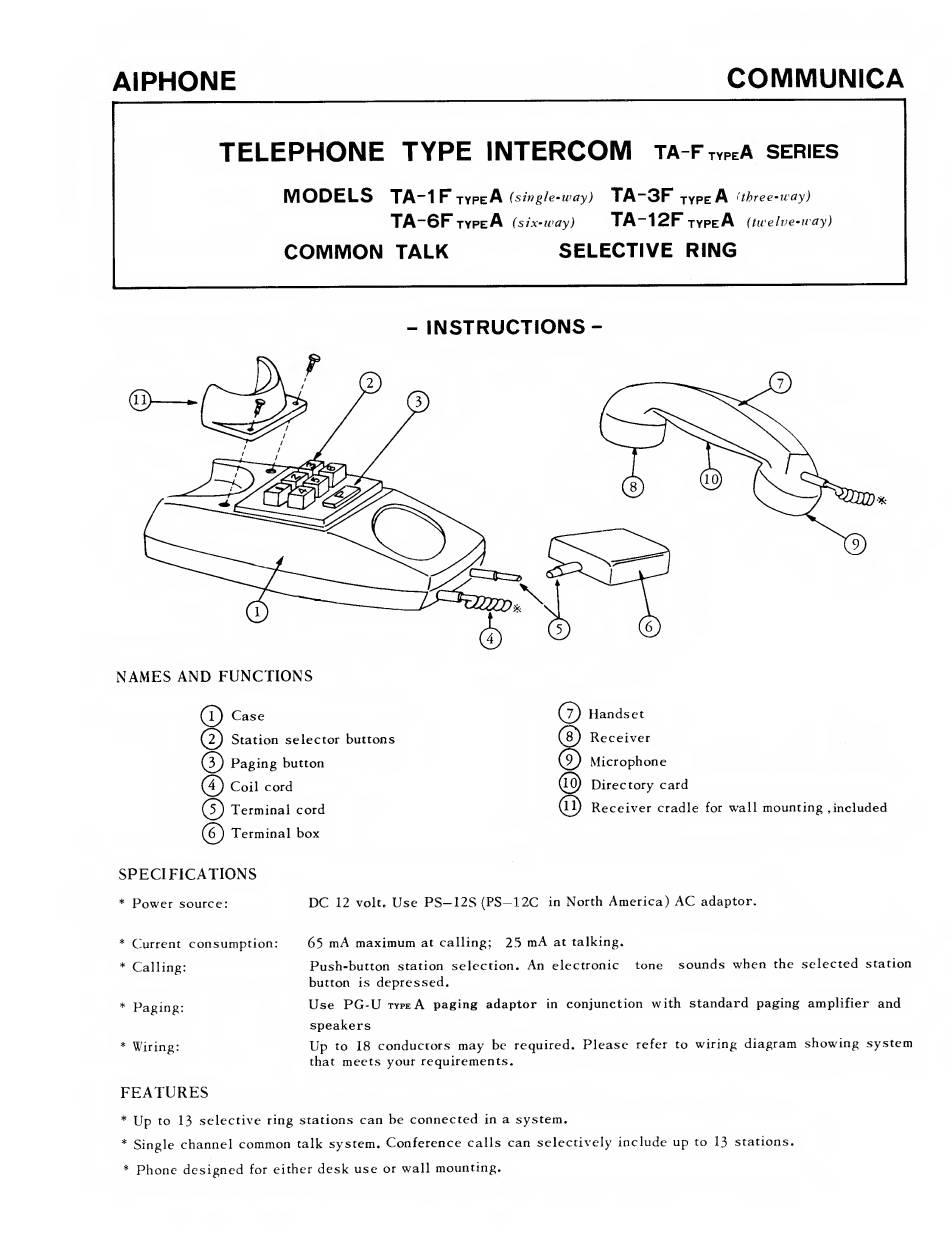

Aiphone TA-F Series Instructions Manual

AIPHONE
COMMUNICA
TELEPHONE TYPE INTERCOM
ta-fTypEa
series
MODELS TA_1 F
typeA
(single-way)
TA"3F
TYPE
A
1three-way)
TA-6F
typeA
(six-tvay)
TA 12P
typeA
(twelve*ivay)
COMMON TALK SELECTIVE RING
- INSTRUCTIONS -
NAMES AND FUNCTIONS
(T) Case
(?) Station selector buttons
(?) Paging button
(?) Coil cord
(?) Terminal cord
(?) Terminal box
(?) Handset
(?) Receiver
(?) Microph one
(lO) Directory card
(lj) Receiver cradle for wall mounting included
SPECIFICATIONS
* Power source:
DC 12 volt. Use PS-12S (PS-12C in North America) AC adaptor.
* Current consumption:
* Calling:
* Paging:
* Wiring:
65 mA maximum at calling; 25 mA at talking.
Push-button station selection. An electronic tone sounds when the selected station
button is depressed.
Use PG-U
typeA
paging adaptor in conjunction with standard paging amplifier and
speakers
Up to 18 conductors may be required. Please refer to wiring diagram showing system
that meets your requirements.
FEATURES
* Up to 13 selective ring stations can be connected in a system.
* Single channel common talk system. Conference calls can selectively include up to 13 stations.
* Phone designed for either desk use or wall mounting.
