Summary of Contents for Aqua AC 100

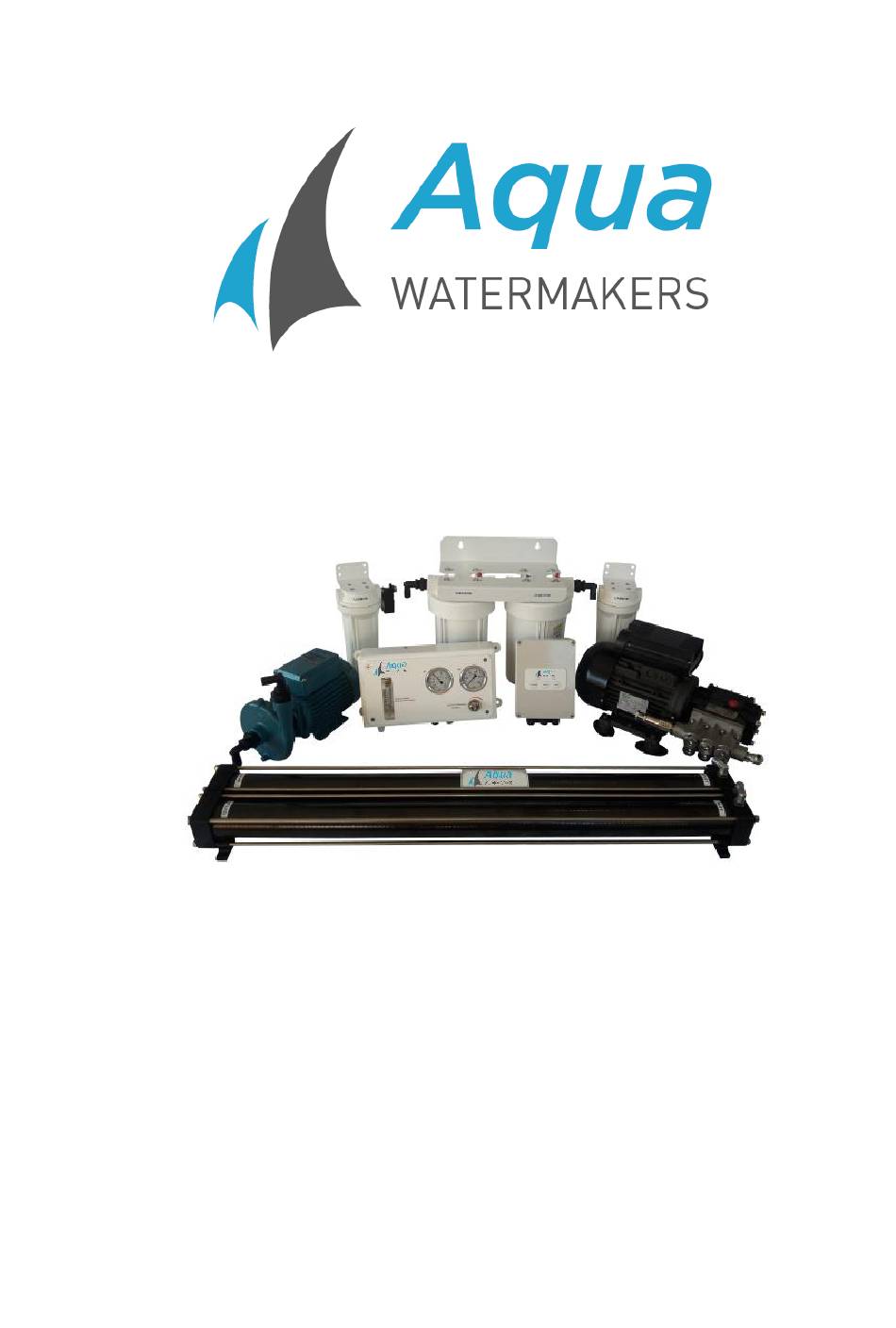

  • Page 1 OWNERS MANUAL...
  • Page 2: Safety In General

    Aqua Watermaker products. SAFETY IN GENERAL Anyone responsible for the installation, operation, and maintenance of the Aqua Watermaker system must read this manual thoroughly and comply with the instructions, guidelines, and safety requirements at all times.
  • Page 3: Electrical Power Requirements

    If you have any questions regarding the installation, operation or maintenance of your water maker please contact Aqua Plumb. We are always happy to assist. SPECIFICATIONS Rated Performance:...
  • Page 4: Standard System Components

    STANDARD SYSTEM COMPONENTS 1. Bronze 0.6 Hp boost pump with a 316 SS shaft. 2. Large floor mounted commercial pre-filter or wall mounted twin jumbo filters. 3. SS 316 high pressure pump with a 2.5 Hp motor. 4. Control panel complete with 316 SS gauges and flow meter. 5.
  • Page 10: Pressure Switches

    COMMISSIONING Before use the storage chemical must be flushed from the system, this happens under low pressure. Operation under pressure with the storage chemical results in irreversible fouling of the membranes. Start up 1. Insure sea intake valve and over board discharge is open. 2.
  • Page 11: Operation

    OPERATION Start up 1. Ensure sea intake valve and over board discharge is open. 2. The genset must be running or shore power on and sufficient power available. 3. Press the start button on the controller. 4. Adjust the high pressure to max 900 (range 700-950psi) psi or maximum rated product water flow (whichever occurs first).
  • Page 12: Remote Control

    Remote Control With the pressure pre-set the unit can now be operated from the remote control. Faults A low pressure fault will occur when the feed water pressure drops below 5 psi. The fault light will flash before shutting down the pumps followed by a solid red fault light.
  • Page 13 TEMPERARURE vs. FLOW CHART Below is a graph detailing how temperature affects the product water.
As the water temperature increases, the membrane expands allowing more product water through. If the water temperature drops the membrane shrinks which reduces its output. The adjustment
of the pressure can compensate up to the maximum operating pressure.
  • Page 14: Maintenance Timetable

    MAINTENANCE TIMETABLE The following maintenance timetable is an estimate of the time intervals at which maintenance may be required only. This schedule must be adjusted to the regularity of usage, the condition of the intake water, the length of time the system is exposed to seawater and the total running time following each system cleaning.
  • Page 15 AQUA WATERMAKER WARRANTY Aqua Plumb Ak Wide Ltd warrants for a period of 1 year from the date of supply that the Aqua Watermaker will perform according to specifications. The triplex plunger high - pressure pump and the high pressure vessel/s are warranted for 1 year to the original purchaser.
Aqua Plumb Ak Wide Ltd’s liability under this warranty shall be...

This manual is also suitable for:

Ac 200Ac 260
