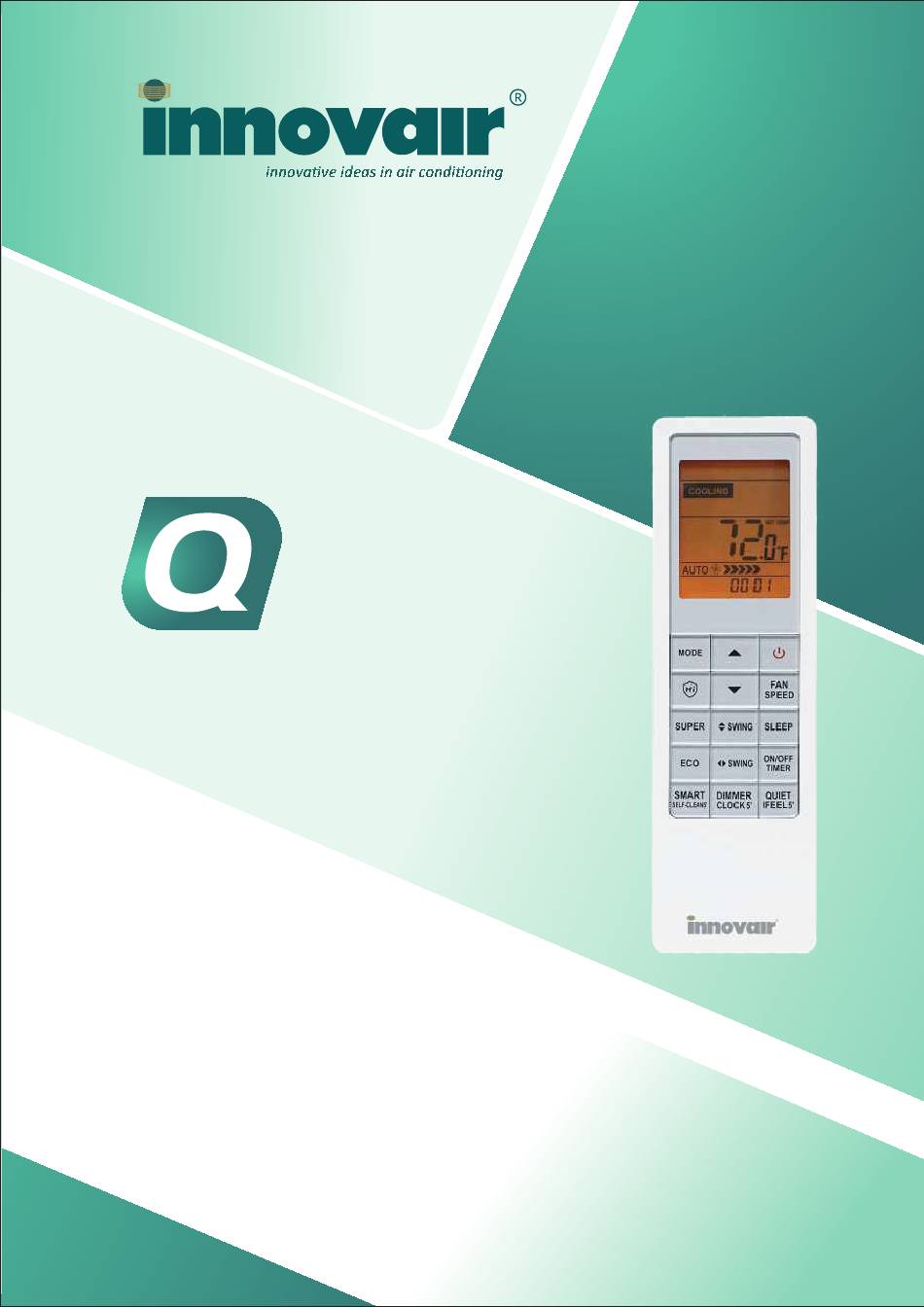

- Page 1 SERIES REMOTE CONTROLLER INSTRUCTIONS Thank you very much for purchasing this Air Conditioner. Please read this instructions carefully before using this appliance and keep this manual for future reference.
-
Page 2: Table Of Contents
REMOTE CONTROLLER INSTRUCTIONS RCTLQ Remote controller Operation instructions Operation modes Airflow direction control SMART mode SUPER mode QUIET mode TIMER mode ECO mode IFEEL mode DIMMER button CLOCK button SLEEP mode 8°C HEAT mode HI - NANO mode CLEAN mode Power control mode... -
Page 3: Remote Controller
Instructions REMOTE CONTROLLER *The remote factory setting is set to °C measurement. To change to °F, press and hold and MODE for 3 Remote controller seconds. The remote controller transmits signals to the system. MODE Press this button to select the operation mode. Used to adjust the room temperature and the timer and time. - Page 4 Instructions REMOTE CONTROLLER Remote controller How to Insert the Batteries Slide open the battery cover according to the direction of the arrow. Insert new batteries making sure that the (+) and (-) of battery are matched correctly. Reattach the cover by pressing it back into position. Note: Use 2 LR03 AAA(1.5volt) batteries.
-
Page 5: Operation Instructions
Operation instructions REMOTE CONTROLLER Operation modes Selecting mode Press button The operation modes changes in sequence: Result : FANONLY COOLING FAN ONLY HEATING PRESS Heating mode is NOT available for cooling only air conditioner. FAN mode Press button Result : The fan speed is changes in sequence: Auto FANONLY... -
Page 6: Airflow Direction Control
Operation instructions REMOTE CONTROLLER Turning on Press button . Result : T he RUN indicator of the indoor unit lights up. ℃ SWING , SMART , SUPER , QUIET, TIMER , ECONOMY , IFEEL , DIMMER , CLOCK , SLEEP and 8 HEAT operation modes will be specified in the following pages. -
Page 7: Smart Mode
Operation instructions REMOTE CONTROLLER Press " " button again . Result : The louvers swing to a suitable angle as desired. NOTE:If the unit doesn’t have four ways airflow function, you can adjust PRESS horizontal airflow by yourself.(invalid for some models) Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. - Page 8 Operations Instructions REMOTE CONTROLLER The operation mode is determined by the difference between the indoor temperature and set temperature. Heat pump models Indoor temperature Operation mode Target temperature Below T-3℃( 3°F HEATING ≤T ≤ T-3℃ T+3℃( 3°F FAN ONLY indoor ver T+3℃( 3°F COOLING...
-
Page 9: Super Mode
Operation instructions REMOTE CONTROLLER SUPER mode SUPER mode is used to start or stop fast cooling or heating only when the unit is on. SUPER mode can be set when the unit is in operation or in standby. In SUPER mode, you can set temperature, airflow direction or timer How to set SUPER mode? Press button at the cool, dry and fan only mode. -
Page 10: Timer Mode
Operation instructions REMOTE CONTROLLER TIMER mode Using the ON TIMER buttons, you can conveniently set the air conditioner to start when you leave in the morning, ensuring a comfortable room temperature by the time you return home. Additionally, you can set the OFF TIMER at night to enjoy a restful sleep. -
Page 11: Ifeel Mode
Operation instructions REMOTE CONTROLLER IFEEL mode The built-in temperature sensor will sense the surrounding temperature, and transmit this back to the unit. This temperature will be your set point until you make another adjustment to the set point. How to set IFEEL mode ? Press the button for about 5 seconds. -
Page 12: Sleep Mode
Operation instructions REMOTE CONTROLLER SLEEP mode SLEEP mode can be set in COOLING ,HEATING or DRYING mode. This function gives you a more comfortable environment for sleep. The system will stop operation automatically after operating for 8 hours. Fan speed is automatically set at low speed. How to set SLEEP mode ? Each time button is pressed. -
Page 13: Clean Mode
Operation instructions REMOTE CONTROLLER CLEAN mode (optional) When the air conditioner and remote controller are in standby, and the mode of remote controller is in Cooling or Dry, press“ ” button for 5 seconds to start Clean mode,then the indicator “ ”... - Page 14 Version No.2339282-01...
