MODULAR RHOMBIC CUBER
INSTRUCTION MANUAL
●This booklet is an integral and essential part of the product and should be kept and
preserved by the user.
●Please read carefully the guidelines and warnings contained herein as they are
intended to provide the installer / user with the essential information for the proper
installation and continued safe use and maintenance of the product.
●Please preserve this booklet for any further consultation that may be necessary.
Manufacturer:
No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126. China
SRM-270AB
SRM-200AB
SRM-270AB
SRM-200AB
L1M135103(113024)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki ICE MATE SRM-270AB
Summary of Contents for Hoshizaki ICE MATE SRM-270AB
- Page 1 MODULAR RHOMBIC CUBER INSTRUCTION MANUAL SRM-270AB SRM-200AB SRM-270AB SRM-200AB ●This booklet is an integral and essential part of the product and should be kept and preserved by the user. ●Please read carefully the guidelines and warnings contained herein as they are intended to provide the installer / user with the essential information for the proper installation and continued safe use and maintenance of the product.
-
Page 2: Table Of Contents
CONTENT IMPORTANT SAFETY INFORMATION ..................1 Ⅰ.INSTALLATION INSTRUCTIONS ................... 2 1.CONSTRUCTION ........................2 2.ACCESSORIES ........................3 3.UNPACKING .......................... 3 4.LOCATION ..........................4 5.INSTALLATION........................4 6.ELECTRICAL CONNECTIONS ................... 5 7.WATER SUPPLY AND DRAIN CONNECTIONS ............5 Ⅱ.OPERATING INSTRUCTIONS ....................6 1.START UP ..........................6 2.PREPARING THE ICEMAKER FOR LONG STORAGE .......... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury or damage to the unit. WARNING Indicates a hazardous situation which, If not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, If not avoided, could result in minor or moderate injury. -
Page 4: Ⅰ.installation Instructions
Ⅰ. INSTALLATION INSTRUCTIONS 1.CONSTRUCTION Top Panel Control Box Power Switch Left Panel Front Panel Name Plate [SRM-270AB] [SRM-200AB] Metal filter Right Panel [SRM-270AB] [SRM-200AB]... -
Page 5: Accessories
2.ACCESSORIES SRM-270AB SRM-200AB 3.UNPACKING WARNING CAUTION NOTICE... -
Page 6: Location
3）Remove the protective film from the exterior. If the icemaker is exposed to the sun or to heat, remove the film after theicemaker cools. 4）Remove the front panel and top panel, then remove accessories from the machine room. 5）Remove the package of accessories. Check the contents according to "2.ACCESSORIES". 4.LOCATION WARNING This ice maker is not intended for outdoor use. -
Page 7: Electrical Connections
6.ELECTRICAL CONNECTIONS WARNING THIS APPLIANCE MUST BE EARTHED This icemaker requires an earth that meets the national and local electrical code requirements. To prevent possible severe electrical shock to individuals or extensive damage to the unit, install a proper earth wire to the icemaker. Disconnect the main power supply before any maintenance, requires or cleaning is undertaken. -
Page 8: Ⅱ.operating Instructions
Ⅱ.OPERATING INSTRUCTIONS CAUTION Do not put your hands into the the ice drop space or water tank. The ice on the evaporator may drop off, a hard block of ice may suddenly break down, or pump motor may suddenly start-up, resulting in injury. Water Tank Ice drop space NOTICE... -
Page 9: Ⅲ.maintenance
Step 3: Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a suitable container or the recommended Hoshizaki sanitiser as directed. Step 4: Soak a clean sponge or cloth with the solution, and wipe the bin liner and door inner surface. -
Page 10: [E]Icemaking Water System
●Please wash the work clothes you wear when handling agents. About agent ■use the agent recommended by the manufacturer. ■Please contact Hoshizaki sales company about agents. ■If you have any other questions, please contact the agent's manufacturer. ■Please prepare the agent according to the following proportions:... - Page 11 Model Name cleaner Proportion Model Name sanitizer Proportion dosage of water dosage of water SRM-270AB 122.9g 1.5L SRM-270AB 30.8g SRM-200AB 122.9g 1.5L SRM-200AB 30.8g ■Cautions ●Regarding the order of use of the agents, please sterilize after washing.Wrong order or using only one of them will reduce cleaning and disinfection effectiveness.
-
Page 12: Precautions
■How to remove the front panel and water tank STEP1 Display STEP2 Hand nut Water tank How to remove the front panel： How to remove the water tank： STEP1:Raise the front panel up to a certain STEP1:Remove the hand nuts on both sides of the position；... - Page 13 Fault Probable Cause Processing method The power switch is not allocated to the "ON" Switch the power switch. position. The connector of the power cord is loose. Fasten the power cord connector. The voltage is too high or too low. Check and use the proposed voltage.
-
Page 14: Before Calling For Service
Warranty repair should be completed by an approved manufacturer dealer or service agency using genuine manufacturer components. To obtain full details of your warranty and the approved service agency, please contact your dealer / supplier or the nearest manufacturer's service office. Repair Hotline: 400-720-6910 E-mail: service@hoshizaki.com.cn SPECIFICATION Model SRM-270AB SRM-200AB Type... - Page 15 TEL: +63 2 8839 2861 sales@hoshizaki.com.ph Hoshizaki Taiwan TEL: +886 2 2706 8818 FAX: +886 2 2708 7999 Hoshizaki Hong Kong TEL: +852 2866 2108 FAX: +852 2866 2109 Manufacturer : NO.15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China...
Need help?
Do you have a question about the ICE MATE SRM-270AB and is the answer not in the manual?
Questions and answers

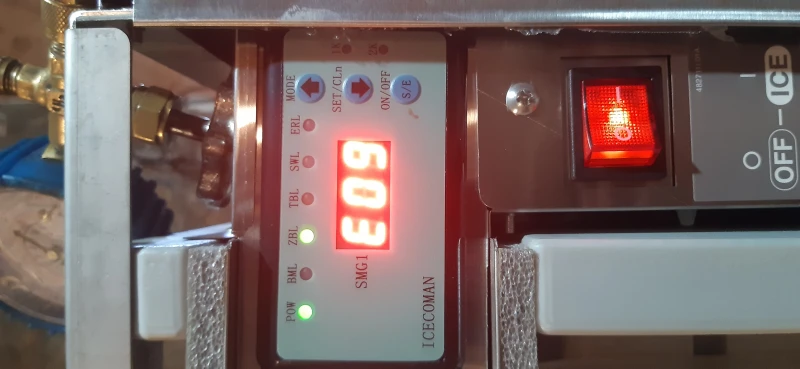

Whats the meaning E 09
