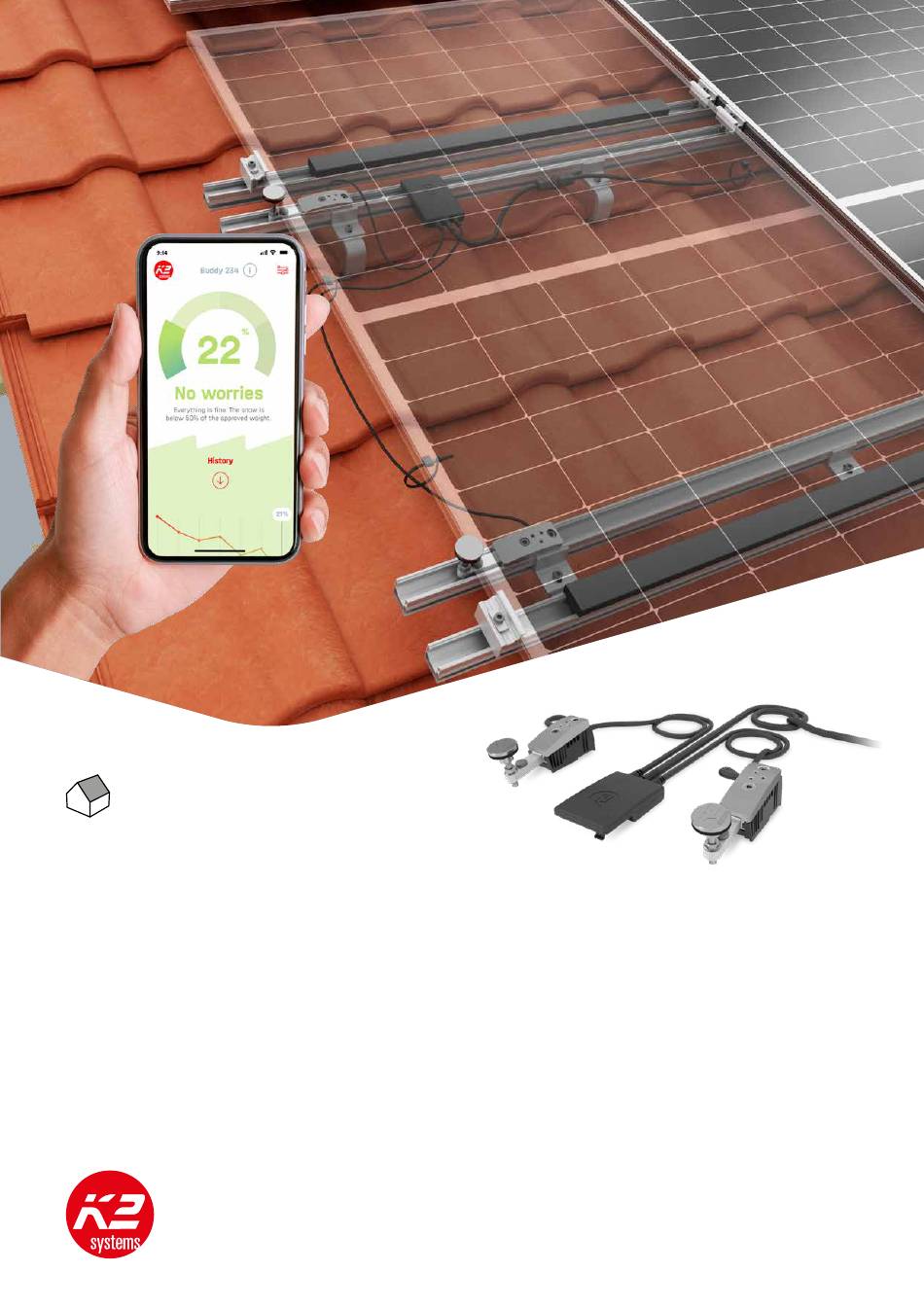

- Page 1 Assembly instructions K2 Buddy TopBox SingleRail systems on clay or concrete tiles Connecting Strength k2-systems.com...
-
Page 2: Table Of Contents
• Notes Tested quality – multiple certifications K2 Systems stands for secure connections, top quality and maximum precision. Our customers and business partners have known this for a long time. Independent bodies have tested, verified and certified our competencies and components. -
Page 3: Tool Overview
Tool overview 5 + 6 mm 8 mm 6 - 30 Nm 6 mm (4.5 - 22.2 lb-ft) Electronics and precision Standard electrician's tools mechanics screwdriver (PH 0) -
Page 4: General Safety Information
General safety information Please note that our general mounting instructions must be followed at all times and can be viewed online at k2-systems.com. • The equipment may only be installed and operated by • During the entire installation period, it must be en- qualified and adequately trained installers. -
Page 5: The Following Generally Applies
The following generally applies Under the following conditions, the K2 Buddy can be installed together with the SingleRail systems and SingleHook 3S. These assembly instructions only apply together with the associated installation and operating instructions for the TopBox and BaseBox at k2-systems.com/buddy-manual. -
Page 6: Components
Components Top Box Set Snow 1000003 TopBox and snow sensors Knurled screw and nut Cable sleeve Item no. project specific! 4× module clamps MC 2002067 Item no. project specific! Suggestion: 4× 2002870 EPDM module bracing SingleRail 36/50 Cable-Manager... -
Page 7: Assembly
Assembly Preparation Installation positions: We recommend installation in the bottom row, as experience has shown that this is where most snow accumulates. However, the installation itself is also possible in the upper rows at the edge. Component installation position Attaching SingleRail as module bracing + 200 mm... - Page 8 16 Nm 16 Nm...
-
Page 9: Insertion Epdm Support
Insertion EPDM support Positioning of snow sensors 16 Nm Do not use BlackCover SingleRail 36! -
Page 10: Insert Topbox And Record Sensor Values
Insert TopBox and record sensor values K2-FKB 3 kN 1,225 mV/V K2-FKB 3 kN 1,475 mV/V SN 0210803123 SN 0210803123 Please make a note of sensitivity values 1 and You will need these for correct project maintenance in the K2 Buddy app. Cable management... - Page 11 Attach the cable manager to the module in the next step. Assignment Name Colour Number +24 V DC Brown White RS485-A Green RS485-B Yellow More details in the installation Shield Do not and operating instructions of the connect! K2 Buddy BaseBox: k2-systems.com/buddy-manual...
-
Page 12: Positioning Measuring Module
Positioning measuring module Only fit the knurled screw so lightly that the EPDM is not compressed. -
Page 14: Notes
Notes... - Page 16 Haldenstraße 1 · 71272 Renningen · Germany +49 (0) 7159 - 42059 - 0 · info@k2-systems.com · k2-systems.com K2 Buddy TopBox SingleHook Manual EN V1 | 1024 · Subject to change without notice Images of the products are exemplary and may differ from the original. Connecting Strength...
