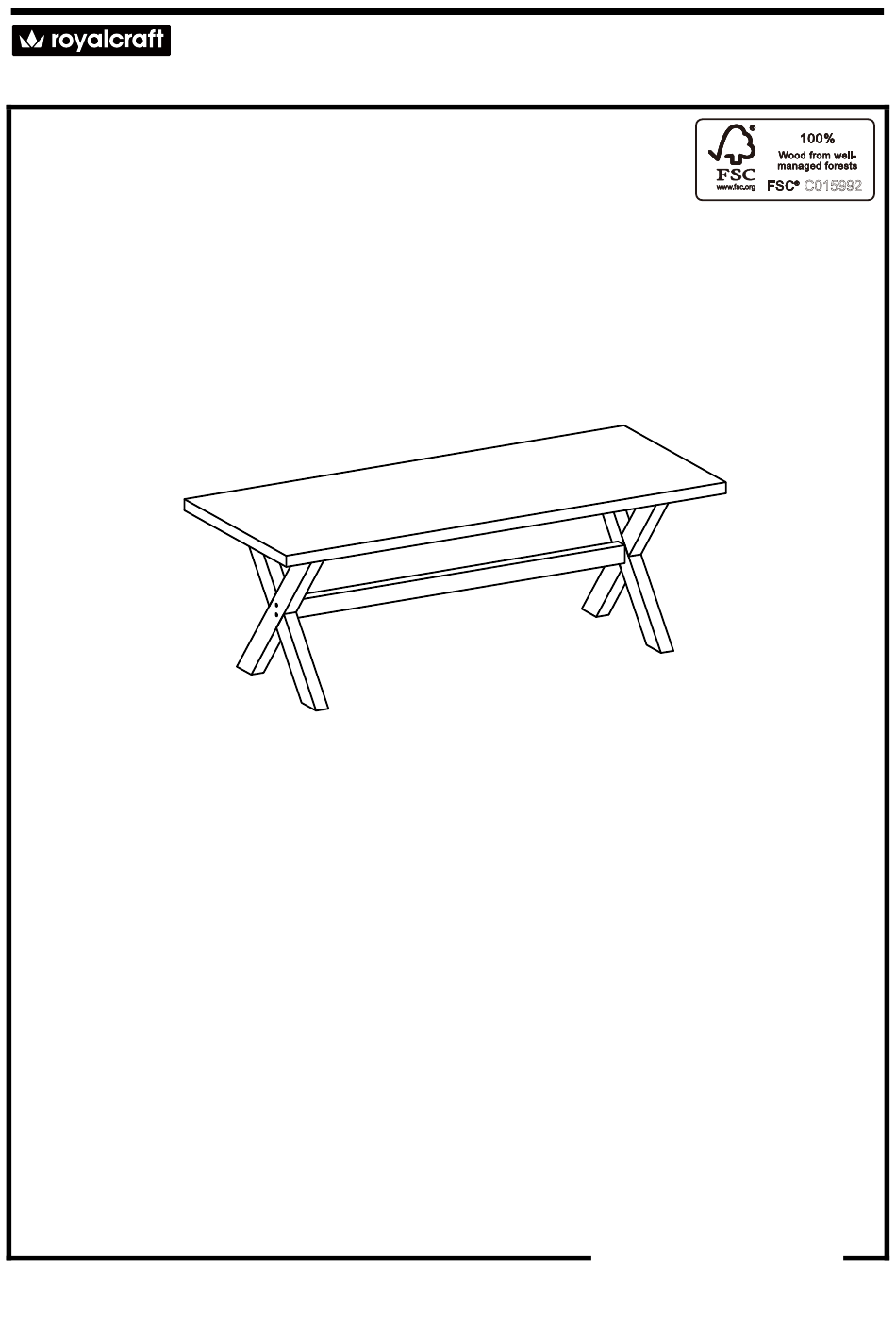

LUNA 180X90CM RECTANGULAR TABLE
ITEM CODE: LUN-180x90T
Assembly Instructions
C015992
Product size:
W180*D90*H75 CM
Furniture should be covered/stored whilst not in use
to prolong its longevity.
(It should also be covered in adverse weather.)
This product is for domestic use only.
IMPORTANT, PLEASE RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
www.royalcraft.co.uk
© A. Mir & Co., Ltd.
1 / 6
Advertisement
Related Manuals for Royalcraft LUNA LUN-180x90T
Summary of Contents for Royalcraft LUNA LUN-180x90T
- Page 1 Furniture should be covered/stored whilst not in use to prolong its longevity. (It should also be covered in adverse weather.) This product is for domestic use only. IMPORTANT, PLEASE RETAIN FOR FUTURE REFERENCE READ CAREFULLY www.royalcraft.co.uk © A. Mir & Co., Ltd. 1 / 6...
- Page 2 30 minutes coat should be applied to all wood surfaces before assembly. www.royalcraft.co.uk © A. Mir & Co., Ltd. 2 / 6...
- Page 3 Ø6 x 100mm Ø6 x 60mm 8 PCS 16 PCS Flat Washer 4 PCS 2 PCS Adjustable Foot Screw Allen Key 8 PCS Bolt Head Cap Step by step assembly instructions www.royalcraft.co.uk © A. Mir & Co., Ltd. 3 / 6...
- Page 4 With the help of another person, attach the Connecting Bar (C) to the Table Leg (B) using Bolts (B100), Flat Washers (FW) and Nuts (N1). Tighten all Bolts with Allen Key (AK). Do Not Over Tighten. B100 FW www.royalcraft.co.uk © A. Mir & Co., Ltd. 4 / 6...
- Page 5 Connecting Bar (C) using Bolts (B100), Flat Washers (FW) and Nuts (N1). Tighten all Bolts with Allen Key (AK). Do Not Over Tighten. Attach the Bolt Head Caps (Z1) to the Bolts Head. B100 www.royalcraft.co.uk © A. Mir & Co., Ltd. 5 / 6...
- Page 6 Tighten all Bolts with Allen Key (AK). Do Not Over Tighten. Level the Table with Adjustable Feet Screws (Z4). Your Table is now ready for use. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE www.royalcraft.co.uk © A. Mir & Co., Ltd. 6 / 6...
