Page 2: Before You Start

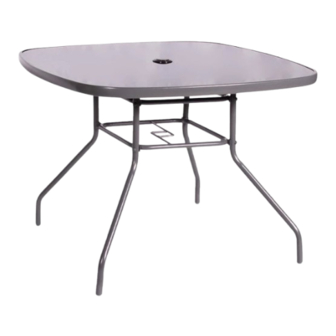

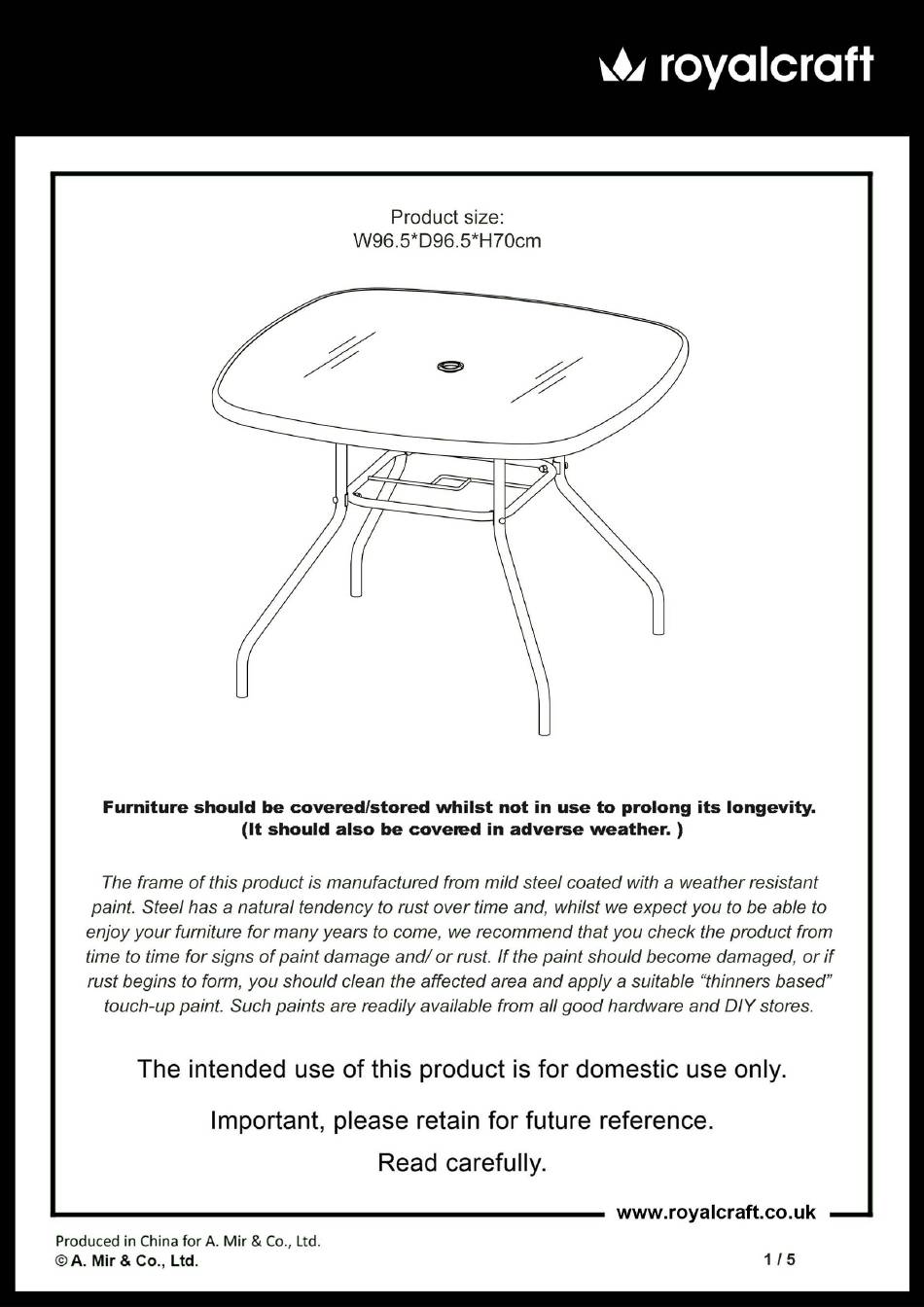

Rio 96.5cm Black Glass Table Assembly instructions Before you start Warnings Don’ts IMPORTANT, RETAIN FOR FUTURE REFERENCE Do not use scourers, abrasives, washing powders, chemical cleaners or any other substances containing abrasives since READ CAREFULLY these substances can damage the product, including the glass panel. -
Page 3: Parts List
Rio 96.5cm Black Glass Table Assembly instructions Components, fixtures & fittings (not actual size) Parts List Part Part Diagram Qty. Diagram Qty. 1 PC 4 PCS Table Top Table Leg 1 PC 1 PC Upper Connecting Bottom Connecting Ring Ring... - Page 4 Rio 96.5cm Black Glass Table Assembly instructions Step by step assembly instructions Note: Tighten only enough to hold parts in place. Do not tighten completely during assembly. Some adjustments may be necessary to ensure all parts are aligned properly. Only tighten the bolts when all bolts and washers are in place.
- Page 5 Rio 96.5cm Black Glass Table Assembly instructions Step Three Place the Bottom Connecting Ring (D) onto the Table Legs (B), using Bolt Head Caps (E), Bolts (F), Flat Washers (G), Nuts (H) and Nut Caps (I). Once you are satisfied with the alignment...
