Summary of Contents for GGMgastro ENH25

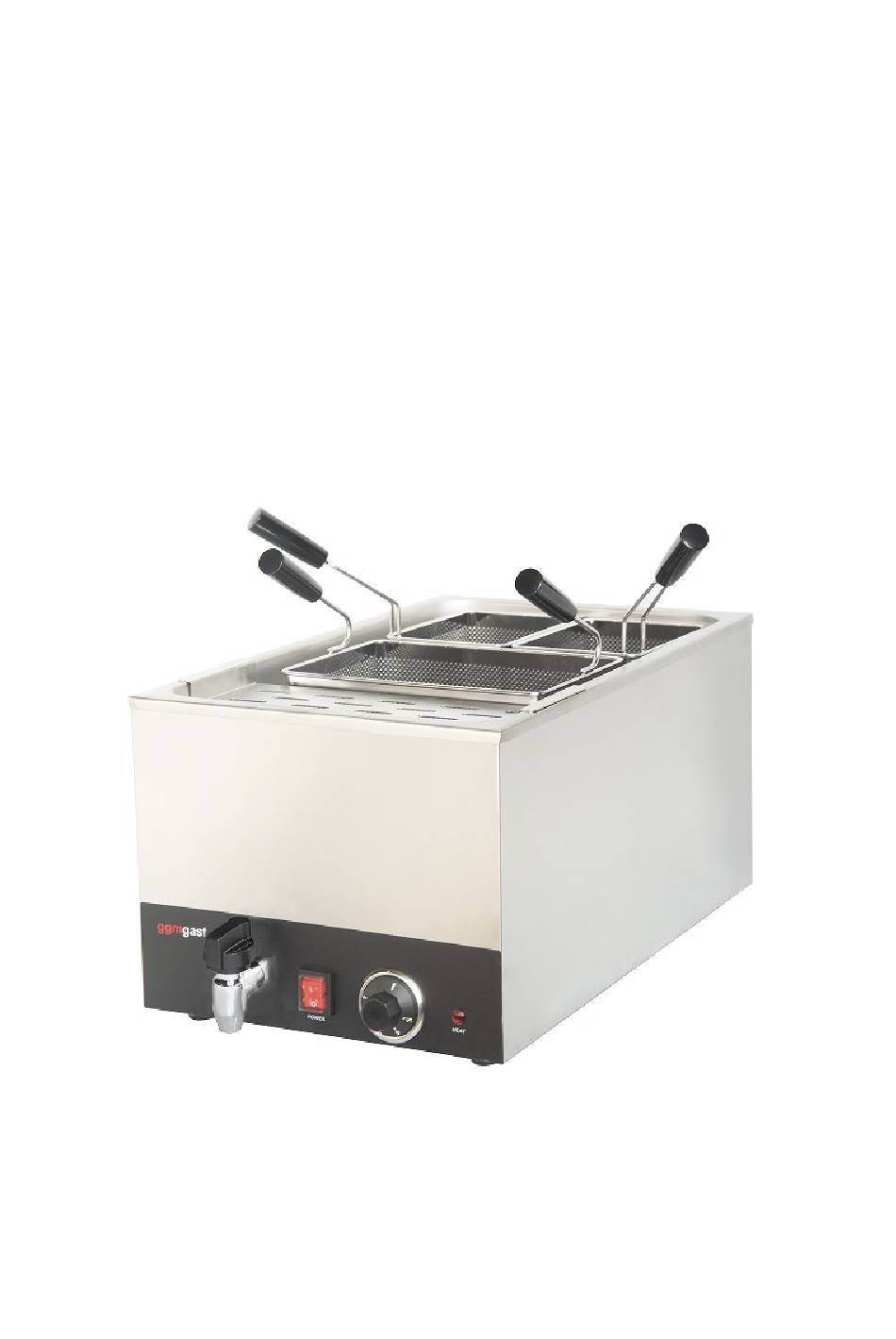

- Page 1 ELECTRIC PASTA COOKER ENH25 INSTRUCTION MANUAL 1 / 19...
- Page 2 First of all, we would like to express our sincere gratitude for your choice of our desktop electric spaghetti cooker. All the information and guidelines in this instruction manual are compiled in compliance with applicable regulations, based on the current state of engineering development as well as our long - term knowledge and experience.
- Page 3 Warning ◆ Any modification, incorrect installation, adjustment, repair or maintenance may lead to property damage or personal injury. If adjustment or repair is required, please contact the supplier, and it should be carried out by trained professionals. ◆ For your safety, please do not store or use flammable, explosive gases, liquids or articles near this product.
-
Page 4: Table Of Contents
regulations. ◆ There are no user-replaceable spare parts for this product. To avoid product damage and personal injury, please use original parts during maintenance. ◆ The outer casing of this machine must be grounded to ensure safety. Thank you for your cooperation! CONTENT 1. -
Page 5: Structural Schematic Diagram
8. Fault Analysis and Troubleshooting Fehler! Textmarke nicht definiert. Brief Introduction to Product Functions The ENH series of desktop electric pasta cookers are developed and designed by our company. Meanwhile, their design also absorbs the advantages of similar products at home and abroad. They feature novel styles, reasonable structures, convenient operation, sturdiness and durability, as well as easy maintenance. -
Page 6: Structural Performance Characteristics
ENH25 Pasta cooker three-view drawings 2.2 Structural Performance Characteristics 1. Made entirely of stainless steel, it is both aesthetically pleasing and durable. With a stretched cylinder body, there are no blind spots for 6 / 19... -
Page 7: Electrical Schematic Diagram
4. Each pasta cylinder is equipped with high-quality heating tubes. 5. The temperature control switch is placed at the front, and there are enlarged control knobs for convenient operation. 2.3 Electrical Schematic Diagram ENH25 / 230V 7 / 19... -
Page 8: Product Specification Parameters
Model/Specification On/off switch R595KDFT1FA-JKA/125V 20A Thermostat WY110-653-21/110℃ Indicator light 230V/Green, no wire Temperature limiter WQS-125-001/125℃/250V/16A Heating pipe ZCP205BT-06/230V/3200W Product Specification Parameters Model No. ENH25 Electrical parameters 230V/50Hz/3200W N.W. 11.67kg G.W. 13.02kg Product Net Dimensions 340*577*400(mm) Packing Size 388*640*450(mm) 260*170*155 Basket Size （mm)/130*170*155(mm) -
Page 9: Installation And Precautions
and internal components. The packaged cookers should not be stored outdoors for a long time. Instead, they should be placed in a warehouse with good ventilation and free of corrosive gases. When temporary storage is required, rainproof measures should be taken. 4.2 Installation and Precautions Electrical connection: The connection of the power cord of the equipment must be carried out by... - Page 10 2. When connecting to the power supply line, the power supply of the equipment needs to be connected to the power grid after passing through an external leakage protection switch with sufficient current-carrying capacity. The leakage action value is 30 mA, and the action time is less than 0.1 seconds.
- Page 11 3. The equipment should be installed separately within the specified range or installed in combination with other equipment as required. 4. There should be a clearance of more than 10 cm from non-combustible materials on the left and right sides of the equipment during installation, and a clearance of more than 20 cm from non-combustible materials (such as brick walls, windows, etc.) at the back.
-
Page 12: Special Precautions
equipment. 11. Never place flammable items (such as towels, etc.) on any position of the stove surface, otherwise it may cause combustion and lead to fire accidents. 12. Immediately turn off the power switch after use. 13. Flammable and explosive items must not be stored near the installation location. - Page 13 purposes, otherwise it may cause danger. 6. Do not shake or tilt the machine during use. 7. Do not disassemble or modify it. Disassembling and modifying the product may lead to serious accidents. 8. Before cleaning, unplug the plug and cut off the power supply. 9.
-
Page 14: Instruction Manual
5. Instruction Manual 1. Before use, it is necessary to check whether the power supply installation is normal and ensure that the power supply voltage matches the operating voltage of the cooker. 2. Turn on the power switch, and the rocker switch light will be on. Then turn the knob to the "ON"... -
Page 15: Cleaning And Maintenance
stop using it. 4. Pay attention to checking the state of the machine before and after using it every day. 5. Is the machine tilted before use? 6. Is the control panel damaged before use? 7. Is the power cord aged, cracked or damaged before use? 8. - Page 16 etc.) to clean the steel surface, even if these products have been diluted. 5. Do not use corrosive substances (for example: potassium chloride) to clean the floor under the equipment. 6. Whenever the equipment is not in use, turn off the product's control switch and power switch.
- Page 17 Temperature limiter Inspect/replace Heating pipe Inspect/replace Instruction light Inspect/replace * means it must be carried out by qualified professionals. 8. Fault Analysis and Troubleshooting Malfunction Reasons Troubleshooting methods 1. There is no power in the power 1. There is no power in the grid.
- Page 18 The above malfunction are for reference only. In case of any malfunction, you should stop using it immediately and notify professional technicians to conduct inspection and maintenance as soon as possible! Safety first! Maintenance must be carried out with the power and gas supply turned off. Please keep this instruction manual carefully for future use! 18 / 19...
- Page 19 +49 2553 7220 0...
