VooPoo ARGUS Manual

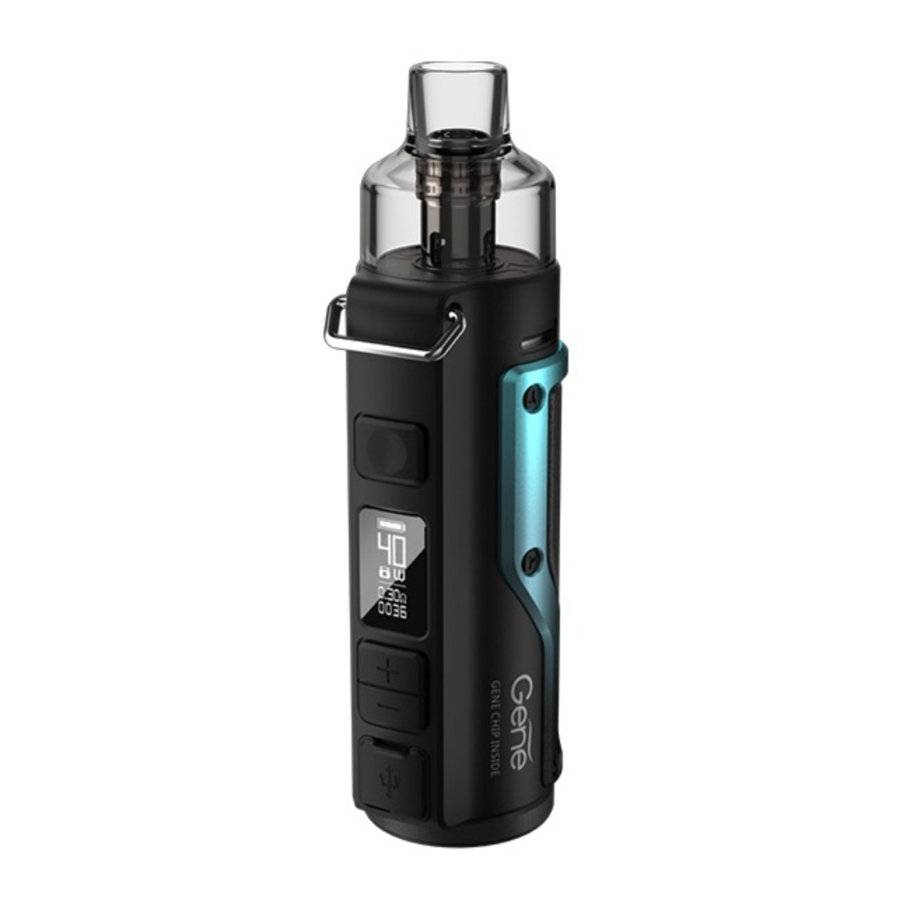

Product Overview

Parameters

• Size: 33*30*108mm (Standard Edition)/33*30*102mm (EU Edition)
• Battery Capacity: 1500mAh
• Output voltage: 3.2~4.2V
• Power range: 5~40W
• Charging voltage: 5V/1A
• Resistance range: 0.3~3.0Ω
• Argus pod: 4.5ml(Standard Edition)/2ml(EU Edition)
• Argus MTL pod: 2ml
• Kit included: PnP-VM1(0.3Ω)&PnP-R2(1.0Ω)
  Other optional RDL PnP coils: PnP-VM3(0.45Ω), PnP-VM4(0.6Ω)
  Other optional MTL PnP coils: PnP-TM1(0.6Ω), PnP-R1(0.8Ω)

Operations Steps

1. Install coil
   • Take out the coil, and Insert the coil from the bottom of the pod

2. Fill e-liquid
   • Pull out the silica gel plug according to the instructions, then refill e-liquid from oil-filling slots. It is recommended to keep two thirds full.

3. Install the atomizer
   • Insert the atomizer with e-liquid into the mod.

4. Start to use the device
   • After keeping it stand for about five minutes, you are free to use the device. You can adjust the airflow in order to enjoy optimal vaping experience.


Interface introduction

Function description

1. On/off: Short press on fire button five times.
2. Mode switching: Short press on fire button three times.

	Manual mode
	Double Ignition mode (press buttons or adopt automatic mode) For better experience of auto-mode, air intake should be adjusted in accordance with different coils.

3. PUFF clear: Press the fire button and "-" button at the same time.
4. Lock/unlock: Press the fire button and "+" button at the same time. (The product can not be fired when locked or adjust power.)
   Lock (Support Vaping in Auto-mode while screen locked)
5. Charging: Support charging with 5V/1A. It is recommended to use the USB cable provided by VOOPOO to charge the device.
6. Status notification:

7. Software upgrading: Consumers have access to upgrade the software to the latest version on VOOPOO official website (www.voopoo.com), which requires the specific Type-C USB cable equipped with voopoo product to connect the computer. Meanwhile, the side of Type-C data line marked with " ▲ " shall face downward. Please keep your device fully charged.


Security Protection

• Overtime protection
• Output over-current protection
• Low battery protection
• Max Power Protection
• Over temperature protection
• Overcharge protection
• Atomizer short-circuit protection

Warm Prompt

By Air
There is a possibility of e-liquid leakage at high pressure when you travel by air. Therefore, please separate your pods from other important objects.

Deal with Condensate
There may be slight condensation of fluid due to the difference between indoor and outdoor temperature when you use the device. It is advisable to take out the pod, and shake it downwards.

Precautions for Daily Use of Leather

1. Please try to avoid scratches by sharp objects or direct friction against rough articles.
2. Please try to avoid contact with corrosive substances such as acids and bases, or alcohol or alcoholic liquids from coming into contact with leather surface.
3. Please use a soft cotton cloth to clean the dirt on the leather surface.

Attention

1. This product is not recommended for minors, pregnant or breast-feeding women, or anyone at risk of heart disease, depression and asthma.
2. Please keep the device away from heat, fire and water. This device should be stored in a cool and shady environment.
3. Please do not drop, throw or immerse the device into the water.
4. Please turn off or lock the device to avoid accidental firing when you carry it out.
5. Please rationally use the device according to personal situation. If discomfort occurs, please stop using it immediately.
6. EEE Recycling: This product should not be treated as household waste, instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
7. Battery Recycling: The battery of this product should not be treated as household waste, instead it should be handed over to the applicable used battery collection point for recycling.
8. It is recommended to use the USB cable provided by VOOPOO to charge the device
9. During the long-term unused period of the device, in order to prevent discharge, it is recommended to charge regularly!
10. The storage period of the equipment shall be within 3 months: the ambient temperature ranges from -5℃ - 30℃, with humidity 25%±75%RH. Operating temperature of electronic cigarette: 0℃-40℃!
11. Disassembly is prohibited after product failure!
12. Only for indoor charging, please use UL-certified USB charger to charge the Device to avoid the danger of fire and explosion!

Manufacturer:
Shenzhen Woody Vapes Technology Co., Ltd. (VOOPOO)
Address: Block 1, Shapuyangyong Industry Park, Songgang, Bao'an District, Shenzhen, Guangdong, China.
Email: support@voopoo.com
Website: www.voopoo.com
Instagram: voopootechofficial
Facebook: voopootech

Contact in EU:
Vaping Legal Ltd
Address: Armstrong House, First Avenue, Robin Hood Airport, Doncaster.
DN9 3GA. UK
Email: compliance@tpdcompliance.eu

If you have any problems with using this product, please contact our local agent or visit our official website at www.voopoo.com.
