- Page 1 Manual Instruction...
- Page 2 Introduction: Thanks for your purchase of a VOOPOO product.In order for you to have better use of all the functions of this product,please carefully read the operation notes and detailed functional instructions before your first use of this product.If you have any problems with...

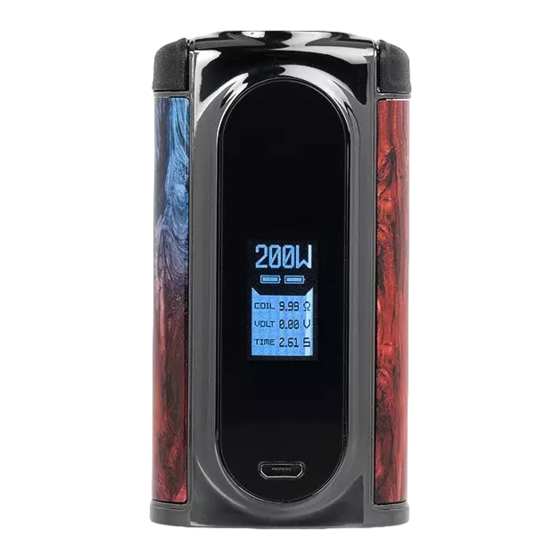

- Page 3 Product Appearance Power Button 510 Thread UP/DOWN Button OLED Screen USB Port...
- Page 4 Operating Instructions: A. How to turn on/off: Press the fire button 5 times rapidly. B. How to switch between Power and Temperature modes: Press the fire button 3 times rapidly to rotate between modes. (W→SS316→ Ni200→Ti). C. TC mode operating instructions: When the temperature setting is at 100°C, keep pressing down button, it will turn to be 600℉.
- Page 5 a. The product automatically recommends the output wattage according to the resistance of the atomizer when it detects that a new atomizer has been attached. E. Key Combination instruction: a. Press up and down buttons at the same time for 1.5s to enter the function Menu interface.
- Page 6 and the display will return to the main display interface. a. Under Power Mode the Function Menu interface has the following options: Regular Mode , Custom Mode Locked Mode , Series Number Software Version ( 5 options in total). b. Menu under TC mode: Regular Mode , Custom Mode , Coil...
- Page 7 While it is valid to operate the combination key and to turn on/off the device. G. Custom Mode: Press up and down buttons at the same time for 1.5s to enter the function menu interface→Press up or down button to select the customization menu→Press the fire button to confirm and the display will change to the Custom Mode...
- Page 8 menu (Under power mode, the upper right corner will show the adjustment power value. Under TC custom mode, the upper right corner shows the adjustment temperature control value.) Press up or down button to make adjustment→Press the fire button and move to the next increment→When you finish the curve adjustment, press and hold the fire button for 1.5s to confirm and...
- Page 9 Press the fire button to recover display form sleep mode. I. Computer customization： You can do the following customization operations via the voopoo Firmware: Prompt page, Temperature coefficient, temperature curve, wattage curve, increase/increase coil type and device upgrade etc.
- Page 10 K. Adding, removing or changing temperature control coil types using the Voopoo Firmware. (Default: SS316,Ni200,TI) You can select 1 to 5 types. Coil coefficient setting and selecting Serial coil mark coefficient select Index Type Icon Coefficient Select SS316 1300 Ni200...
- Page 11 CHECK BATTERY ATOMIZER SHORT CHECK ATOMIZER HIGH ATOMIZER TEMP HIGH LOCK UNLOCK M. Tips： a. Charging rate: 3H (Requirement: 5V 2A supply only). b. Accommodation coefficient of the TC wire: Ni: 6000~7000 Standard Default Value: 6500 Adjusting Rate: Short time press:1, long time press: 10 Ti: 3500~4500 Standard Default Value: 4000 Adjusting Rate: Short time press:1, long...
- Page 12 long time press: 10 Attention: 1) The higher coil coefficient you set, the higher coil temperature you get. 2) Because of the different material for the wire, you may feel the power is not strong enough when vaping, you can properly adjust the coil coefficient at a higher rate to get a better vape experience.
- Page 13 d. Please use the proper working mode for your atomizer’s design and material. e. If the device is not used for a long time, please let it be charged periodically to avoid discharging. f. Keep the contents of this package out of reach of children and animals.
- Page 14 h. Do not use if pregnant or breast feeding. i. Do not use if you have an unstable heart condition, severe hypertension or diabetes. j. This product contains nicotine which is a highly addictive substance. 1) EEE Recycling: This product should not be treated as household waste, instead it should be handed over to the applicable collection point for the recycling of electrical and...
- Page 15 Manufacture: Shangliao Haosi Linpokeng Industrial Zone, Nanpu Rd, Shajing St, Bao'an District, Shenzhen, Guangdong, China. www.voopootech.com Facebook.com/voopootech Contact in EU: Vaping Legal Ltd Address: Armstrong House, First Avenue, Robin Hood Airport, Doncaster. DN9 3GA. United Kinged Email: compliance@tpdcompliance.eu...
- Page 16 Designed by Voopoo in California www.voopootech.com Made in China...
