Sunje SPE-100 Instruction Manual

Instruction Manual
SPE-100
It is recommended that only persons who have sufficient knowledge and experience such as system
designers and responsible persons deal with this product after carefully reading the product manual.
The matters of safety
1
* If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.
* It may fail to function properly if someone drops or any misuse of the product.
* Please connect to Ground for precise measurement.
* 9V Battery only. (rectangular shaped battery)
Check the package contents
2
▶ Product compositions
The package includes the following products composition.
Static Voltage Sensor
SVS-PE-1-001
Body 1ea /
SPE-100 90cm(Standard)
1ea 400cm(Option)
Sensor Cap Ground Cable
SSC-PE-1-001 SGC-PE-2-001
1ea 1ea / 4.8m
01

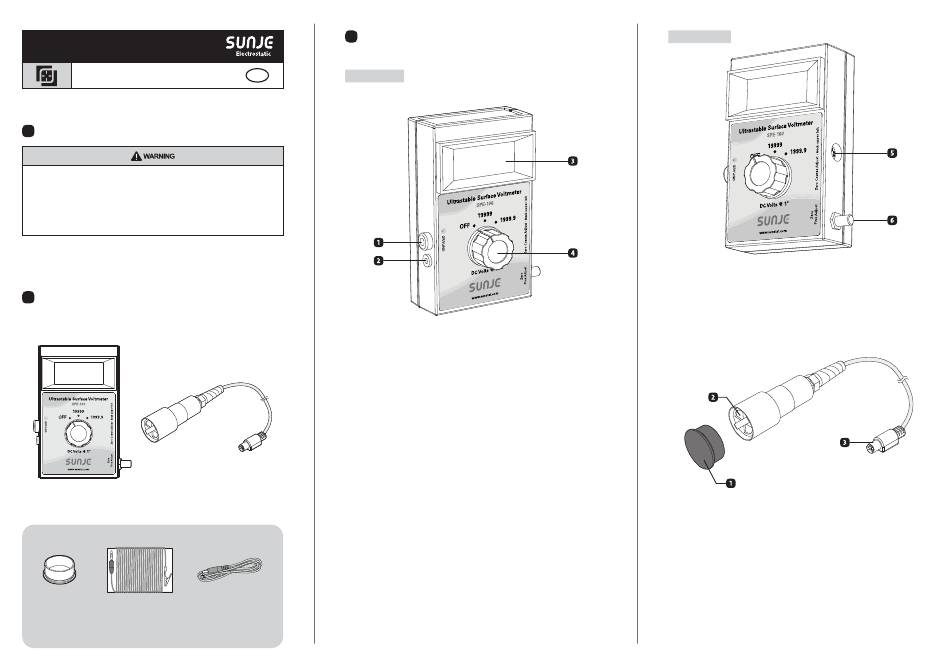

Nomenclatures of parts
3
▶ Measurement equipment body
Front / Left side
Eng
1. Ground
This is an earth connecting socket. You must connect it before you measure.
2. Output Connector
Please connect Output Cable provided with the product to send output signal outside.
(output range ±19.999[kV], reduction ratio 1:1000)
3. Electrostatic indicating LCD
This is measured static voltage display LCD. Measurement range is ±19.999[kV].
4. Mode Select Knob
Knob can be set up in three steps.
First step(OFF Mode) : Turn off.
Second step(19999 Mode) : It can measure in range of ±19999[V] in 1V unit.
Third step(1999.9 Mode) : It can measure in range of ±1999.9[V] in 0.1V unit.
Output Cable
SOC-PE-1-001
1ea / 1.8m
02
Front / Right side
5. Sensor Connector
This connector is to connect static voltage sensor.
6. 0V adjustment knob
This knob is for adjustment to 0V when first using it. Please adjust it by turning left and right.
(possible range: ±15V)
▶ Static Voltage Sensor
1. Sensor Cap
The sensor cap is for adjust offset. Please cap securely in place over the end of the probe.
Please remove Sensor Cap before measure.
2. Static Voltage Sensor
This is static voltage of charged object measuring sensor.
Please keep this sensor away from any particles.
3. Sensor Connector
Please connect to sensor connector of main body. The length of sensor cable is 90cm(standard).
Optional 400cm length or extension cable is available for user's measuring circumstance.
※ Sensor Cable Length
- Standard Cable : 90cm
- Extension Cable(Option) : 400cm
03
