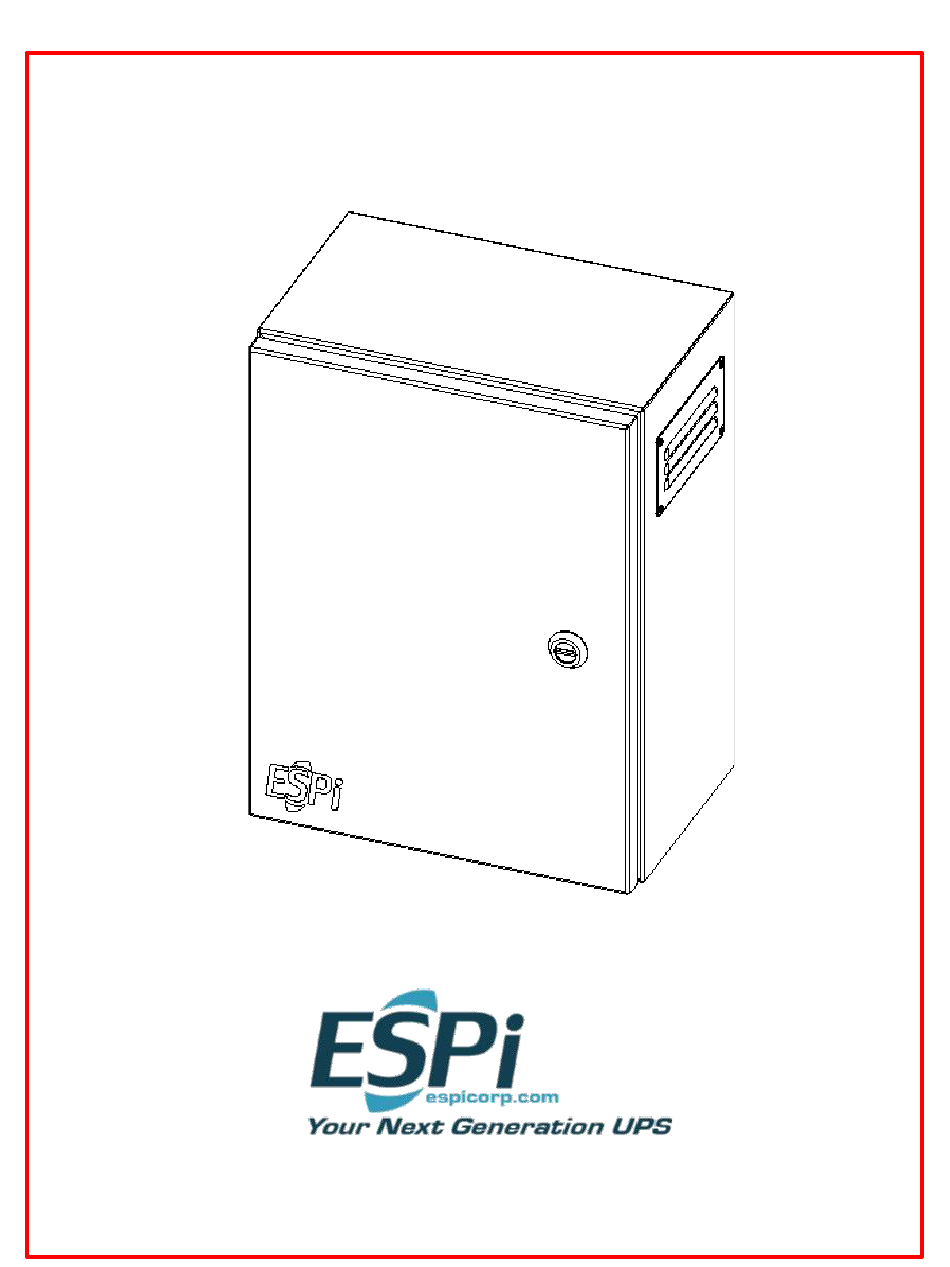

- Page 1 Technical FX PoE UPS Specifications FX PoE UPS ™ Publication Issue A...
- Page 2 Quick Guide The FX PoE was designed and intended to be used as a UPS for Fixed Wireless remote nodes. The FX PoE incorporates an internal POE injector that is capable of providing 48V @ 2.25A The PoE pinout: Pins 1,2,4,5 are positive (=) Pins 3,6,7,8 are negative (-) Connections: Always make connections to output terminals and loads first.
-
Page 3: Inspecting Shipment
Thank you for purchasing the ESPi FX PoE UPS. We at ESPi are very proud of the quality products we innovate and manufacture. We look forward to serving you as our customer. Please review all sections of this document before the usage of the ESPI... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS • USE COMMON SENSE! • Only qualified personnel should service this equipment • The battery contains hazardous currents and may present a burn hazard if damaged, shorted, or installed improperly. • The following precautions should be followed to ensure your safety o Remove watches, rings, or other metallic objects. - Page 5 FEATURES STANDARD • Supports 48V PoE up to 130W • 10/100/1000Mb Data Speeds • 55Ah GS Battery PYL55TT • Push and hold reset button • 14’ AC Power cord • Replaceable battery fuse • Powder Coated Steel enclosure • Single point latch •...
- Page 6 Figure B – Front View of Cabinet w/ Door Open Image is for reference only Figure C – UPS Faceplate...
- Page 7 Product Operation Reset Button The reset button is designed to temporarily remove power to the end device. To activate the reset button, press and hold for 5 seconds to temporarily remove both 48v PoE and 12V power to the output. Power will automatically be restored after release of the button.
-
Page 8: Product Specifications
PRODUCT SPECIFICATIONS Approximate cabinet outer physical dimensions: Height – 15.75" (400 mm) Width – 12.05" (306.1 mm) Depth – 7.87" (200 mm) -
Page 9: Ground Wire
CABINET GROUNDING INFORMATION Bonding and grounding should be done in accordance with the operating telephone company’s standard procedures and comply with local electrical codes. GROUND WIRE The ground wire protects the electronics from voltage surges. A ground wire must be properly grounded to provide lightning surge protection for the cabinet. - Page 10 GROUNDING DIAGRAM AND PROCEDURE Figure G – Grounding Diagram...
- Page 11 1. Drive the ground rods into the ground near the cabinet location. 2. Use a Megger-type ohmmeter to measure the resistance between cabinet ground and the ground rods. The resistance must be 25 ohms or less. 3. If the ohm requirement in step 2 is met proceed to step 4. Otherwise, follow local practices to lower the resistance to ground to comply with step 3 before proceeding to step 4.
-
Page 12: Technical Support
APPENDIX A TECHNICAL SUPPORT Technical assistance is available 8 AM to 5 PM Central Time. Contact ESPI at: Telephone 877-799-3774 (toll free) ORDERING PROCEDURE You may place orders by telephone or email: Telephone: 877-799-3774 (Toll Free) Email: sales@espicorp.com Mail: ESPI... - Page 13 RETURN FOR REPAIR POLICY AND PROCEDURE CORPORATE POLICY ESPI warrants this product to be free of defects and to be fully functional for a warranty period beginning from the date of original shipment, given correct customer installation and regular maintenance. ESPI will repair or replace any unit without cost during its warranty period if the unit is found to be defective for any other reason other than abuse or incorrect use or incorrect installation.
- Page 14 ALL QUOTATIONS AND SALES ARE SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS AS WELL AS THOSE CONTAINED ON THE ORIGINAL QUOTATION. Warranty: ESPi LLC is very proud of the product we have created. Should you need support please call 877-799-3774 or visit our website at espicorp.com.
