Summary of Contents for Espi Mega Titan-48 UPS

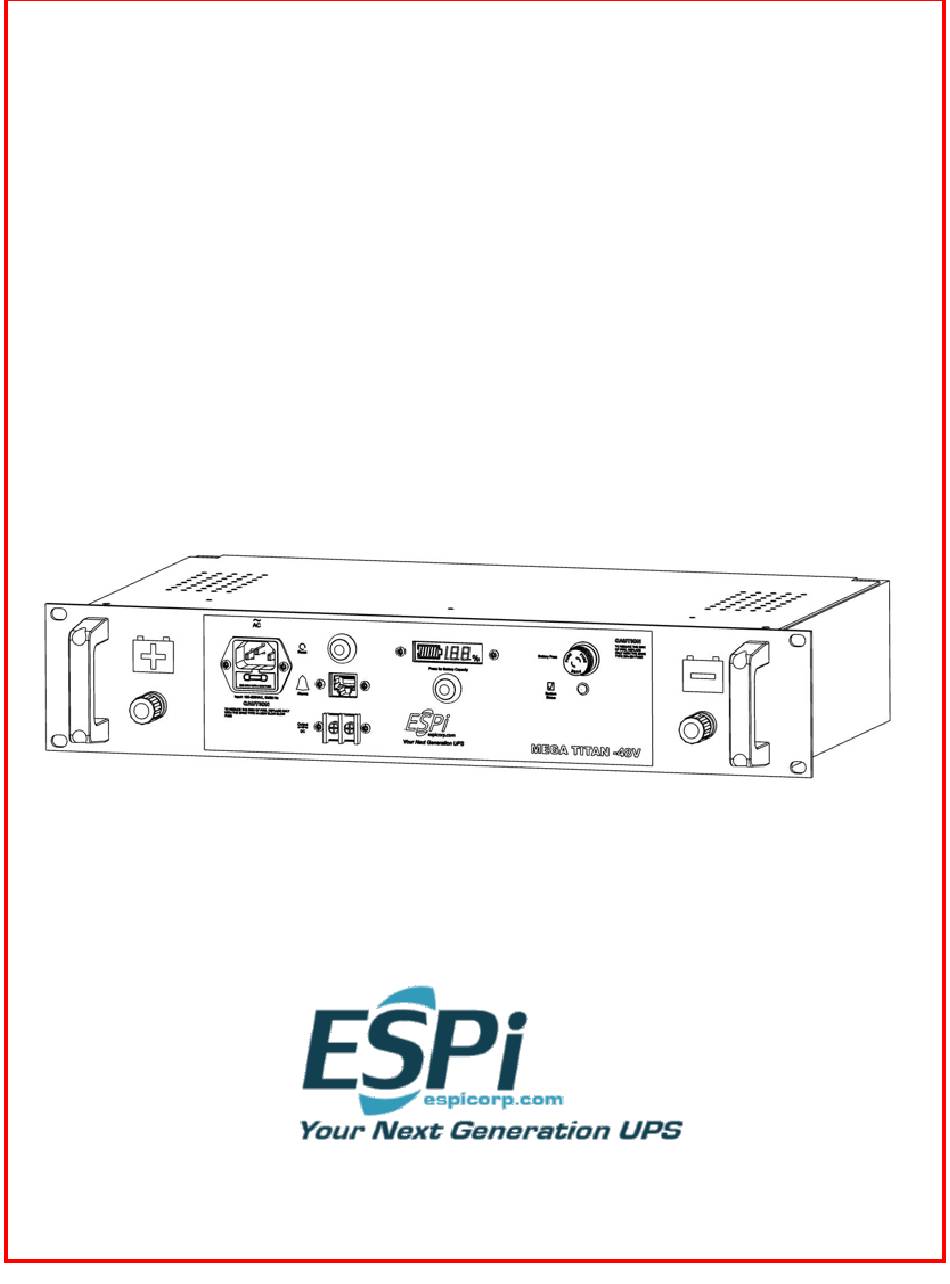

- Page 1 Mega Titan -48 UPS Technical Specifications Rack Mount -48V UPS Mega Titan -48 UPS ™ Publication Issue A...
-
Page 3: Table Of Contents
TABLE OF CONTENTS RELEASES TO THIS TECHNICAL DOCUMENTATION ..........3 PUBLICATION ........................ 4 USING THIS TECHNICAL PRACTICE ................4 INSPECTING SHIPMENT ....................4 PRODUCT OVERVIEW ....................5 SAFTEY………………………………………………………………………………………….6 FEATURES ........................7 INSTALLATION PROCEDURE ……………………………………………………………….8 ALARM CONNECTORS……………………………………………………………………….9 PRODUCT INFORMATION ………………………………………………………………….10 APPENDIX A ………………………………………………………………………………….11 APPENDIX B ………………………………………………………………………………….12 APPENDIX C ………………………………………………………………………………….13... -
Page 4: Releases To This Technical Documentation
ESPi MegaTitan 48V UPS RELEASES TO THIS TECHNICAL DOCUMENTATION Thank you for purchasing the ESPi Mega Titan RM -48V UPS. We at ESPi are very proud of the quality products we innovate and manufacture. We look forward to serving you as our customer. -
Page 5: Publication
USING THIS TECHNICAL PRACTICE Before using this document, please review the statements below. 1. The differences in models of the Mega Titan family of ESPi products are defined by the attributes within the model number. Definitions of the attributes are described below. -
Page 6: Product Overview
ESPi MegaTitan 48V UPS PRODUCT OVERVIEW The Mega Titan RM is a -48V UPS designed for powering MDU ONT’s and other equipment rated up to 150W. The unit contains a lead acid battery and care should be given to prevent housing a UPS system with battery back-up. -
Page 7: Safety Precautions
ESPi MegaTitan 48V UPS SAFETY PRECAUTIONS • USE COMMON SENSE! • Only qualified personnel should service this equipment • The battery contains hazardous currents and may present a burn hazard if damaged, shorted, or installed improperly. • The following precautions should be followed to insure your safety o Remove watches, rings, or other metallic objects. -
Page 8: Features
ESPi MegaTitan 48V UPS FEATURES STANDARD • Supports -48V up to 150W • Battery alarms for Low Battery, Battery Missing, Replace Battery, and On Battery • 80Ah GS Battery PYL80TT • Push and hold reset button • 14’ AC Power cord •... -
Page 9: Installation Procedure
UPS. The loop includes the positive and negative cables combined. The Rack Mount unit comes from ESPi with 6' of 10 AWG Positive battery cable and 6' of 10 AWG Negative battery cable. We highly recommend that you don't shorten the lengths of these cables. -
Page 10: Alarm Connectors
ESPi MegaTitan 48V UPS Alarm connectors The alarm connections are placed on an RJ-45 cable for easy termination. Refer to figure H below for the pinout PIN1 – (White/Green) On Battery Alarm (battery is providing the power) PIN2 – (Green) Ground for On Battery Alarm PIN3 –... -
Page 11: Product Operation
Replace Battery – This alarm signifies the battery is at the end of its useful life and should be replaced. Replace battery with part number PYL-12V-80TT manufactured from GS Battery. Contact ESPi sales for a replacement at 877-799-3774. Reset Button The reset button is designed to temporarily remove power to the end device. -
Page 12: Technical Support
ESPi MegaTitan 48V UPS APPENDIX A TECHNICAL SUPPORT Technical assistance is available 8 AM to 5 PM Central Time. Contact ESPi at: Telephone 877-799-3774 (toll free) ORDERING PROCEDURE You may place orders by telephone or email: Telephone: 877-799-3774 (Toll Free) Email: sales@espicorp.com... -
Page 13: Rma Procedure
RETURN FOR REPAIR POLICY AND PROCEDURE CORPORATE POLICY ESPi warrants this product to be free of defects and to be fully functional for a warranty period beginning from the date of original shipment, given correct customer installation and regular maintenance. ESPi will repair or replace any unit without cost during its warranty period if the unit is found to be defective for any other reason other than abuse or incorrect use or incorrect installation. - Page 14 ALL QUOTATIONS AND SALES ARE SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS AS WELL AS THOSE CONTAINED ON THE ORIGINAL QUOTATION. Warranty: ESPi LLC is very proud of the product we have created. Should you need support please call 877-799-3774 or visit our website at espicorp.com.
