DMP V-4061DB Installation Manual

V-4061DB VIDEO DOORBELL
Installation Guide

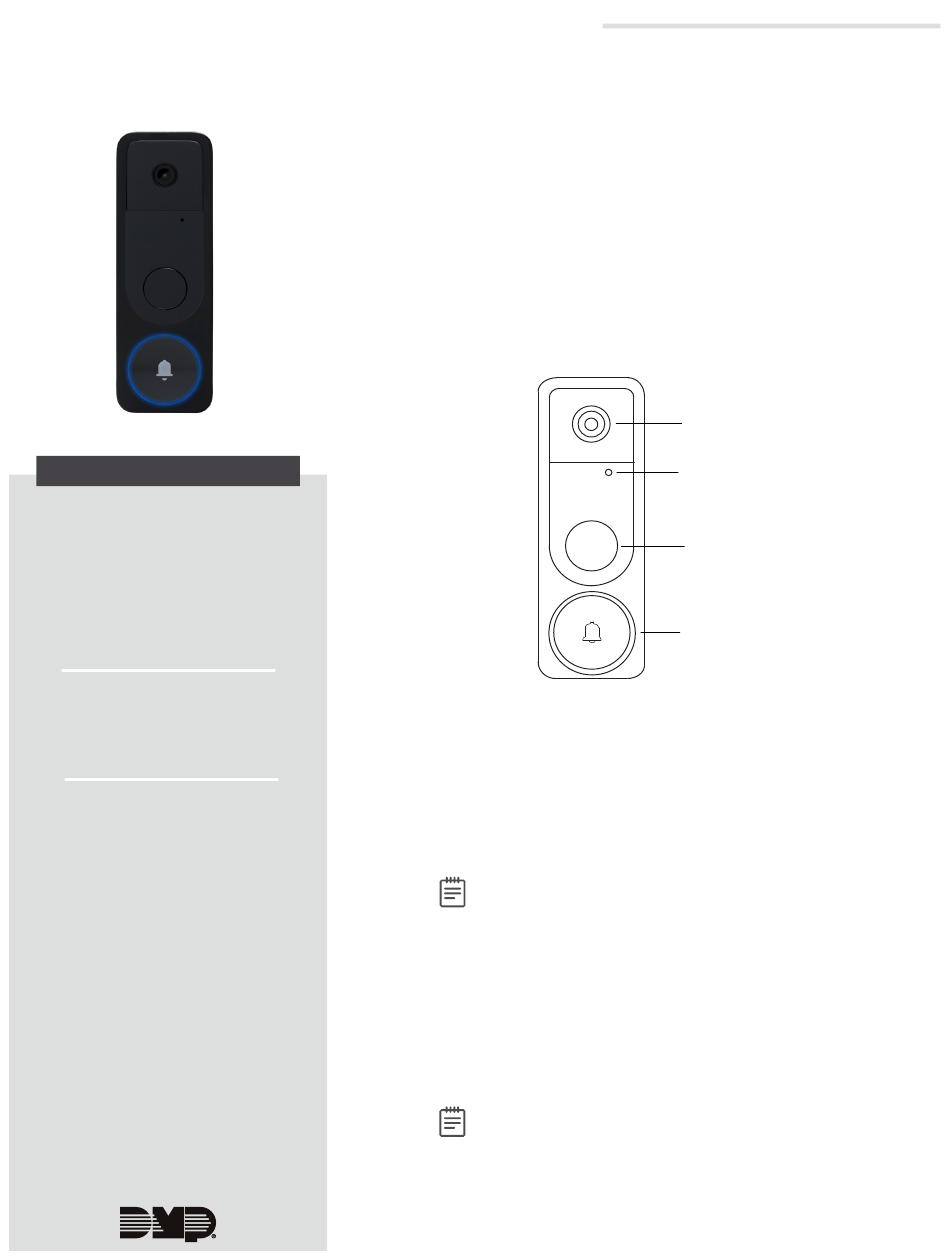

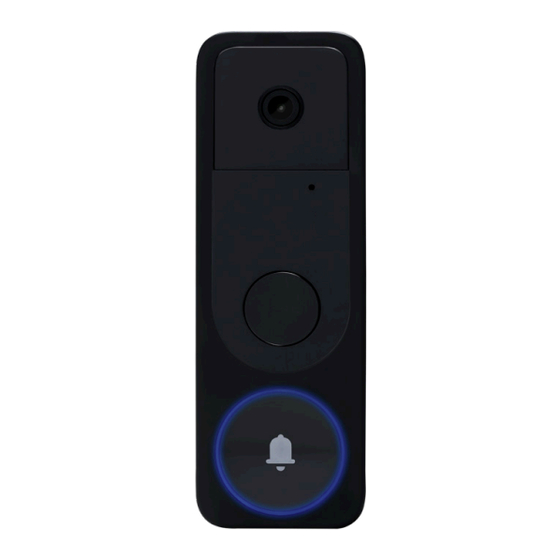

Figure 1: V-4061DB
DESCRIPTION
The V-4061DB is a Wi-Fi enabled
video doorbell capable of recording
and storing video clips that are
viewable on the Virtual Keypad
App.
The V-4061DB provides 16 GB of
storage on a pre-installed SD card
for local recording.
Compatibility
• Virtual Keypad™ App Version
6.36 for iOS and Android
devices
What is Included?
• V-4061DB Video Doorbell
• Pre-installed 16 GB SD card
• 4 different color faceplate
options
• Power Kit
• Fuse and Screw Pack
• Vertical, Horizontal, and Flat
Wedges
• Weather Gasket
• Reversible Screwdriver
• Phillips Head
• Security Screw Bit
1
PREPARING VIDEO DOORBELL FOR
INSTALLATION
1.
2.
TM
2
INSTALLING THE VIDEO DOORBELL
Replacing Existing Doorbell
1.
2.
3.
4.
5.
6.
The V-4061DB can be installed in place of a functional,
wired, 16-24VAC mechanical doorbell system, or with a 16-
24V wired transformer.
Once you have confirmed that the existing doorbell works,
shut off doorbell's power at the breaker.
Figure 2: Video Doorbell
Layout
Remove the existing doorbell from the wall, leaving the
existing wiring exposed.
Remove the security screws securing the faceplate to the
doorbell, then carefully remove the faceplate.
Note: The included screwdriver has a reversible head. The
star bit is used to remove the security screws from the
doorbell faceplate, and the Phillips-head bit is used for
installing the screws on the back of the doorbell.
Hold the doorbell flat against the wall where the old
doorbell was and mark the screw hole locations.
Drill the holes using the marks you made as a guide.
In the screw hardware pack, locate the screw used to
tighten down the wires and loosely attach these screws to
the back of the doorbell. It does not matter which wire is
connected to which screw.
Note: If you are using a 16-24V plug-in transformer to power
the doorbell, be sure to attach the included fuse to either
wire during installation. The fuse is not needed if the
doorbell is being connected to a standard 16-24V
mechanical doorbell chime.
Use the included screws to secure the doorbell to the wall.
Lens
Microphone
PIR Motion Detector
Ring Button
