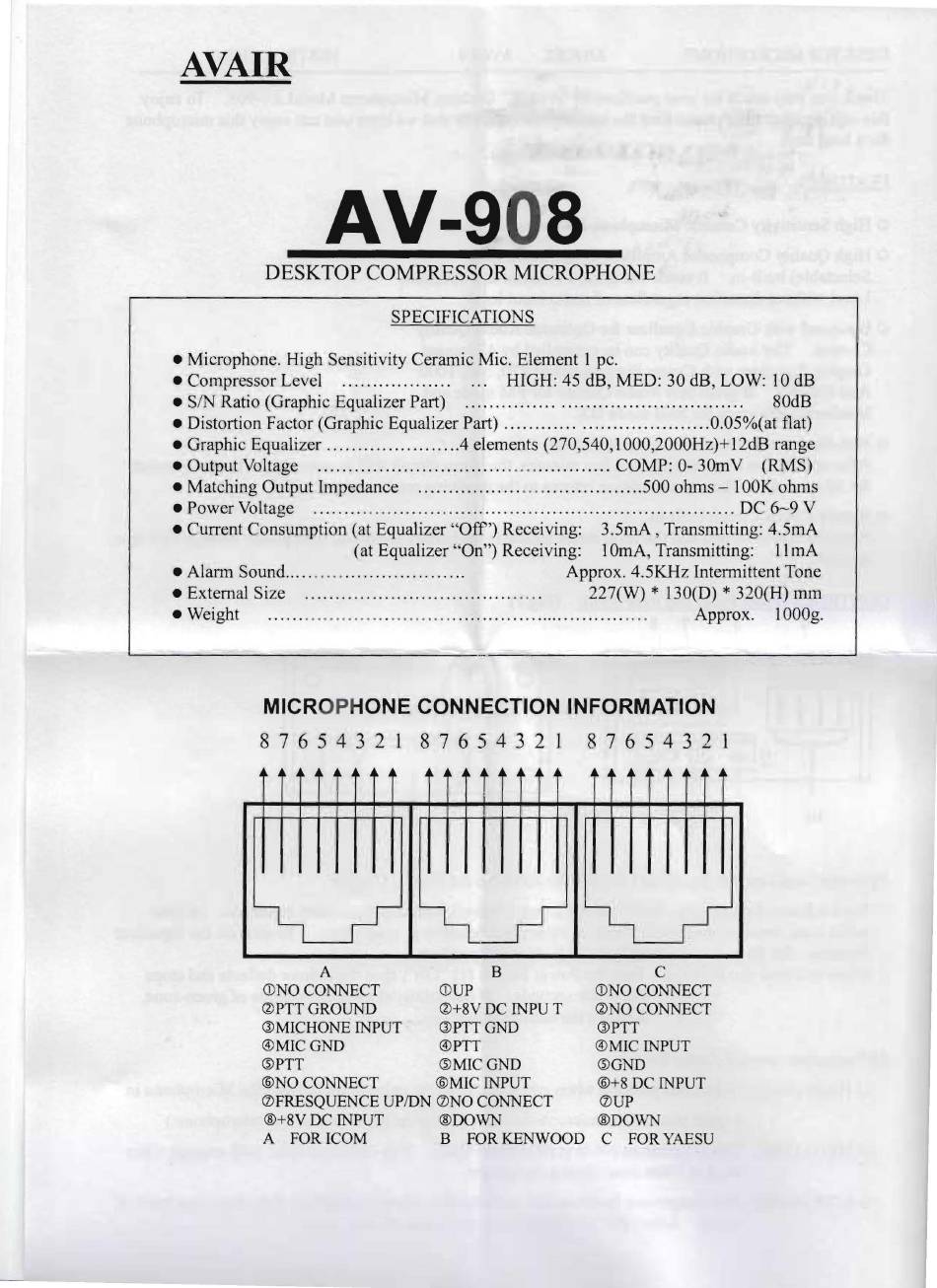

AVAIR AV-908 Instructions

AVAIR
AV-908
DESKTOP COMPRESSOR MICROPHONE
SPECIFICATIONS
• Mierophone. High Sensitivity Ceramie Mic. Element 1 pe.
• Compressor Level .. .. . .. .... ....... HIGH: 45 dB, MEO: 30 dB, LOW: 10 dB
• S/N Ratio (Graphie Equalizer Part) ... ............. . ........... .. ....... .. ..... . 80dB
• Distortion Faetor (Graphie Equalizer Part) ... . ....................... . .. . .. 0.05%(at f1at)
• Graphie Equalizer ..................... .4 elements (270,540, I 000,2000Hz)+ I2dB range
• Output Voltage ..... ............. . ............ ..... ..... .. ..... COMP: 0- 30mV (RMS)
• Matehing Output Impedanee ................. .... ............. . .. 500 ohms - lOOK ohms
• Power Voltage ......... .... ................... ............ ........... .. .. .. ... .. .. . OC
6~9
V
• Current Consumption (at Equalizer "Off') Receiving: 3.5mA , Transmitting: 4.5mA
(at Equalizer " On") Reeeiving: IOmA, Transmitting: 11 mA
• Alann Sound... ....... ... ........ . .. ...... Approx. 4.5KHz Intennittent Tone
• External Size .. ............... ........ .... ..... .... . 227(W)
*
130(D)
*
320(H) mm
• Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . . . . . . . . . . Approx. IOOOg.
MICROPHONE CONNECTION INFORMATION
8 7 6 5 432 1 8 765 432 1
8 7 6 5 4 3 2 1
,
•
~
.
~
I
•
~
t ·
~
.
I
I
I
,
~
,
,
~
.
-
I
I
A B
(DNO CONNECT (DUP
C?:lPTT GROUNO C?:l+8V OC INPU T
(IlMICHONE INPUT (IlPTT GNO
@)MICGNO @)PTT
~PTT ~MIC
GNO
®NO CONNECT ®MIC INPUT
CDFRESQUENCE UPION CDNO CONNECT
@+8V OC INPUT @DOWN
A FOR ICOM B FOR KENWOOO
C
(DNO CONNECT
C?:lNO CONNECT
(IlPTT
@)MIC INPUT
~GND
®+8 OC INPUT
CDUP
@DOWN
C FOR YAESU
