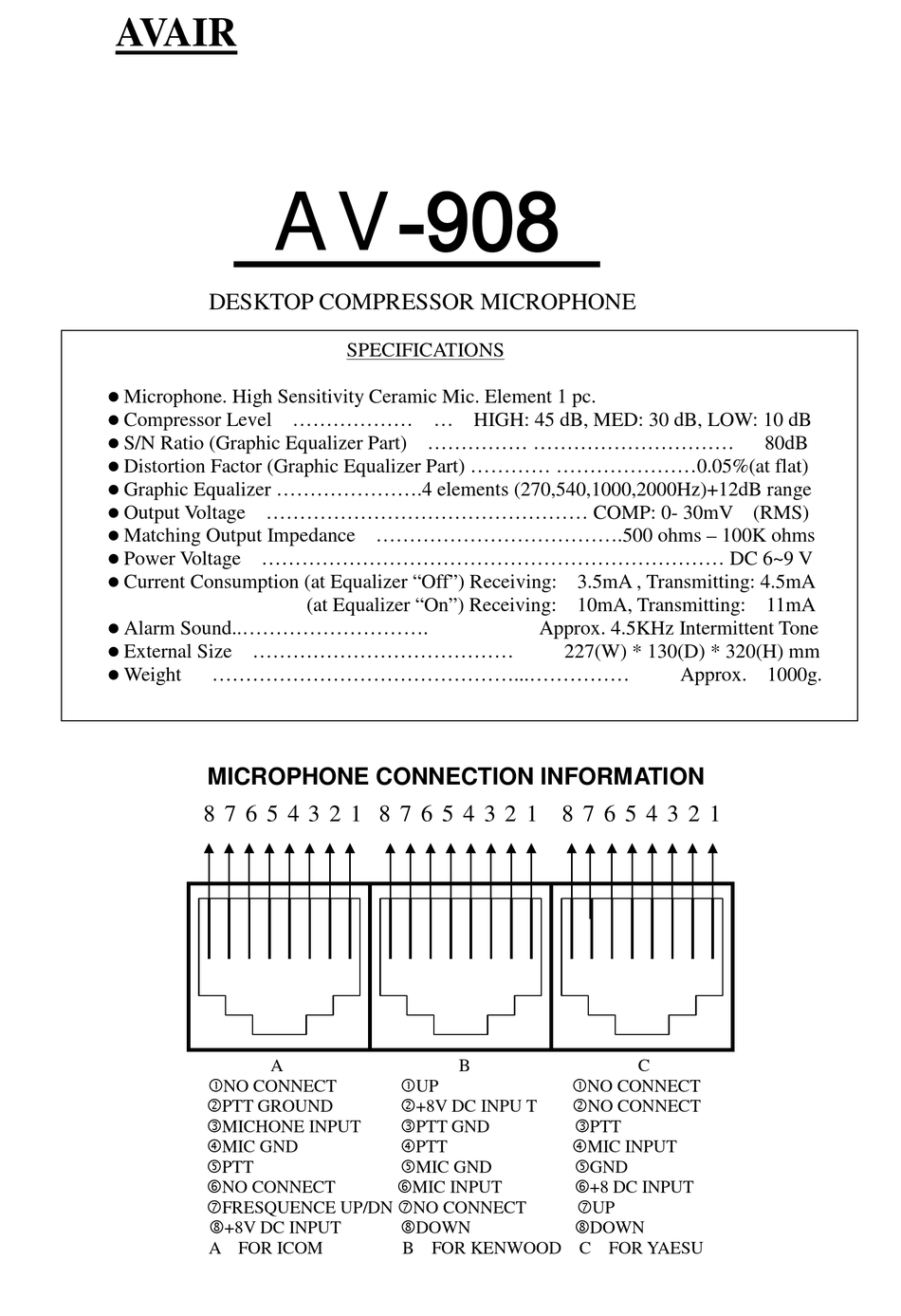

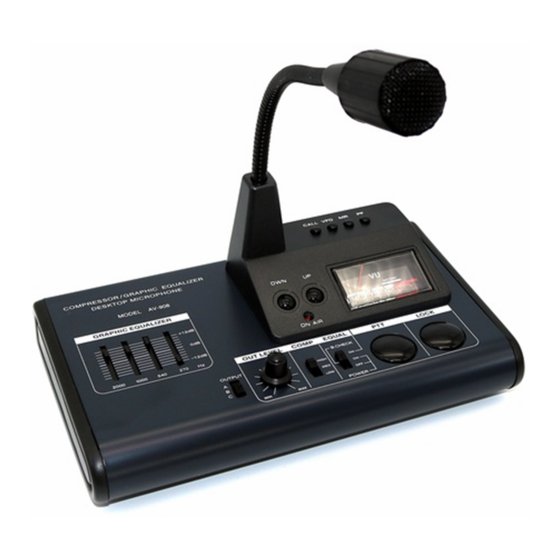

AVAIR
AV-908
DESKTOP COMPRESSOR MICROPHONE
Microphone. High Sensitivity Ceramic Mic. Element 1 pc.
Compressor Level .................. ... HIGH: 45 dB, MED: 30 dB, LOW: 10 dB
S/N Ratio (Graphic Equalizer Part) ............... ..............................
Distortion Factor (Graphic Equalizer Part) ............ .....................0.05%(at flat)
Graphic Equalizer ......................4 elements (270,540,1000,2000Hz)+12dB range
Output Voltage ................................................ COMP: 0- 30mV (RMS)
Matching Output Impedance .....................................500 ohms – 100K ohms
Power Voltage ..................................................................... DC 6~9 V
Current Consumption (at Equalizer "Off") Receiving: 3.5mA , Transmitting: 4.5mA
Alarm Sound..............................
External Size .......................................
Weight
...............................................................

MICROPHONE CONNECTION INFORMATION

8 7 6 5 4 3 2 1..8 7 6 5 4 3 2
A
NO CONNECT
PTT GROUND
MICHONE INPUT
MIC GND
PTT
NO CONNECT
FRESQUENCE UP/DN NO CONNECT
+8V DC INPUT
A FOR ICOM

SPECIFICATIONS

(at Equalizer "On") Receiving: 10mA, Transmitting: 11mA
B
UP
+8V DC INPU T
PTT GND
PTT
MIC GND
MIC INPUT
DOWN
B FOR KENWOOD C FOR YAESU
Approx. 4.5KHz Intermittent Tone
227(W) * 130(D) * 320(H) mm
Approx. 1000g.
1.
.8 7 6 5 4 3 2 1
C
NO CONNECT
NO CONNECT
PTT
MIC INPUT
GND
+8 DC INPUT
UP
DOWN
80dB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-908 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVAIR AV-908

  • Page 1 AVAIR AV-908 DESKTOP COMPRESSOR MICROPHONE SPECIFICATIONS  Microphone. High Sensitivity Ceramic Mic. Element 1 pc.  Compressor Level ……………… … HIGH: 45 dB, MED: 30 dB, LOW: 10 dB  S/N Ratio (Graphic Equalizer Part) …………… ………………………… 80dB  Distortion Factor (Graphic Equalizer Part) ………… …………………0.05%(at flat) ...
  • Page 2 DESKTOP MICROPHONE MODEL AV-908 INSTRUCTIONS Thank you very much for your purchase of “AVAIR” Desktop Microphone Model AV-908. To enjoy this unit satisfactorily, please read the instructions carefully and we hope you can enjoy this microphone for a long time. FEATURES: ...
  • Page 3 “ON”. 9) Mic. Output Connector: Connect with suitable conversion cable optionally available to transceiver. (8P AVAIR type) (The conversion cables are provided with a directional condition for connecting. Please connect with microphone correctly.) Terminals of Microphone output Connector (9) and “AVAIR”...
  • Page 4 CAUTIONS: * Please be sure to use “AVAIR” conversion cables optionally available. Please refer to the table of Microphone Cables. * Even when you use the “D” type microphone cables, you cannot supply the power from transceiver.
