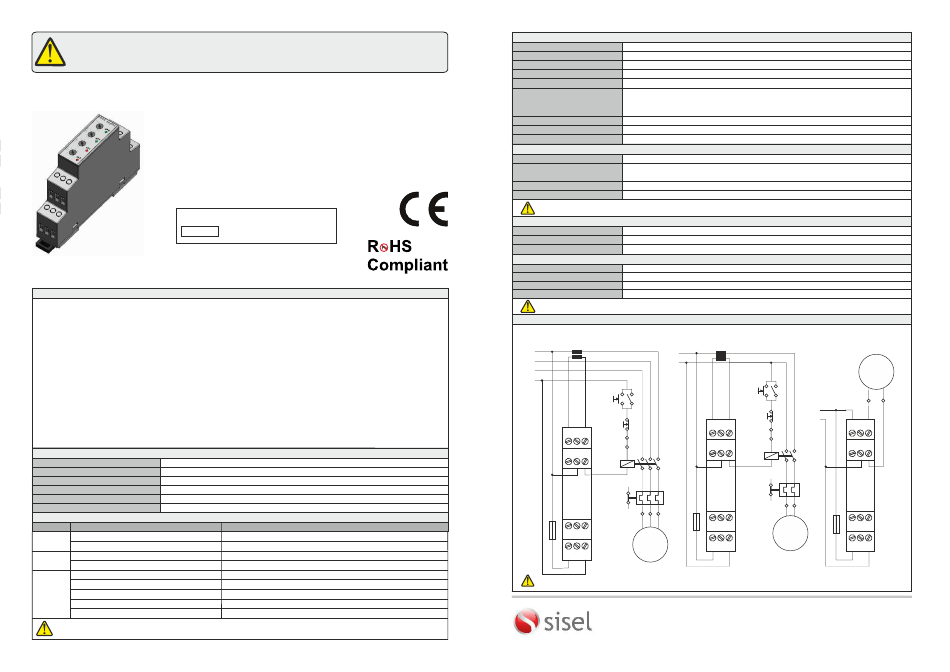

ENDA EPCR02 Manual

Read this document carefully before using this device. The guarantee will be expired by device demages
if you don't attend to the directions in user manual. Also we don't accept any compensations for personal
injury, material damage or capital disadvantages.
ENDA EPCR02 CURRENT PROTECTION RELAY
Thank you for choosing ENDA EPCR02 Rail mounted current protection relays.
*
Low-current protection
*
Current set value can be adjusted
*
Start, error condition time can be adjusted
*
Contact output for system control (OUT)
*
Rail monted, screw-terminal connection
*
CE marked according to European Norms
EPCR02 - Current Protection Relay
Technical Specifications
OPERATING
ENDA Current protection relays are designed for in order to protecting the atached systems from overcurrent or low-current loads.
Before device is turned on, timing, set and mode values must be set.
1- Overcurrent Protection :
For this mode potentiometer must be on UpL position.
When device is powered, output relay status will be ON. During the first operation, system will loaded
overcurrent at momentary. For this reason, in order to avoid the device from entering the error mode,
start delay time activated. At the end of this period, if the measured current greater than adjusted set
value, error condition activated. During this time, current value does not below the set value, output
relay status will be OFF. Device restarts after 5 sec delay time but the start button must be pressed for
running the system.
2- Low-current Protection :
For this mode potentiometer must be on LoL position.
When device is powered, output relay status will be ON. During the first operation, in order to avoid the
device from entering the error mode, start delay time activated. At the end of this period, if the measured
current lower than adjusted set value, error condition activated. During this time, current value does not
upper the set value, output relay status will be OFF. Device restarts after 5 sec delay time but the start
button must be pressed for running the system
CONTROL
Start delay time (t ) 1, 2, 6, 8, 10 sec, can be selected on device.
s
Error delay time (t ) e 0.5, 1, 2, 3, 4, 5 sec, can be selected on device.
Current set value (A) 0.5, 1, 2, 3, 4, 5 A AC can be selected on device.
Overcurrent protection Mode potentiometer must be on UpL position.
Low-current protection Mode potentiometer must be on LoL position.
Current frequency range 45-65 Hz.
ALARM CONDITIONS
LEDx LED Status
ON
PWR
OFF
ON
OUT
OFF
AL1 OFF, AL2 OFF
AL1/AL2
AL1 ON, AL2 OFF
AL1 OFF, AL2 ON
AL1 and AL2 Blinking slowly
AL1 and AL2 Fast blink
While the Relay LED in ON state and If, the AL1 and/or AL2 alarm LEDs are in ON state, delay time is active.
When delay time is over, out Relay and LED state turns off.
ORDER CODE
Description
Device running
Device not running
Relay activated
Relay deactivated
System running normaly (No faulty condition)
Low current
Overcurrent
Start delay time activated
Repeated start delay time (5 seconds) activated
ELECTRICAL CHARACTERISTICS
Supply voltage
Operating frequency
Power consumption
Connection
Reset time
Accuracy
EMC
Safety requirements
Insulation test voltage
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
OUTPUTS
Control output (OUT)
Life expectancy for relay
Control output state
CONTROL
Mounting
Dimensions
Weight
Enclosure material
While cleaning the device,solvents (thinner,benzine,acid etc.) or corrosive materials must not be used.
CONNECTION DIAGRAM
*
L1
L2
L3
N
Start
Stop
.
k l
T1
NC C NO
F
U1 U2
F : 100 mA / 350V AC. Fuse must be connected.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
1 / 2
125-410V AC +%10 -%10
45-65 Hz
Max. 10VA.
Screw-terminal connection.
Max. 0.01 seconds.
Depending on the effect of voltage : Max. %1
Measurement error : Max. %5
Depending on the effect of temperature : Max %1
EN 61326-1: 2012
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
3kV AC min. 1 minute, 4,2kV DC min. 1 minute.
0 ... +50°C/-25 ... +70°C (With no condensation and icing).
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative
humidity at 40°C. (With no condensation and icing).
IP20, According to EN 60529
Max. 2000m
Relay: 250V AC, 10A (for resistive load), NO+NC
Without load 10.000.000 operation; 250V AC, 10A resistive load 50.000 operation.
Out LED control output (OUT) lights up when device is powered.
Rail mounted (EN 60715, Th35)
W18xH84xD62mm
Approx. 90g (after packaging)
Self extinguishing plastics.
* Current transformer must be used.
*
L
N
Start
C
C
Stop
k l
T1
NC C NO
T1
T1
F
M1~
M3~
U1 U2
Fax : +90 216 365 74 01
M1~
L
N
k l
NC C NO
F
U1 U2
ENDA TM
EPCR02-E-03-190917
