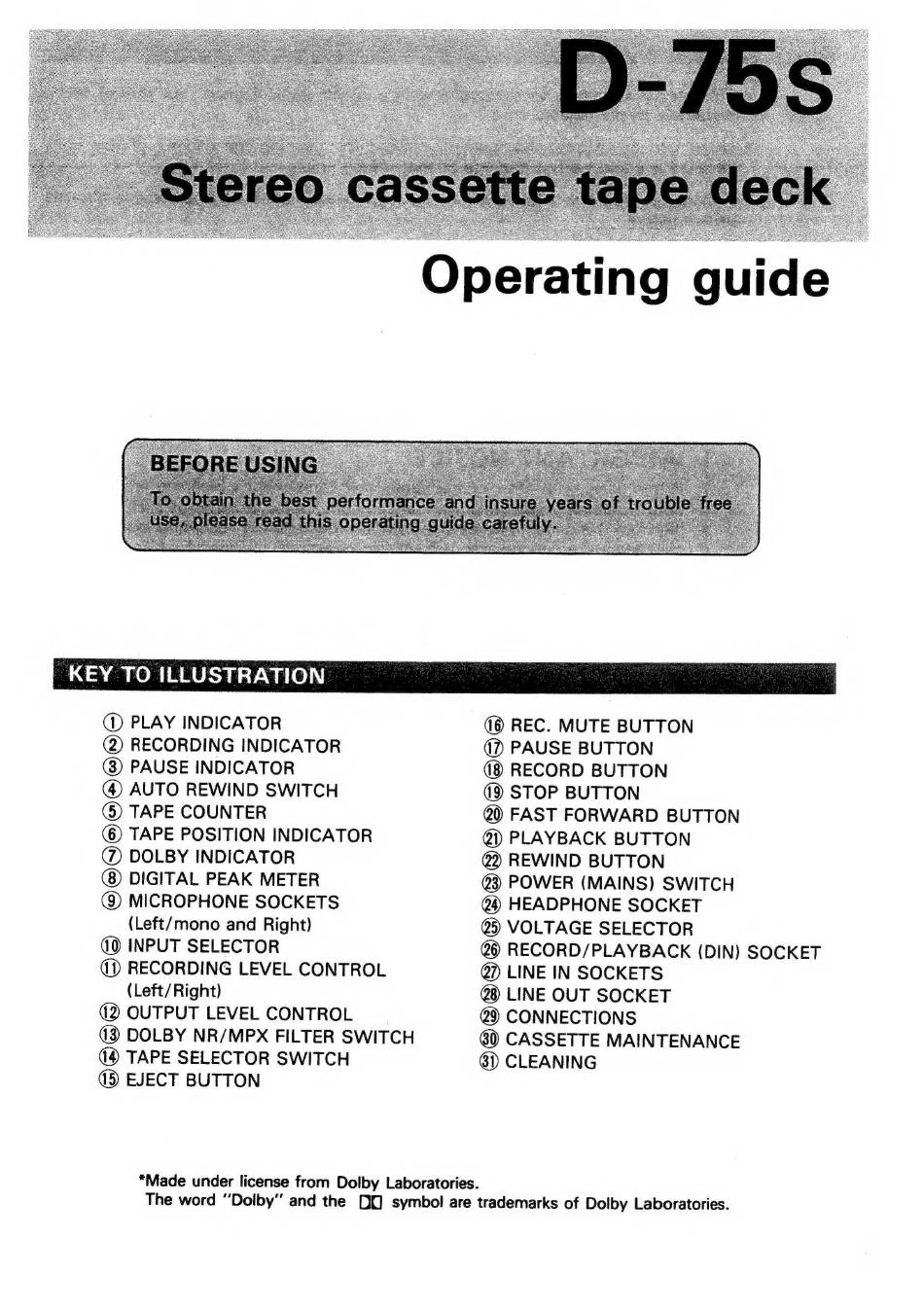

Hitachi D-75S Operating Manual

(D PLAY INDICATOR
(2) RECORDING INDICATOR
(3) PAUSE INDICATOR
@) AUTO REWIND SWITCH
() TAPE COUNTER
@) TAPE POSITION INDICATOR
@ DOLBY INDICATOR
DIGITAL PEAK METER
@) MICROPHONE SOCKETS
(Left/mono and Right)
INPUT SELECTOR
(1) RECORDING LEVEL CONTROL
(Left/Right)
(2 OUTPUT LEVEL CONTROL
(3 DOLBY NR/MPX FILTER SWITCH
TAPE SELECTOR SWITCH
(5) EJECT BUTTON
REC. MUTE BUTTON
(7) PAUSE BUTTON
(8) RECORD BUTTON
STOP BUTTON
@) FAST FORWARD BUTTON
Q@) PLAYBACK BUTTON
@ REWIND BUTTON
@3) POWER (MAINS) SWITCH
@4) HEADPHONE SOCKET
@) VOLTAGE SELECTOR
@8) LINE OUT SOCKET
@9) CONNECTIONS
60) CASSETTE MAINTENANCE
61) CLEANING
*Made under license from Dolby Laboratories.
The word "Dolby" and the
OO symbol are trademarks of Dolby Laboratories.
