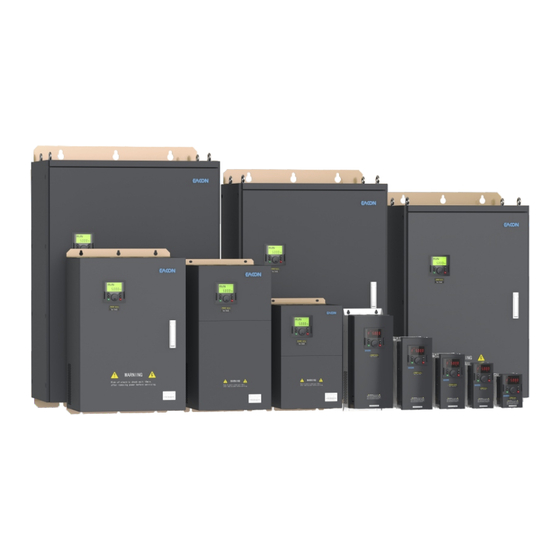

EACON EC630 Series Quick Manual
  1. Manuals
  2. Brands
  3. EACON Manuals
  4. Controller
  5. EC630 Series
  6. Quick manual

EACON EC630 Series Quick Manual

Ac drive
Hide thumbs

Advertisement

Quick Links

Download this manual
Professional AC Drive Manufacturer
Edition：Version 1.0 in 2022
Copyright, subject to change without notice.
ZHEJIANG EACN ELECTRONIC TECHNOLOGY CO.,LTD
Address:No.1 Jinhe Road, Qinshan Street, Haiyan County, Jiaxing City, Zhejiang Province
Service line: 86-400-166-0573
Website: www.eacn.cn
E-mail: overseas@eacon.cc
Professional AC Drive Manufacturer
EC630
Series AC Drive
Quick Guide
V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EC630 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EACON EC630 Series

Summary of Contents for EACON EC630 Series

  • Page 1 Edition：Version 1.0 in 2022 Copyright, subject to change without notice. EC630 Series AC Drive Quick Guide V1.0 ZHEJIANG EACN ELECTRONIC TECHNOLOGY CO.,LTD Address:No.1 Jinhe Road, Qinshan Street, Haiyan County, Jiaxing City, Zhejiang Province Service line: 86-400-166-0573 Website: www.eacn.cn E-mail: overseas@eacon.cc...

  • Page 2: Table Of Contents

    C a t a l o g u e C a t a l o g u e EC630 EC630 TABLE OF CONTENTS 4 Operation and Display 1 Preface 4.1 Operation Panel 2 Description of AC drive 4.2 View alarm records 2.1 Description of the label of AC drive 4.3 Display alphabet 2.2 Description of model...

  • Page 3: Preface

    You can contact us with any product questions through the following ways. A.1.2 Networking mode A.2 Protocol Format A.3 Protocol function code A.4 Register address definition E-mail EACON WeChat Official website A.4.1 Inverter parameters and register address translation rules overseas@eacon.cc www.eacon.cc Subscription A.4.2 Other register address descriptions...

  • Page 4: Description Of Ac Drive

    96.0 43 represents three-phase 400V 128.0 Capacity specification of AC drive 004D0G represents 4KW constant torque 165.0 185.0 Serial number: EC630 210.0 Abbreviation of “EACON” 250.0 307.0 380.0 2.3 Description of Serial number 450.0 00 4D0 G 63 3 480.0 Sequence number 520.0...

  • Page 5: Technical Specifications

    Precautions for Safe Use P r e c a u t i o n s f o r S a f e U s e EC630 EC630 2.5 Technical Specifications Item Specifications 1 channel digital output terminal, supporting up to 100 Item Specifications kHz high-speed pulse output, one relay output terminal...

  • Page 6: Mechanical And Electrical Installation

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.

  • Page 7: Installation Of Complete Machine

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.1.3 Installation of complete machine...

  • Page 8: Installation Of Operation Panel

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.2 Product peripheral devices...

  • Page 9: Selection Of Air Switch, Fuse And Contactor

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.2.2 Selection of brake components...

  • Page 10: Selection Of Input And Output Reactors

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.2.3 Selection of input and output reactors...

  • Page 11: Recommended Specifications For Main Circuit Terminal Screws And Wiring

    M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n M e c h a n i c a l a n d e l e c t r i c a l i n s t a l l a t i o n EC630 EC630 3.3.2 Recommended specifications for main circuit terminal screws and wiring...

  • Page 12: Standard Wiring Diagram

    Shielded twisted pair （ Close to AC drive ground terminal ） EC630 series frequency converters are tested according to the strict requirements of （Reverse RUN） IEC/EN61800-3 above, installed and used according to the guidance shown in this section, （Forward JOG）...

  • Page 13: Grounding Treatment

    3. For EC630 series frequency converters, the RFI filter board can be cut off to reduce monitoring interface is MPa under MP a ℃...

  • Page 14: Display Alphabet

    O p e r a t i o n a n d d i s p l a y O p e r a t i o n a n d d i s p l a y EC630 EC630 Description of Keys on the LED operation panel Function Programming...

  • Page 15: Function Code Table

    EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e 5.Function Code Table According to the motor nameplate setting, when the rated speed of the motor under Rated frequency of P1-11...
  • Page 16 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 17 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 18 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 19 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 20 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 21 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...
  • Page 22 EC630 F u n c t i o n C o d e T a b l e EC630 F u n c t i o n C o d e T a b l e Function Function Parameter Name Setting Range Parameter Name Setting Range...

  • Page 23: 6: Quick Application Guide

    Quick Application Guide EC630 F u n c t i o n C o d e T a b l e EC630 6.Quick application guide Function Parameter Name Setting Range Unit Default Code 6.1 Synchronous debugging instructions The meaning of the code is the same as that of the fault.

  • Page 24: Operation Panel Start And Stop Control

    Quick Application Guide Quick Application Guide EC630 EC630 6.2 Operation panel start and stop control Step Function Function Notes Code value 1. Press the "RUN" key on the operation panel to start the inverter; STEP2 Motor self-learning 2. Rotate the button to adjust the output frequency. Each time you press it, the fre- Set 1 to be completely self-learning and 2 to quency increases or decelerates by 0.1Hz;...

  • Page 25: Multi-Stage Speed Operation

    Quick Application Guide Quick Application Guide EC630 EC630 direction is controlled by S1 and S2 respectively. Wiring and parameter settings are as In the above figure, terminals S1 and S2 are set according to two-wire mode 1, S3~S6 follows: are used as the signal input terminals of multi segment speed frequency, from 4-bit binary number are formed in turn, and the multi segment speed frequency is selected Parameter according to the state combination value.when (S1, S2, S3)=(0, 1, 0) the number of...

  • Page 26: Restore Parameters To Factory Values

    7. Fault Alarm and Handling output frequency 7.1 Fault list EC630 series frequency converter faults are divided into three types: warning, fault P4-04 and error. They are in the form of code on the inverter panel in the form of codes.
  • Page 27 Fault Alarm and Handling Fault Alarm and Handling EC630 EC630 Fault code Fault name Cause of failure Countermeasures Fault code Fault name Cause of failure Countermeasures 1. The deceleration time is too Correctly set motor parameters 1. Extend deceleration time Output current exceeds the setting short or handle according to E.18...

  • Page 28: Daily Maintenance And Maintenance

    Daily Maintenance and Maintenance Daily Maintenance and Maintenance EC630 EC630 8 Daily Maintenance 8.3 Replacement of wearing parts Vulnerable parts of frequency converter mainly include cooling fan, electrolytic Due to the influence of ambient temperature, humidity, salt mist, dust and vibrat- capacitor, relay or contactor.

  • Page 29: Inverter Scrapped

    Appendix A Modbus Communication Instructions The raw materials used in the drive unit of the frequency converter are recyclable, EC630 series frequency converter provides RS485 communication interface, and adopts which can save energy and natural resources. Packaging materials are degradable and re- standard Modbus communication protocol for master-slave communication.

  • Page 30: Protocol Format

    Modbus Communication Instructions Modbus Communication Instructions EC630 EC630 Far, it is recommended to connect the terminal resistance of the equipment farthest A. 3 Protocol function code from the host (select the jumper on for the inverter terminal resistance); The inverter supports the following function codes: Note: RS485 industrial bus standard requires daisy chain connection between Function code Significance...
  • Page 31 Modbus Communication Instructions Modbus Communication Instructions EC630 EC630 *The operating frequency of register 51001 indicates that when using communication Register Explain control frequency converter, first set 4 communication settings in P3-19 ～ P3-21 re- Digital output terminal control bit ference value source, and then set the communication settings by writing register 51001. 0: DO1 output control bit The value range of this register is 0.00～P4-04, and the unit is 0.01.

  • Page 32: Error Message Response

    Modbus Communication Instructions Modbus Communication Instructions EC630 EC630 is 0.0, then it has 1 decimal place and the communication proportion value is 10. If the A. 7 Examples of use parameter is read as 20 by Modbus communication, the actual P2-03 value is 20 ÷ 10=2.0. If you want to set this parameter to 5.5, you need to enlarge it by 10 times and pro- A.
  • Page 33 Modbus Communication Instructions Modbus Communication Instructions EC630 EC630 Accept Data A. 7.2 Write a single hold register 06H for example 字段 说明 Control the frequency converter to run forward at section speed 1 Inverter address Command the register 51000 to realize the operation of the frequency converter at Function code section speed 1 Bytes of received data...

  • Page 34: Write Multiple Hold Registers 10H For Example

    Modbus Communication Instructions Modbus Communication Instructions EC630 EC630 A. 8 Commissioning A. 7.3 Write multiple hold registers 10H for example General users call the communication module or function provided by the equipment Start the frequency converter and set its operating frequency. The operating status development software when using PLC or touch screen and other devices to communicate of the frequency converter can be controlled through the register 51000, and the operat- with the inverter.

  • Page 35: Warranty Service

    User Name User Address User Contact Specification Number Di stributor Date of Contacts delivery ZHE JIANG EACN ELECTRONIC TECHNOLOGY CO.,LTD. Address:No.1 Jinhe Road, Qinshan Street, Haiyan County, Jiaxing City, Zhejiang Province . Website: www.eacon.cn E-mail: overseas@eacon.cc - 6 4 -...

This manual is also suitable for:

Ec6000 seriesEc6304d0g43a
